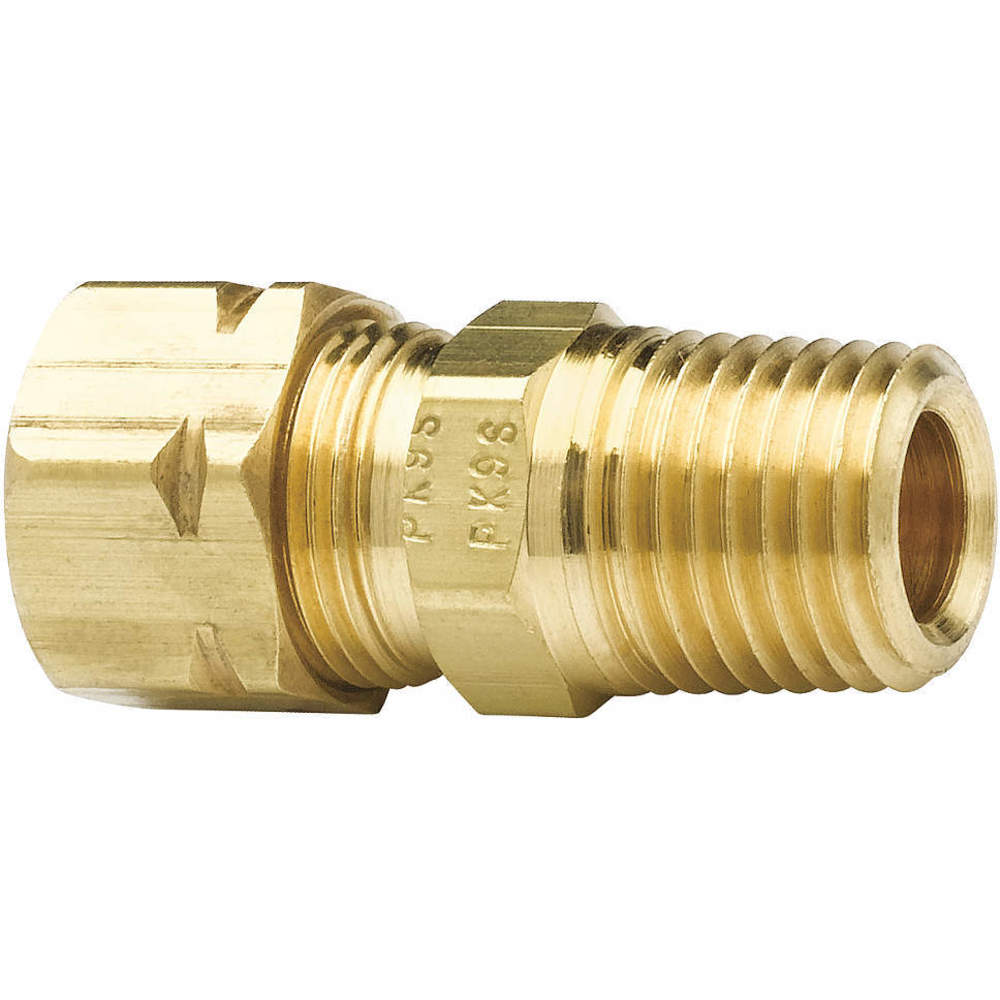

PARKER L68CA-6-4 Connector Low Lead Brass Compression x M 3/8in x 1/4in
Item: AE4HKTModel: L68CA-6-4Cross Ref: 5KNF4
7 In Stock
Ships within 2 days via
10.00% off
€11.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Connector |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Low Lead Brass |
| Compatible Tube Material | Aluminum, Copper, FEA, PFA, TFE, Thermoplastic |
| Compression Thread Size | 9/16"-24 |
| Connection Type | Compression x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 3/8" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/4" |
| Hex Size | 9/16" |
| Material | Brass , Low Lead Brass |
| Max. Operating Pressure | 1000 psi |
| Max. Pressure | 1000 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 65°F |
| Overall Length | 1 3/8" |
| Pipe Size | 1/4" |
| Series | Compression |
| Special Features | Captive Nut/Sleeve Assembly |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +250°F |
| Thread Size | 9/16"-24 |
| Thread Size B | 9/16"-24 |
| Tube Outside Dia. | 3/8" |
| Tube Size | 3/8" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.43 |
| Ship length (cm) | 3.49 |
| Ship width (cm) | 1.43 |
| HS code | 7419995010 |
| Country of Origin | US |
Product Details:
- Special Features: Captive Nut/Sleeve Assembly
Product Variants
| Product | Model | Tube Size | Max. Pressure | Max. Operating Pressure | Fitting Side A Tube Outer Diameter | Thread Size B | Material | Overall Length | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
L68CA-4-4 | 1/4" | 1400 psi | 1400 psi | 1/4" | 7/16"-24 | Brass | 1 5/16" | 1/4" | €11.64 |
