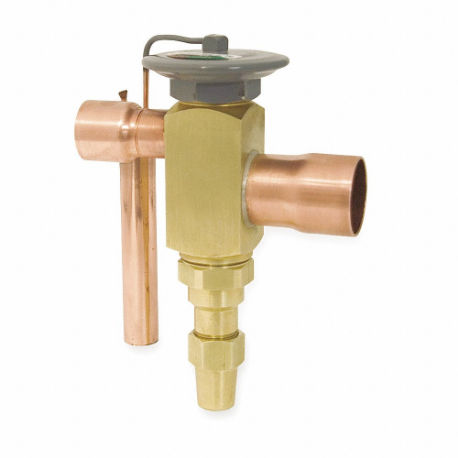

PARKER HXCAE-5-VX100H Thermostatic Expansion Valve, R-410A, Inlet/Outlet OEM Specific, 20 to 40 Deg F, External
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€317.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Thermostatic Expansion Valve |
| Adjustable Range | -0.4° to 15.8° |
| Application Temperature | Air Conditioning |
| Balanced Port Design | Balanced |
| Capillary Length | 30" |
| Connection Type | Inlet/Outlet OEM Specific |
| Connector Inlet Size | 3/8" |
| Connector Outlet | 5/8" |
| Control | Bi-Flow Control |
| Control Direction | Bi Directional |
| Element Material | Stainless Steel |
| Element Type | Permanent |
| Equalizer Connection Size | 1/4" |
| Equalizer Connection Type | SAE Flare |
| Equalizer Type | External |
| Evaporator Temp. Range | +20°F to +40°F |
| Evaporator Temperature - Maximum | 40°F |
| Evaporator Temperature - Minimum | 20°F |
| For Capacity - Maximum | 8 ton. |
| For Capacity - Minimum | 1.5 ton. |
| For Refrigerant Type | R-22, R-407A, R-407C, R-407F |
| Includes | Bulb Strap, Mounting Screw And Nut |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 3/8" |
| Liquid Subcooling Temp. | Variable |
| Maximum Operating Pressure | 700 psi |
| Nominal Capacity | 5 ton. |
| Not For Refrigerant Type | R-410A |
| Not For Use With | R-410A |
| Operating Temperature - Maximum | 190°F |
| Operating Temperature - Minimum | -40°F |
| Outlet Connection Gender | Female |
| Outlet Connection Size | 1/2" |
| Parker Model Number | HXCAE-5-VX100H |
| Product Type | Thermostatic Expansion Valve |
| Reducing Flare Nut Size | 1/4" |
| Refrigerant | R-410A |
| Series | HX/HXC Series |
| Superheat | Non Adjustable |
| Superheat Adjustment | Field Adjustable |
| Type | HX Valve |
| Valve Body Material | Brass |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Evaporator Temp. Range | Capillary Length | Equalizer Type | Nominal Capacity | Superheat | Connector Inlet Size | Type | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CAAVX35 | -40°F to 10°F | 60" | - | - | Externally Adjustable | - | Adjustable | SAE Flare Angle | €275.72 | |
|
CAAVW | -40°F to 60°F | 5 ft. | Internal | 0.5 ton. | Externally Adjustable | 1/4" | Adjustable | SAE Flare Angle | €266.05 | |
 |
CEBVX100 | 10°F to 60°F | 5 ft. | External | 0.5 ton. | Externally Adjustable | 3/8" | Adjustable | SAE Flare Angle | €247.67 | |
 |
EBSE8VX100 | 10°F to 60°F | 5 ft. | External | 8 ton. | Externally Adjustable | 5/8" | Adjustable | Straight Through Solder | €412.90 | |
|
EBSE11VX100 | 10°F to 60°F | 5 ft. | External | 11 ton. | Externally Adjustable | 5/8" | Adjustable | Straight Through Solder | €430.61 | |
|
EBSE15VX100 | 10°F to 60°F | 5 ft. | External | 15 ton. | Externally Adjustable | 7/8" | Adjustable | Straight Through Solder | €581.32 | |
|
C-AA-JW | -40°F to 60°F | 5 ft. | Internal | 0.3 ton. | Externally Adjustable | 1/4" | Adjustable | SAE Flare Angle | €266.05 |
