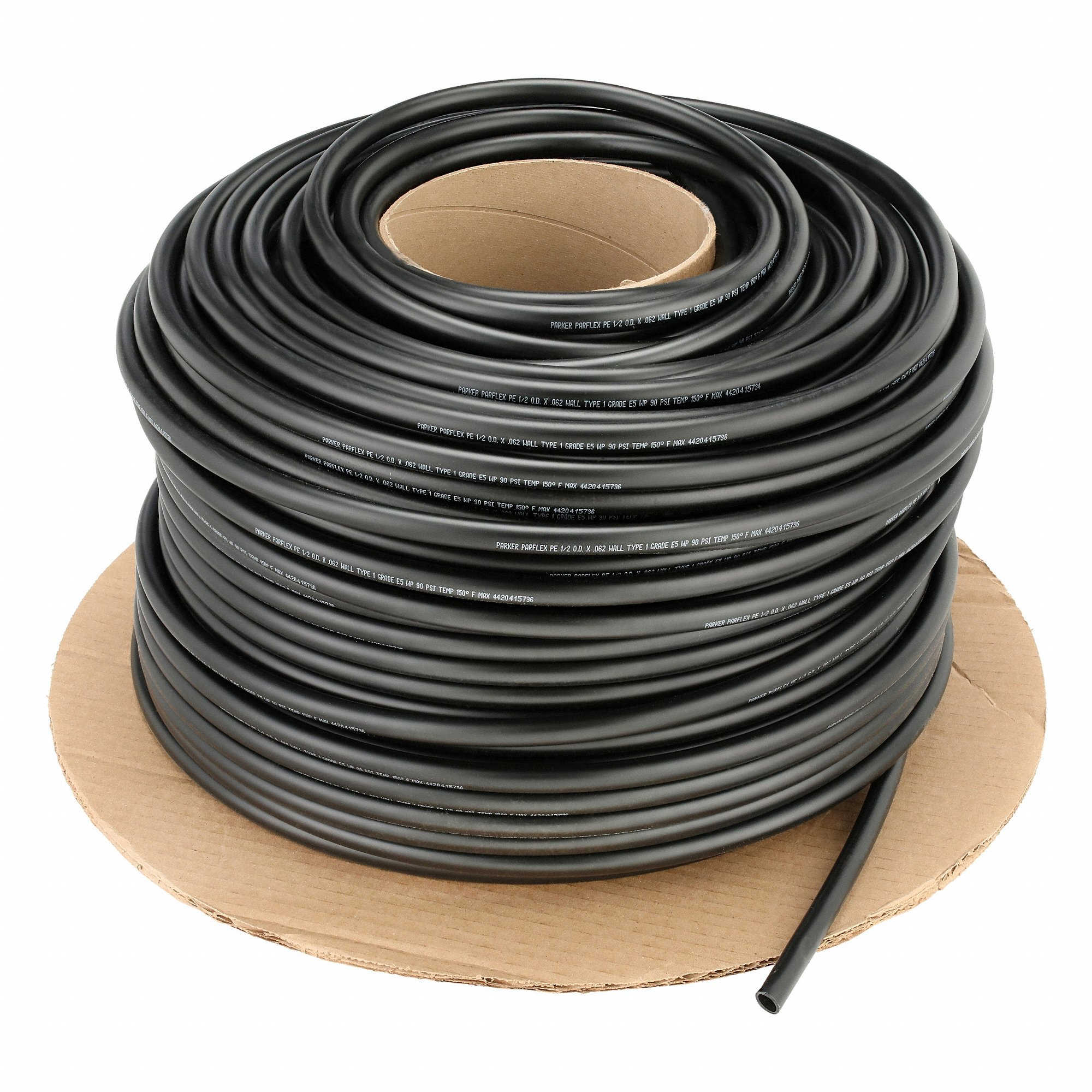

PARKER EB-86-0500 Tubing, Polyethylene, Black, 1/2 Inch Outside Dia
Get it by Wednesday, Aug 19
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€765.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tubing |
| Application | Pneumatic |
| Autoclavable | No |
| Bend Radius | 2 1/2" |
| Burst Pressure | 360 psi |
| Clarity | Opaque |
| Coil Weight | 17 lbs. |
| Color | Black |
| Compatible Tube Wall Thickness | 1/16" |
| Distinct Properties | UV Light Resistant |
| Features | Made From 100% Virgin Resin Material |
| Fitting Compatibility | Compression, Push to Connect |
| Flexibility | Flexible |
| For Environment | Chemical |
| For Fluid Type | Air, Potable Water, Water |
| For Location | Indoor, Outdoor |
| For Potable Water Use | Yes |
| Industry Application | Pneumatics |
| Inside Dia. | 0.375" , 3/8" |
| Jacket Color | No Jacket |
| Length | 500 ft. |
| Material | Polyethylene |
| Material Trade Name | Not Applicable |
| Max. Operating Pressure | 90 psi @ 73掳F |
| Max. Operating Temp. | 150°F |
| Max. Pressure | 90 psi , Less than 100 psi |
| Min. Operating Temp. | -80°F |
| Outside Dia. | 1/2" |
| Overall Length | 500 ft. |
| Reinforcement | Non Reinforced |
| Resistance Properties | Crack Resistant |
| Series | E Series |
| Stripe Color | No Stripe |
| System Of Measurement | Imperial |
| Tube Form | Coil |
| Wall Thickness | 0.062" |
| Weight Per Foot | 0.034 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 9.26 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Color | Wall Thickness | Max. Operating Pressure | Burst Pressure | Clarity | Min. Operating Temp. | Hardness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NBR-8-062-0050 | Nylon | Black | 0.062" | 375 psi @ 73°F | 1500 psi | Opaque | -60°F | Shore D 72 | €296.05 | |
 |
NNR-8-062-0050 | Nylon | Beige | 0.062" | 375 psi @ 73°F | 1500 psi | Semi Clear | -60°F | Shore D 72 | €313.59 | |
 |
104-0250031-NT-50 | Teflon | Natural | 0.031" | 230 psi @ 73°F | 920 psi | Semi Clear | -100°F | Shore D 55 | €337.86 | |
|
104-0375062-NT-50 | Teflon | Natural | 0.062" | 290 psi @ 73°F | 1160 psi | Semi Clear | -100°F | Shore D 55 | €732.39 | |
 |
95FR-8-WHT-0250 | Polyether Polyurethane | White | 0.09" | 220 psi @ 73?F | 660 psi | Clear | -40°F | Shore A 95 | €1,458.63 | |
 |
95FR-8-GRN-0250 | Polyether Polyurethane | Green | 0.09" | 220 psi @ 73?F | 660 psi | Opaque | -40°F | Shore A 95 | €1,458.63 | |
 |
95FR-8-BLK-0250 | Polyether Polyurethane | Black | 0.09" | 220 psi @ 73?F | 660 psi | Opaque | -40°F | Shore A 95 | €1,458.63 |
