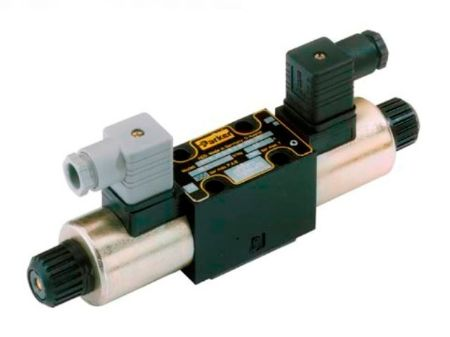

PARKER D1VW008CNYG5 Solenoid Valve, 4 Way, 3-Position 4/3 Directional Control Hydraulic
Get it by Monday, Aug 24
€921.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Ambient Air Temp. For Operation | -25°C to +60°C |
| Body Material | Nitrile |
| Connection Type | NFPA Pattern D03 Plug-In Wiring Chamber With Indic. Light |
| Control Voltage (ac) | 110/120V AC (50/60 Hz) |
| Degree Of Protection | IP67 NEMA 4 |
| Design | Manual Override Circuit Diagram "008C" Class F Coil For Oil Media |
| Flow Rate | 21 GPM |
| Flow Regulation Type | Two Way |
| Function | Hydraulic Direct-Acting Double Solenoid Valve |
| Input Voltage | 120/60V |
| Main Function | Valve (Electrically Actuated) |
| Material | Ductile Iron Body NBR Seal |
| Max. Flow Rate | 6 GPM |
| Max. Operating Pressure | 5000 psi |
| Max. Working Pressure | 5000 psi |
| Media Temp. | -25°C to +70°C |
| Mounting Mode | Mounting On Sub Plate |
| No. Of Solenoids | 2 |
| Overall Height (decimal Inch) | 3 18/25" |
| Overall Length | 8.3" |
| Overall Width | 1.81" |
| Power Consumption | 30 W |
| Tank Pressure | 1500 psi |
| Valve Function | 4-Way 3-Positions (4/3) Directional Control Mech. Spring Center |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
