Motor Mounting Brackets
Filter
A
B
C
D
E
F
G
H
I| Style | Model | For Motor Dia. | Mounting | Compatible Motor Dia. | Mounting Type | Fits Blower Wheel Dia. | Dia. | For Nema Frame | Construction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C5954-1TG | 3 1/2" | (4) #8-36 Hex Head Screws | 3 1/2" | Hex Head Screws | 10" | - | - | - | €3.49 | |
| A | C-5954-6TG | 3 1/2" | (4) #8-36 Hex Head Screws | 3 1/2" | Hex Head Screws | 11.5" to 12" | - | - | - | €4.10 | |
| A | C5954-2TG | 3 1/2" | (4) #8-36 Hex Head Screws | 3 1/2" | Hex Head Screws | 10" to 10.5" | - | - | - | €3.49 | |
| A | C5954-3TG | 3 1/2" | (4) #8-36 Hex Head Screws | 3 1/2" | Hex Head Screws | 8" to 8.5" | - | - | - | €3.24 | |
| A | C5954-4TG | 3 1/2" | (4) #8-36 Hex Head Screws | 3 1/2" | Hex Head Screws | 7.5" to 8" | - | - | - | €6.41 | |
| B | 4UFA3 | 3 1/3" | Screw | 3 1/3" | - | - | - | Non Standard | Steel | €43.87 | |
| C | 4UFA4 | 3 1/3" | Screw | 3 1/3" | Screw | - | - | Non Standard | Steel | €16.84 | |
| D | 12N970 | 5 5/8" | Screw | - | - | - | 5 5/8" | 48 | - | €48.94 | |
| E | 2MEV4 | 5 5/8" | Screw | 5 5/8" | - | - | 10" | NEMA 48 | Anodized Steel Rod | €34.99 | |
| F | 2MEV6 | 5 5/8" | Screw | 5 5/8" | - | - | - | NEMA 48 | Galvanized Stamped Steel | €22.88 | |
| G | 2MEY6 | 5 5/8" | Screw | 5 5/8" | - | - | - | NEMA 48 | Painted Stamped Steel | €45.01 | |
| E | 2MEV2 | 5" | Screw | 5" | - | - | 9" | NEMA 42 | Anodized Steel Rod | €39.07 | |
| G | 2MEY5 | 5" | Screw | 5" | - | - | - | NEMA 42 | Painted Stamped Steel | €43.60 | |

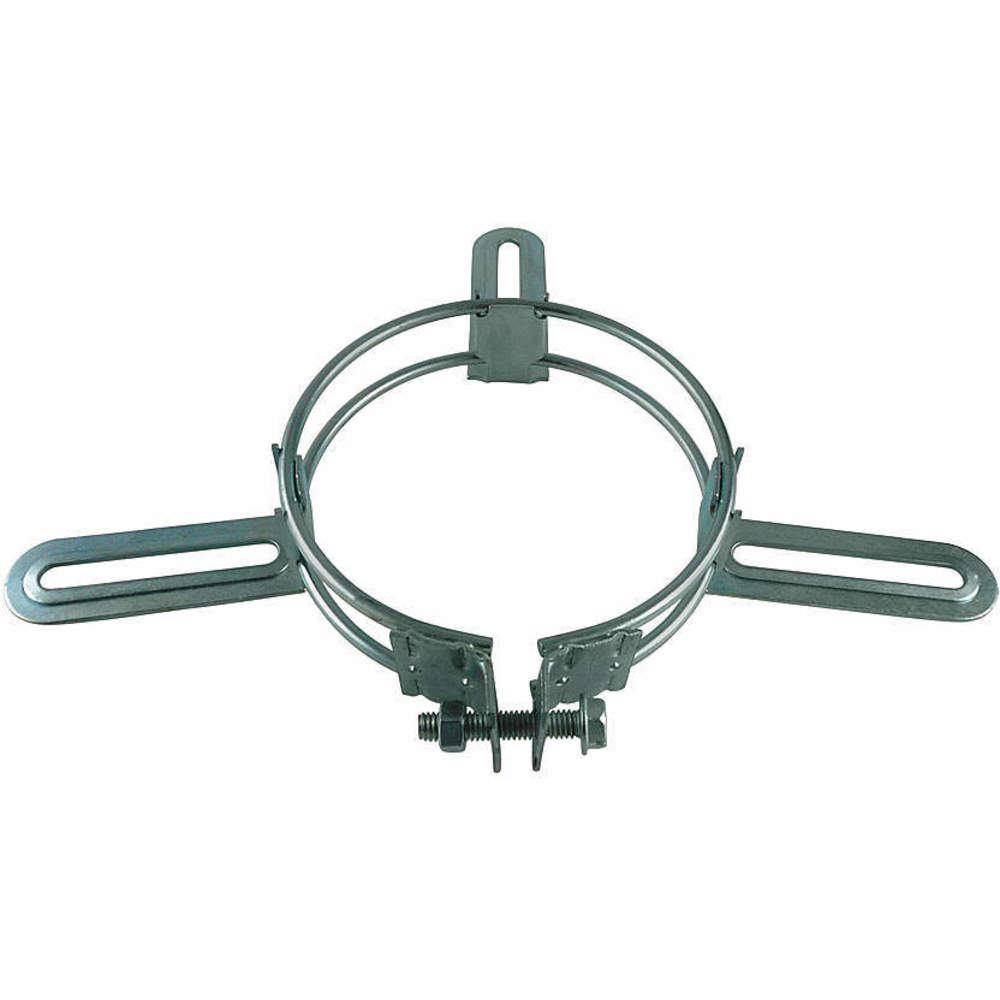

| H | 4UEY9 | 5" | Screw | - | - | - | 5" | NEMA 42 | Steel | €52.80 | |
| I | 2MEY7 | 5" to 5 5/8" | Screw | 5" to 5 5/8" | - | - | - | NEMA 42, NEMA 48 | Painted Stamped Steel | €44.19 |
Motor Mounting Brackets
Dayton motor mounting brackets are ideal for installing and maintaining the blower motors within the HVAC systems. The motors come with NEMA rated frames and have a shape that determines the applicable mounting bracket for ease in installation and secure hold. These units have anodised steel rod / galvanised or painted stamped steel construction for excellent durability, rust and corrosion resistance. Choose from a wide range of these mounting brackets, available in 9 and 10 inch diameters on Raptor Supplies..
