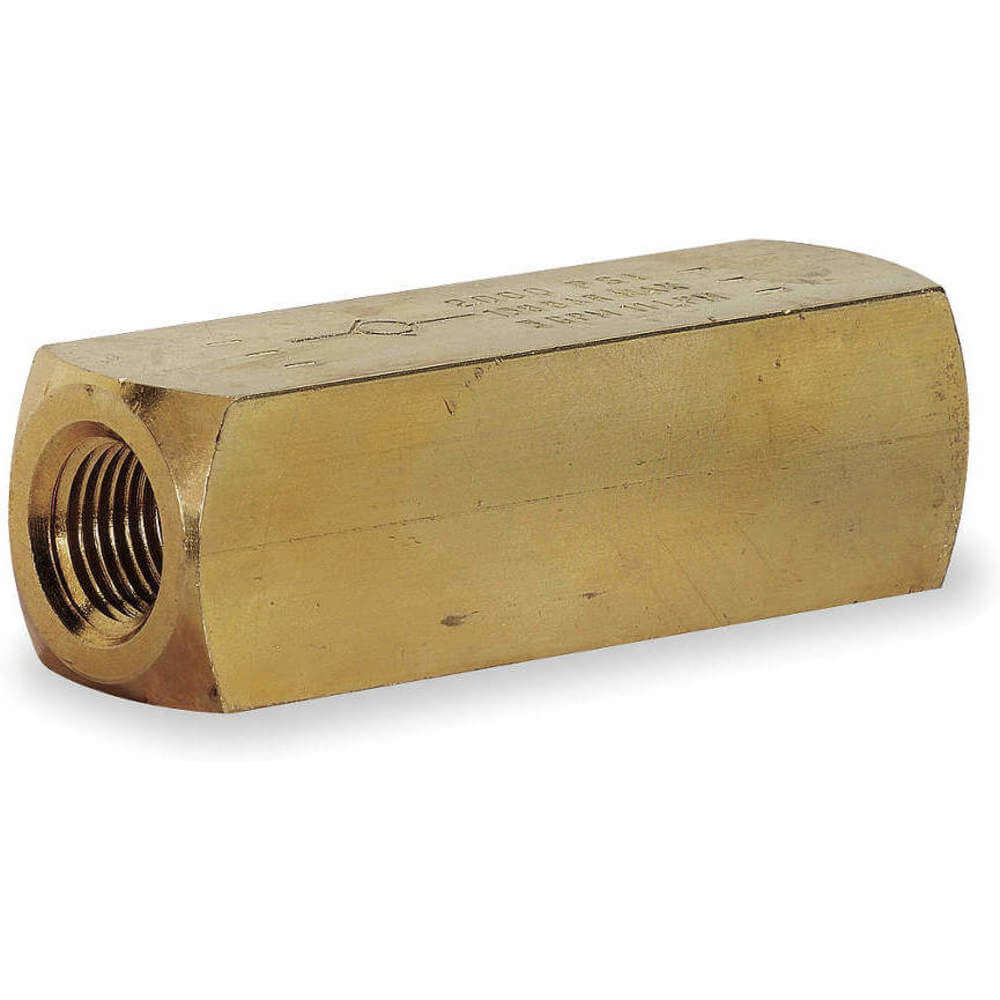

PARKER C400B Check Valve, 1-1/4 Inch Size, In-Line
Item: AA8TXJModel: C400BCross Ref: 1A858
7 In Stock
Ships within 2 days via
10.00% off
€68.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| Actuation Mechanism | Manual |
| Body Finish | Black Oxide |
| Body Material | Brass |
| Body Material (hydraulic Valves) | Brass |
| Coefficient Of Volume | 1.56 |
| Configuration Type | Female to Female |
| Connection Type | Female x Female |
| Control Direction | One-Way With Reverse Flow |
| Cracking Pressure | 5 psi |
| Effective Orifice Area - Control Flow (in2) | 0.068 sq. in. |
| Flow Range | 5 GPM |
| Fluid Service | Air, Water |
| For Media | Air, Water |
| Height | 0.81" |
| Includes Seals | Seals Included |
| Inlet Connection Size | 1/4" |
| Inlet Connection Type | NPT |
| Length | 2.63" |
| Material | Brass |
| Material Poppet/stem Seals | Nitrile |
| Max. Flow Rate | 5 GPM |
| Max. Operating Temp. | 121 Deg C |
| Max. Operating Temp. | 121°C |
| Max. Pressure | 2000 psi |
| Max. Working Pressure | 2000 psi |
| Min. Operating Temp. | -40°C |
| Mounting | Inline |
| Operating Temp. Range | -40°F to +250°F |
| Operating Temperature - Maximum | 250°F |
| Operating Temperature - Minimum | -40°F |
| Outlet Connection Size | 1/4" |
| Outlet Connection Type | NPT |
| Overall Height | 0.81" |
| Overall Length | 2.63" |
| Overall Width | 0.81" |
| Poppet Type | Soft |
| Port | 1/4" |
| Port-to-port Length | 2.63" |
| Reverse Free Flow | Reverse Free Flow |
| Seal Material | Nitrile |
| Series | C Series |
| Thread 1 Size | 1/4" |
| Thread 1 Type | NPT |
| Type | Brass |
| Valve Control | Directional Control |
| Valve Material | Brass |
| Valve Type | Check Valve |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.06 |
| Ship length (cm) | 6.68 |
| Ship width (cm) | 2.06 |
| HS code | 8481309000 |
| Country of Origin | US |
Product Details:
- Hydraulic check valve designed to allow free flow of fluid in one direction while stopping the flow in the other direction & vice-versa
- Features soft-seal metal poppet to withstand cracking pressure
- NPT ports for providing an effective seal to tubes & pipes working with hydraulic fluids
Product Variants
| Model | Max. Pressure | Material | Max. Flow Rate | Max. Operating Temp. | Port | Valve Material | Type | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C400S | 5000 psi | Steel | 5 GPM | 121°C | 1/4" | Steel | Steel | Steel | €99.95 | |
| C620S | 5000 psi | Steel | 5 GPM | 121°C | 6" | Steel | - | - | €93.49 | RFQ
|
| C2000S | 3000 psi | Steel | 70 GPM | 205°C | 1 1/4" | Steel | - | - | €392.86 | RFQ
|
| C600B | - | Brass | 8 GPM | 121°C | 3/8" | Brass | Brass | Brass | €116.35 |
