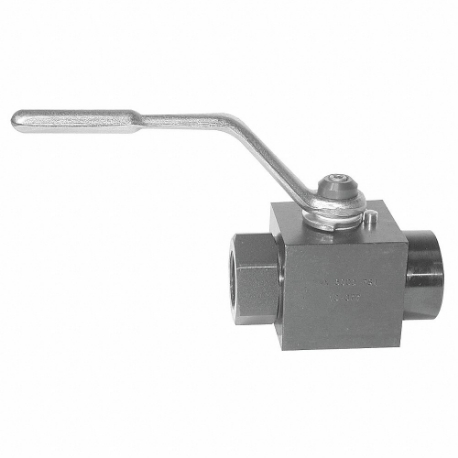

PARKER BVHP16NSS1NA Hydraulic Ball Valve, 6000 PSI Max. Pressure, 1 Inch NPT Port Size, Lockable
Item: CT7GFYModel: BVHP16NSS1NACross Ref: 6PAD1
7 In Stock
Ships within 2 days via
10.00% off
€452.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Ball Valve |
| Actuation Mechanism | Manual |
| Adjustment Method | Handle |
| Ball Finish | Chrome Coated |
| Ball Material | Steel |
| Ball Seal Material | Nitrile |
| Body | Carbon Steel |
| Body Finish | Zinc Coated |
| Center Position | Not Applicable |
| Control Direction | Two-Way |
| Fluid Service | Oil, Water |
| For Media | Oil, Water |
| Handle Finish | Zinc Plated |
| Handle Length | 6.73" |
| Handle Lockability | Lockable |
| Handle Material | Steel |
| Handle Type | Lockable |
| Handle Type - Hydraulic Ball Valves | Lockable |
| Height | 4.98" |
| Includes Seals | Seals Included |
| Length | 4.51" |
| Max. Pressure | 6000 psi |
| Maximum Pressure | 7250 psi |
| Mounting | Inline |
| Operating Temperature - Maximum | 100°F |
| Operating Temperature - Minimum | -20°F |
| Overall Height | 5.47" |
| Overall Length | 4.45" |
| Overall Width | 2 19/25" |
| Port Connection Gender | Female |
| Port Connection Size | 1" |
| Port Connection Type | NPT |
| Port Type | NPT |
| Port-to-port Length | 4.45" |
| Return Mechanism | Not Applicable |
| Series | BV Series |
| Shaft Seal Material | Nitrile |
| Type | Lockable Handle |
| Valve Control | Directional Control, Flow Control |
| Valve Type | Ball |
| Valve Ways And Positions | 2-Way/2-Position |
| Width | 2 1/2" |
Shipping Info:
| Ship weight (kg) | 3.23 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 11.46 |
| Ship width (cm) | 12.65 |
| Country of Origin | US |
Product Variants
| Model | Max. Pressure | Handle Type | Type | Height | Overall Height | Overall Width | Body Material | Port Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BVHP12SSS1N | 6000 psi | Standard | Standard Handle | 4.73" | 4.96" | 1.93" | Steel | - | €337.13 | |
| BVHP12SSS1NA | 6000 psi | Lockable | Lockable Handle | 4.73" | 4.96" | 2 1/4" | Steel | - | €420.94 | |
| BVHP16SSS1N | 6000 psi | Standard | Standard Handle | 4.98" | 5.47" | 2 19/25" | Steel | - | €393.27 | |
| BVHP04SSS1N | 6000 psi | Standard | Standard Handle | 2.99" | 3.31" | 1.02" | Steel | - | €168.31 | |
| BVHP06SSS1N | 6000 psi | Standard | Standard Handle | 3 3/25" | 3.46" | 1.26" | Steel | - | €189.85 | |
| BVHP08SSS1N | 6000 psi | Standard | Standard Handle | 3 1/4" | 3.58" | 1.38" | Steel | - | €219.31 | |

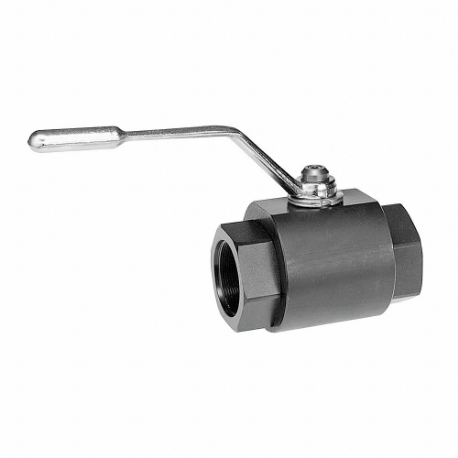

| BVHP04NSS1NA | 6000 psi | Lockable | Lockable Handle | 2.99" | 3.31" | 1.02" | Steel | NPT | €255.42 |
