PARKER B733000XXA Valve Air Pilot 4 Way 1/2 Inch Port
Item: AC9ALNModel: B733000XXACross Ref: 3FDT3
7 In Stock
Ships within 2 days via
5.00% off
€545.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Pilot Valve |
| Actuator Type | Remote Pilot |
| Actuator/return | Air Return, Remote Pilot |
| Application | Assembly Lines, Conveyance, Industrial, Packaging |
| Body Material | Aluminum |
| Body Style | Inline |
| Cfm | 5.9 CFM |
| Coefficient Of Volume | 1.4 |
| Cv | 5.9 |
| Fail Position | Closed |
| For Media | Air |
| Height | 2 17/25" |
| Length | 7.79" |
| Lubrication | Lubrication Not Required |
| Max. Flow Rate | 5.9 SCFM |
| Max. Operating Pressure | 145 psi |
| Max. Operating Temp. | 120°F |
| Max. Temp. | 5°F to 120°F |
| Min. Operating Pressure | 20 psi |
| Min. Operating Temp. | 5°F |
| No. Of Pilots | 1 |
| No. Of Positions | 2 |
| No. Of Ways | 4 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Offset Return Type | Air Return |
| Operating Temp. | -15°C to +49°C |
| Operator Type | Single |
| Overall Height | 1 5/8" |
| Overall Length | 7 13/16" |
| Overall Width | 1 5/8" |
| Override | Non Locking |
| Pilot Npt Port Size | 0.125" |
| Pilot Port Connection Size | 1/2" |
| Pilot Port Connection Type | NPT |
| Pilot Port Size Npt (in.) | 1/8 |
| Pilot Pressure | 35 |
| Pilot Pressure | 35 psi |
| Pneumatic Valve Type | Inline Valve |
| Port Inch/bsp | NPT |
| Port Size | 3/8" |
| Port Type | NPT |
| Product Type | Pilot Air Control Valve |
| Return Action | Pilot Return |
| Seal Material | Nitrile |
| Series | B Series |
| Supply Pressure | 35 psig to 145 psig |
| Temp. | +5°F to +120°F |
| Type | Inline, Single |
| Uses | General Pneumatics Applications |
| Vacuum | External Pilot , Vacuum Operable |
| Vacuum | External Pilot |
| Valve Passages | 4 Way |
| Valve Port Connection Size | 1/2" |
| Valve Port Connection Type | NPT |
| Valve Positions | 2 Position |
| Valve Type | Spool |
| Width | 1.65" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 4.19 |
| Ship length (cm) | 19.76 |
| Ship width (cm) | 6.83 |
| HS code | 8481200080 |
| Country of Origin | US |
Product Variants
| Model | Height | Type | Port Size | Supply Pressure | Actuator Type | Vacuum | Operating Temp. | Operator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| B330000XXC | 1.13" | Inline, Single | 1/8" | 20 psig to 145 psig | Remote Pilot | External Pilot | -15°C to +49°C | Single | €205.73 | |
| B531000XXC | 1.89" | Inline, Single | 1/8" | 20 psig to 145 psig | Remote Pilot | External Pilot | -15°C to +49°C | Single | €252.88 | |
| B632000XXA | 1.89" | Inline, Single | 1/4" | 20 psig to 145 psig | Remote Pilot | External Pilot | -15°C to +49°C | Single | €358.88 | |
| B834000XXA | 2 17/25" | Inline, Single | 3/8" | 35 psig to 145 psig | Remote Pilot | External Pilot | -15°C to +49°C | Single | €644.79 | |

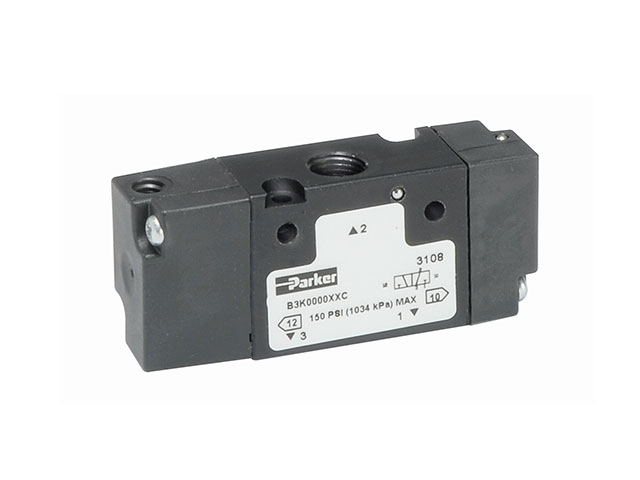

| B532000XXC | 1 7/8" | 4 Way Body Ported Valve | 1/4" | 20 psig to 145 psig | Single Air Pilot | External Pilot | 5°F to 120°F | Air Piloted | €165.20 |
