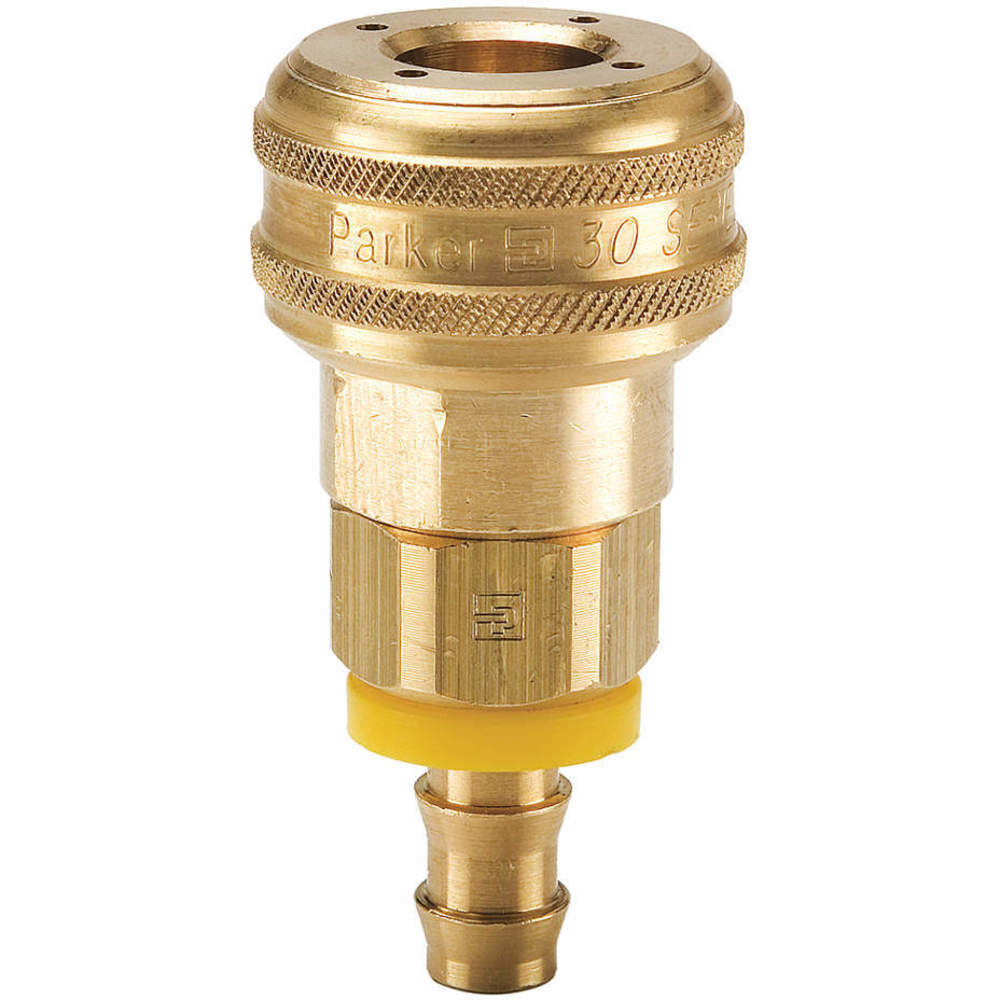

PARKER B34-5BP Quick Coupler, 3/8 Inch Size, 300 Psi, Brass
Item: AC4VVCModel: B34-5BPCross Ref: 30N202
7 In Stock
Ships within 2 days via
10.00% off
€87.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Application | Pneumatic |
| Barb Size | 3/8" |
| Barbed | Yes |
| Body Material | Brass |
| Body Size | 3/8" |
| Configuration Type | Push Lok Hose Barb |
| Connection Type | Hose Barb |
| Coupler/nipple/shell | Coupler |
| Coupling Component | Socket |
| Coupling Locking Type | Push To Connect |
| Fitting Type | Male Hose Barb |
| For Hose I.d. | 3/8" |
| Hose Connection | Push On |
| Hose Connection Type | Push On |
| Hose Fitting Gender | Male |
| Hose Fitting Size | 3/8" |
| Hose Inside Dia. | 3/8" |
| Includes Valve | Yes |
| Interchange Type | Industrial |
| Length | 2.82" |
| Lock Type | Push To Connect |
| Material | Brass |
| Max. Flow Rate | 1415.84 LPM |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Outside Dia. | 1 3/8" |
| Max. Pressure | 300 psi |
| Max. Pressure Range | 250 psi to 499 psi |
| Max. Working Pressure | 300 psi |
| Max. Working Pressure @ 70 F | 300 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 2 13/16" |
| Quick Connect Air Coupling Material | Brass |
| Quick Connect Air Coupling Seals | Nitrile |
| Quick Coupler Type | Pneumatic Push to Connect |
| Seal | Nitrile |
| Seal Material | Nitrile |
| Seals | Nitrile |
| Seals - Quick Connect Air Couplings | Nitrile |
| Series | 30 Series |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
| Thread Size | Not Available |
| Valve Type | Tubular |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.49 |
| Ship length (cm) | 7.14 |
| Ship width (cm) | 3.56 |
| HS code | 8481801095 |
| Country of Origin | US |
Product Variants
| Model | Coupling Component | Hose Fitting Gender | Connection Type | Body Size | Hose Fitting Size | Coupling Locking Type | Interchange Type | Barb Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| B30-3BP | Socket | Male | Push Hose Barb | 1/4" | 1/4" | Push To Connect | Industrial | 1/4" | €62.10 | |
| B30-5BP | Socket | Male | Hose Barb | 1/4" | 3/8" | Push To Connect | Industrial | 3/8" | €55.27 | |
| B34-5BPN | Socket | Male | Hose Barb | 3/8" | 3/8" | Push-To-Connect | Industrial | 3/8" | €95.31 | |
| B36-6BP | Coupler | Not Available | Push Lok Hose Barbed | 1/2" | 1/2" | Pawls | Industrial Interchange | - | €78.11 |
