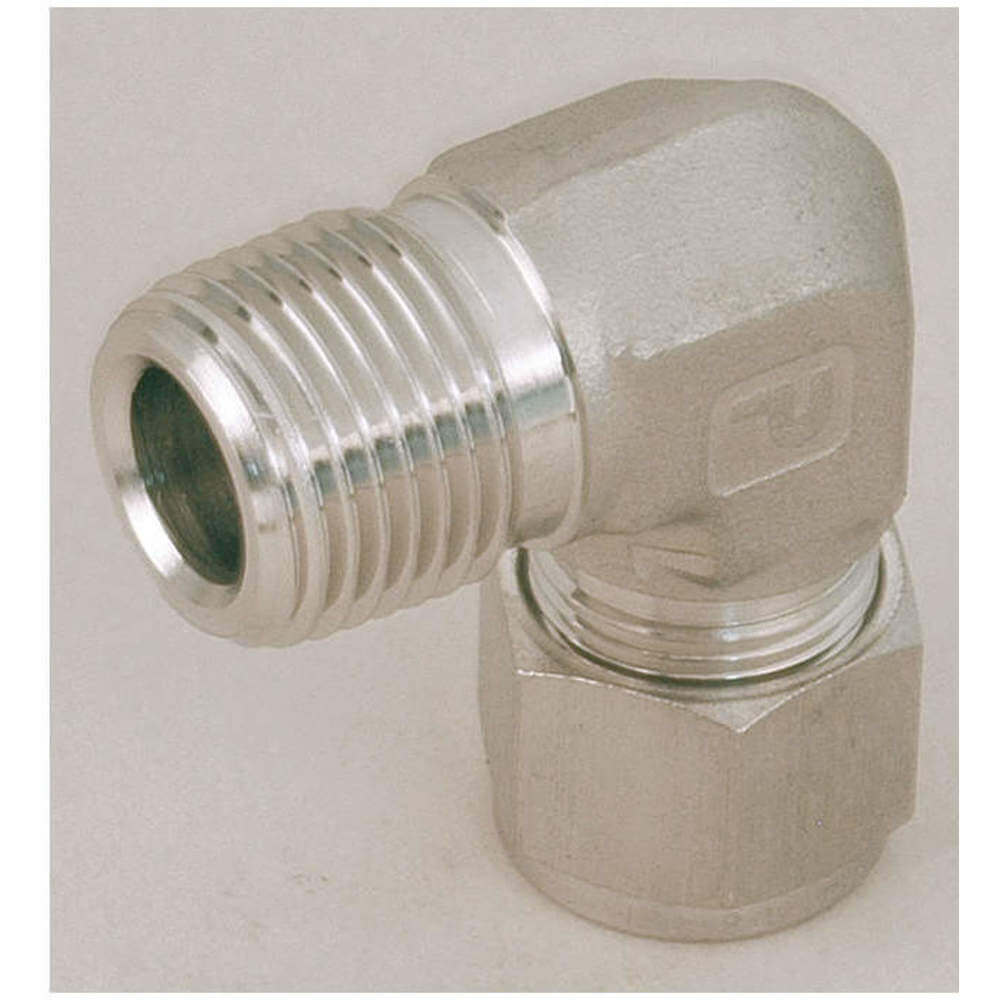

PARKER 8MSEL8N-316 Compression Fitting, Two Ferrule Compression, 1/2 Inch Size, SS
Item: AB2ZPTModel: 8MSEL8N-316Cross Ref: 1PZE4
7 In Stock
Stainless Steel
6700 psi
1/2"
Ships within 2 days via
5.00% off
€145.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Compressed Natural Gas, Fuels, Gases, Hydrogen, Liquids, Oils, Petroleum Oil, Steam |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Stainless Steel |
| Compatible Fitting Brands | A LOK |
| Compatible Tube Material | Stainless Steel |
| Compression Thread Size | 3/4"-20 |
| Configuration Sub Type | Male Elbow Flareless, NPT |
| Configuration Type | 90° Elbow |
| Connection Size | 1/2" |
| Connection Type | Two Ferrule |
| End 2 Size | 1/2" |
| End 2 Type | NPT |
| Ferrule Type | Double |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outside Dia. | 1/2" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/2" |
| Grade | Grade 316 |
| Hex Size | 13/16" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 6700 psi |
| Max. Operating Temp. | 605 Deg C |
| Max. Operating Temp. | 605°C , 649°C |
| Max. Pressure | 5800 psi |
| Min. Operating Temp. | -255°C , 255°C |
| Overall Length | 1 7/16" |
| Pipe Size | 1/2" |
| Product Datasheet | parker-8msel8n-316.pdf |
| Resistance Properties | Corrosion Resistant, Gall Resistant |
| Series | A LOK Series |
| Shape | NPT Male Elbow |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Style | Tube To Male Pipe |
| System Of Measurement | Imperial |
| Temp. | -425°F to +1200°F |
| Thread Size | 3/4"-20 |
| Thread Size A | 3/4"-20 |
| Tube Fitting/adapter Type | Bite Type, A Lok Double Ferrule Flareless |
| Tube Outside Dia. | 1/2" |
| Tube Size | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.06 |
| Ship length (cm) | 3.65 |
| Ship width (cm) | 2.06 |
| HS code | 7307225000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pipe Size | Finish | Price | |
|---|---|---|---|---|---|
|
4MSEL2N-316 | 1/8" | - | €66.69 | |
|
4MSEL4N-316 | 1/4" | - | €66.56 | |
|
6MSEL4N-316 | 1/4" | - | €76.92 | |
|
6MSEL6N-316 | 3/8" | - | €101.87 | |
 |
6MSEL4N-S | 1/4" | Zinc Plated | €65.05 | |
 |
8MSEL8N-S | 1/2" | Zinc Plated | €108.49 | |
|
2MSEL2N-316 | 1/8" | - | €79.46 |
