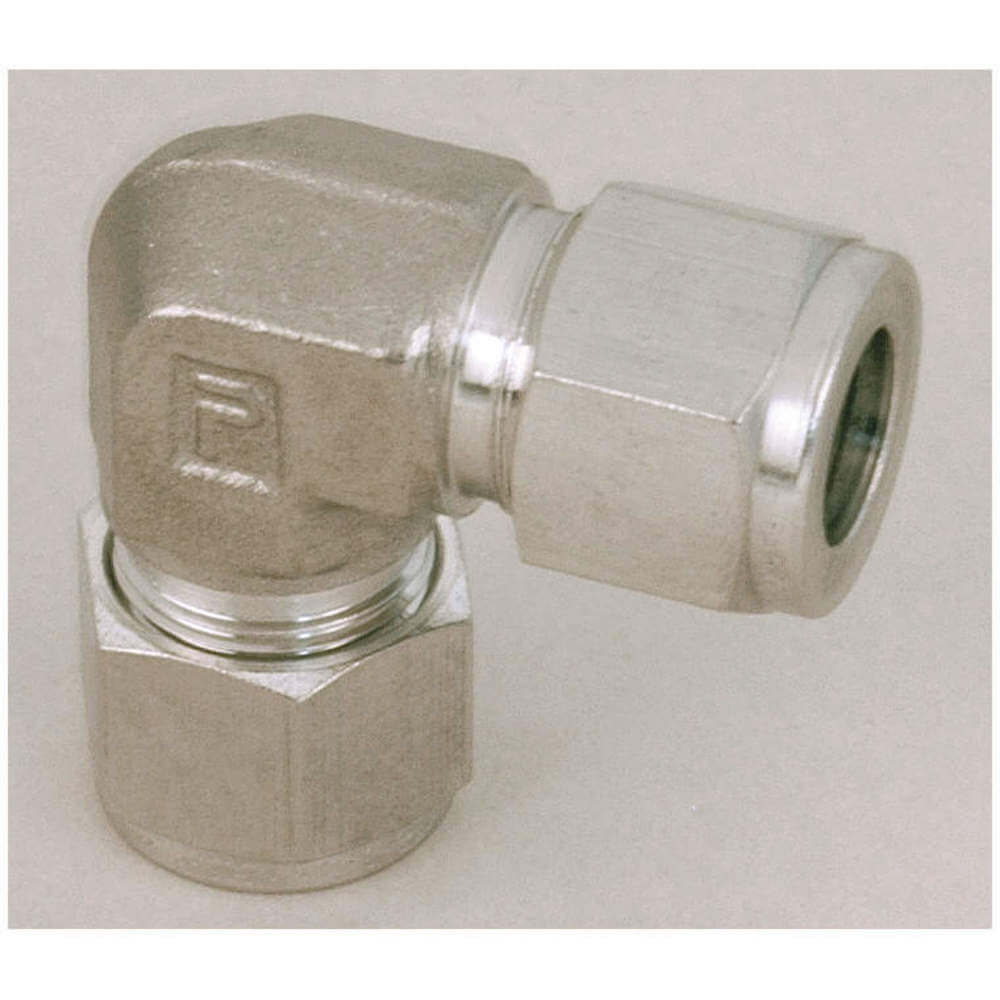

PARKER 8EE8-S Elbow 90 Carbon Steel Compression 1/2in
Item: AB4CKGModel: 8EE8-SCross Ref: 1WVX7
7 In Stock
Ships within 2 days via
10.00% off
€67.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Elbow, 90 Degrees |
| Application | Gases, Liquids |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Carbon Steel |
| Connection Type | Compression |
| Finish | Zinc Plated |
| Finish/coating | Zinc Plated |
| Fits Brand | A-Lok |
| Fitting Material | Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/2" |
| Hex Size | 13/16" |
| Material | Carbon Steel , Steel |
| Max. Operating Pressure | 6200 psi |
| Max. Pressure | 6200 psi |
| Maximum Operating Temperature | 800°F |
| Minimum Operating Temperature | 20°F |
| Overall Length | 1 7/16" |
| Product Datasheet | parker-8ee8-s.pdf |
| Resistance Properties | Corrosion Resistant, Gall Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +800°F |
| Thread Size A | 3/4"-20 |
| Thread Size B | 3/4"-20 |
| Tube Size | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.06 |
| Ship length (cm) | 3.65 |
| Ship width (cm) | 2.06 |
| HS code | 7307929000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Hex Size | Body Material | Connection Type | Max. Pressure | Max. Operating Pressure | Temp. Range | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4EE4-316 | 1/4" | 1/2" | Stainless Steel | Two Ferrule | - | - | -425°F to +1200°F | Stainless Steel | €70.70 | |
|
6EE6-316 | 3/8" | 5/8" | Stainless Steel | Two Ferrule | - | - | -425°F to +1200°F | Stainless Steel | €94.71 | |
|
8EE8-316 | 1/2" | 13/16" | Stainless Steel | Two Ferrule | - | - | -425°F to +1200°F | Stainless Steel | €145.26 | |
 |
4EE4-B | 1/4" | 1/2" | Brass | - | - | - | -40°F to +400°F | Brass | €39.74 | |
|
6EE6-B | 3/8" | 5/8" | Brass | - | - | - | -40°F to +400°F | Brass | €51.78 | |
|
8EE8-B | 1/2" | 13/16" | Brass | - | - | - | -40°F to +400°F | Brass | €74.06 | |
 |
4EE4-S | 1/4" | 1/2" | Carbon Steel | Compression | 8000 psi | 8000 psi | -20°F to +800°F | Steel | €52.64 |
