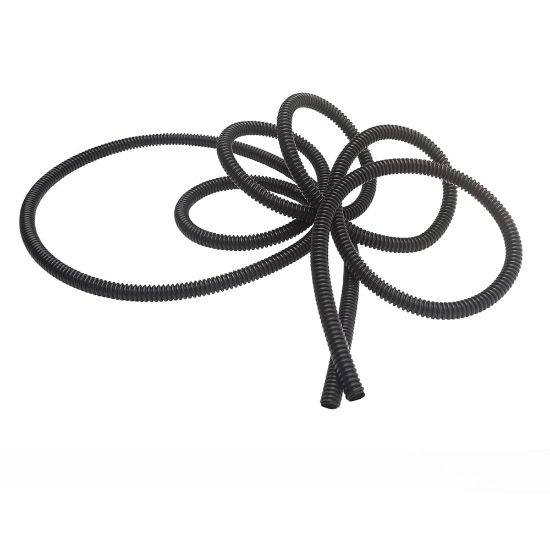

PARKER 81914/1-1002-0TC Tubing, Ptfe, Black, 9/32 Inch Inside Dia
Item: CT7LDXModel: 81914/1-1002-0TCCross Ref: 53XL75
7 In Stock
Ships within 2 days via
10.00% off
€496.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Beverage, Chemical, Food, Water |
| Autoclavable | No |
| Bend Radius | 3/4" |
| Clarity | Opaque |
| Color | Black |
| Compatible Chemicals | Acetone, Chlorine, Ether, Iodine, Nitric Acid 35%, Zinc Chloride |
| Does Not Contain | Not Applicable |
| Features | Chemically Inert, Low Coefficient Of Friction, Non-Wetting, Self-Extinguishing |
| Fitting Compatibility | Compression, Push to Connect |
| Flexibility | Flexible |
| Food And Beverage Compatibility | Beer, Citric Acid, Dairy, Dextrose, Distilled Water, Fructose, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils And Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar |
| For Environment | Washdown |
| Hardness | Shore D 50 To 65 |
| Industry Application | Defense, Military |
| Inside Dia. | 0.281" |
| Inside Diameter | 9/32" |
| Jacket Color | No Jacket |
| Length | 25 ft. |
| Material | PTFE |
| Material Trade Name | Not Applicable |
| Material Trade Number | Not Applicable |
| Max. Pressure | 90 psi |
| Maximum Operating Pressure | 90 psi @ 73掳F |
| Maximum Operating Temperature | 500°F |
| Minimum Operating Temperature | -100°F |
| Outside Dia. | 0.406" |
| Outside Diameter | 13/32" |
| Overall Length | 25 ft. |
| Peristaltic Pump Compatible | No |
| Petroleum Product Compatibility | Kerosene, Mineral Oil |
| Pex Type | Not Applicable |
| Reinforcement | Not Reinforced |
| Resistance Properties | Chemical Resistant, Heat Resistant, Non Flammable |
| System Of Measurement | Inch |
| Tube Form | Straight |
| Vacuum Rated | No |
| Wall Thickness | 0.027" |
| Weight Per Foot | 0.028 lbs.-ft. |
| Weight/ft. | 0.028 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Outside Dia. | Inside Dia. | Wall Thickness | Clarity | Reinforcement | Color | Hardness | Fitting Compatibility | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 81914/1-1010-0TC | 1 1/4" | 1" | 0.035" | Opaque | Non Reinforced | Black | Shore D 50 To 65 | Compression, Push To Connect | €1,608.07 | |
| 81914/1-1006-0TC | 0.656" | 1/2" | 0.029" | Opaque | Not Reinforced | Black | Shore D 50 To 65 | Compression, Push to Connect | €715.77 | |
| 81914/1-1013-0TC | 1.844" | 1 1/2" | 1/25" | Opaque | Non Reinforced | Black | Shore D 50 To 65 | Compression, Push To Connect | €2,466.59 | |
| 81914/1-1012-0TC | 1.531" | 1 1/4" | 0.035" | Opaque | Not Reinforced | Black | Shore D 50 To 65 | Compression, Push-To-Connect | €2,192.56 | |
| 81914/1-1011-0TC | 1 3/8" | 1 1/8" | 0.035" | Opaque | Not Reinforced | Black | Shore D 50 To 65 | Compression, Push to Connect | €1,856.56 | |
| 81914/1-1001-0TC | 0.312" | 0.188" | 0.023" | Opaque | Not Reinforced | Black | Shore D 50 To 65 | Compression, Push to Connect | €462.20 | |
| 81914/1-1008-0TC | 0.969" | 3/4" | 0.035" | Opaque | Not Reinforced | - | Shore D 50 To 65 | Compression, Push to Connect | €1,212.44 |
