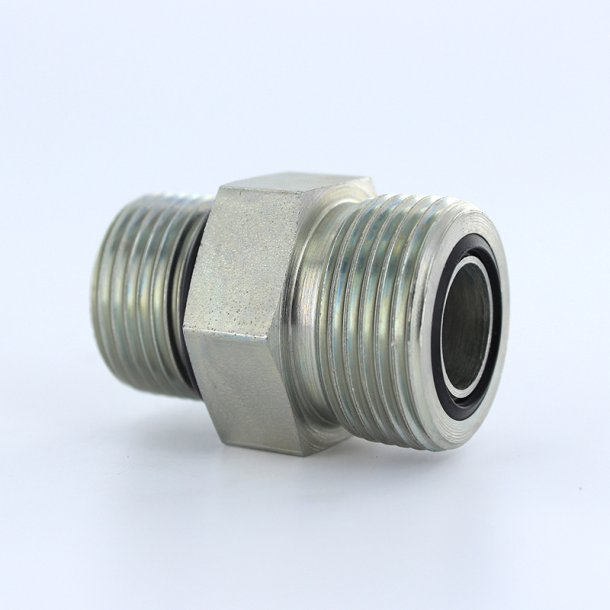

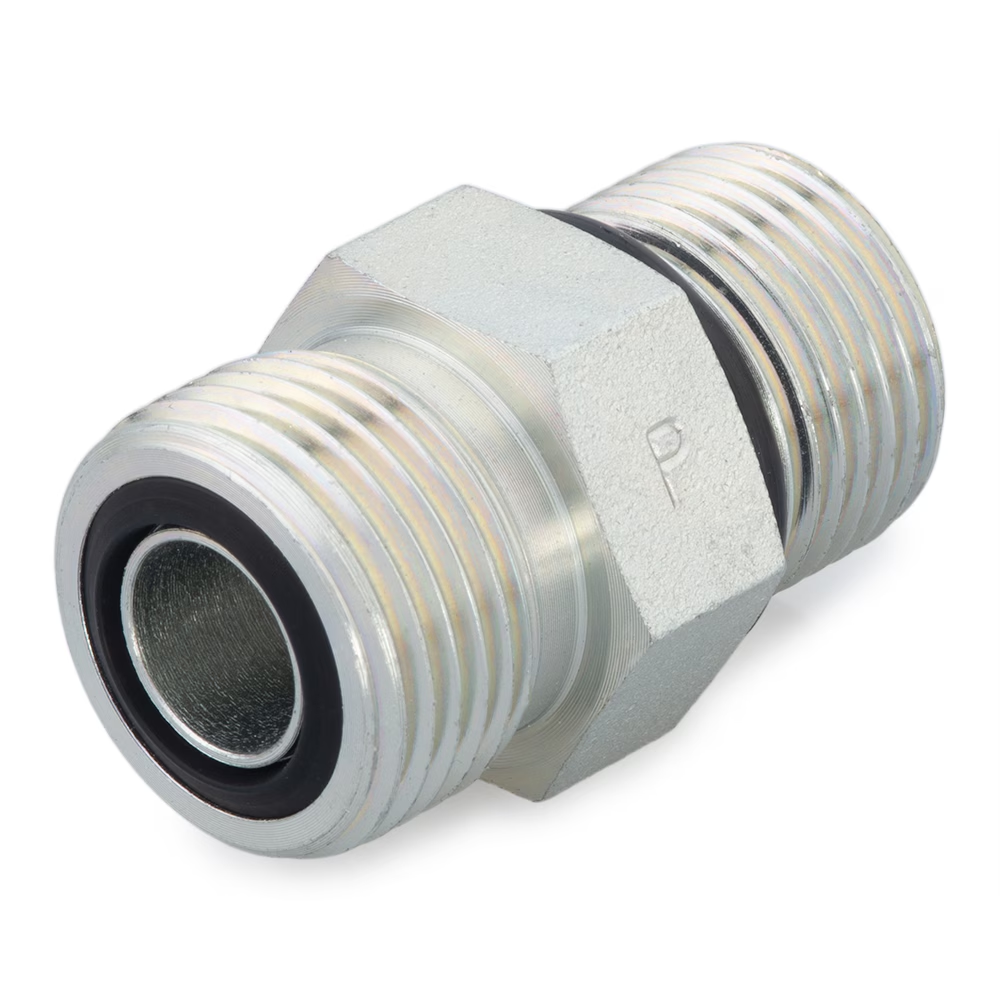

PARKER 8 F5OLO-SS Straight Connect 316 Stainless Steel Saexorfs 1/2in
Item: AB4DTCModel: 8 F5OLO-SSCross Ref: 1XCJ5
7 In Stock
Ships within 2 days via
5.00% off
€146.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Thread Connector |
| Application | Gases, Hydraulic Fluids |
| Basic Material | Metal |
| Body Material | Stainless Steel |
| Compatible Fitting Brands | Seal Lok |
| Compatible Tube Hardness | 90 HRB |
| Compatible Tube Material | Alloy Steel, Copper, Monel Nickel Alloy, Stainless Steel, Steel |
| Compatible Tube Wall Thickness | 0.148" |
| Configuration Sub Type | Straight Thread Connector Orfs, SAE Orb |
| Connection Type | SAE ORB x ORFS |
| End 2 Class | Class 2A |
| End 2 Size | 3/4"-16 |
| End 2 Type | Fine |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Male O Ring Face Seal |
| Fitting Side A Tube Outside Dia. | 1/2" |
| Fitting Side B Connection Type | Male SAE ORB |
| Fitting Side B Pipe Size | 1/2" |
| Grade | Grade 316 |
| Hex Size | 7/8" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 9200 psi |
| Max. Operating Temp. | 1200°F |
| Max. Pressure | 9200 psi |
| Min. Operating Temp. | 425°F |
| Overall Length | 1 7/16" |
| Pipe Size | 1/2" |
| Product Datasheet | parker-8-f5olo-ss.pdf |
| Resistance Properties | Vibration Resistant |
| Series | ORFS Series |
| Specific Fitting Shape | Straight Adapter |
| System Of Measurement | Imperial |
| Temp. | -30°F to +250°F |
| Thread Size B | 3/4"-16 |
| Tube Fitting/adapter Type | ORFS, Seal Lok O Ring Face Seal |
| Tube Size | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.22 |
| Ship length (cm) | 3.65 |
| Ship width (cm) | 2.22 |
| HS code | 7307199040 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Fitting Material | Max. Operating Pressure | Hex Size | Fitting Side A Tube Outside Dia. | Tube Size | Max. Dynamic Pressure | Equivalent To | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
4 F5OLO-S | Steel | 9200 psi | 5/8" | 1/4" | 1/4" | - | - | 9200 psi | €12.35 | |
|
6-4 F5OLO-S | Steel | 9200 psi | 3/4" | 3/8" | 3/8" | - | - | 9200 psi | €17.53 | |
|
8-6 F5OLO-S | Steel | 6000 psi | 7/8" | 1/2" | - | - | - | - | €25.08 | |
 |
10 F5OLO-S | - | - | - | - | - | 6000 psi | 10F5OLOS10-F5OLO-S | 6000 psi | €11.82 | |
 |
10-12 F5OLO-S | - | - | - | - | - | 6000 psi | 1012F5OLOS10-12-F5OLO-S | 6000 psi | €22.05 | |
 |
10-16 F5OLO-S | - | - | - | - | - | - | - | - | €24.29 | |
 |
10-6 F5OLO-S | - | - | - | - | - | 6000 psi | 106F5OLOS10-6-F5OLO-S | - | €20.88 |
