PARKER 8-4 HBZ-SS 8-4 HBZ-SS-GR Reducing Union, 1/2 Inch Outside Diameter, SS
Item: AD7ABLModel: 8-4 HBZ-SSCross Ref: 4CWU9 / 8-4 HBZ-SS-GR
7 In Stock
Ships within 2 days via
10.00% off
€110.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Gases, Liquids |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Union |
| Body Material | Stainless Steel |
| Compatible Fitting Brands | CPI |
| Compatible Tube Material | Stainless Steel |
| Configuration Sub-type | Union Flareless |
| Configuration Type | Straight |
| End 2 Type | Inch |
| Ferrule Type | Single |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Hex Size | 13/16" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 10000 psi |
| Maximum Operating Temperature | 1200°F |
| Minimum Operating Temperature | 425°F |
| Overall Length | 1 27/32" |
| Product Datasheet | parker-8-4-hbz-ss.pdf |
| Resistance Properties | Corrosion Resistant, Vibration-Resistant |
| Series | CPI Series |
| Specific Fitting Shape | Straight Reducing Connector |
| Specific Pipe Fitting Shape | Reducing Union |
| System Of Measurement | Imperial |
| Temp. Range | -425°F to +1200°F |
| Thread Size A | 3/4"-20 |
| Thread Size B | 7/16"-20 |
| Tube Fitting/adapter Type | Bite Type, CPI Single Ferrule Flareless |
| Tube Size | 1/2" |
| Tube Size | 1/2" x 1/4" |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.06 |
| Ship length (cm) | 4.68 |
| Ship width (cm) | 2.06 |
| HS code | 7307290090 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Hex Size | Max. Pressure | Basic Material | Application | Fitting Side A Tube Outer Diameter | Thread Size B | Fitting Side B Tube Outer Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-2 HBZ-SS | 1/4" | 1/2" | - | Metal | Gases, Liquids | 1/4" | 5/16"-20 | 1/8" | €60.91 | |
|
6-4 HBZ-SS | 3/8" | 5/8" | - | Metal | Gases, Liquids | 3/8" | 7/16"-20 | 1/4" | €78.15 | |
|
8-6 HBZ-SS | 1/2" | 13/16" | - | Metal | Gases, Liquids | 1/2" | 9/16"-20 | 3/8" | €122.35 | |
|
12-8 HBZ-SS | 3/4" | 1 1/16" | 5800 psi | Stainless Steel | Air | 3/4" | 3/4"-20 | 1/2" | €206.19 | |
|
2-1 HBZ-SS | 1/8" | 7/16" | 10900 psi | Stainless Steel | Air | 1/8" | 10-32 | 1/16" | €105.43 | |
 |

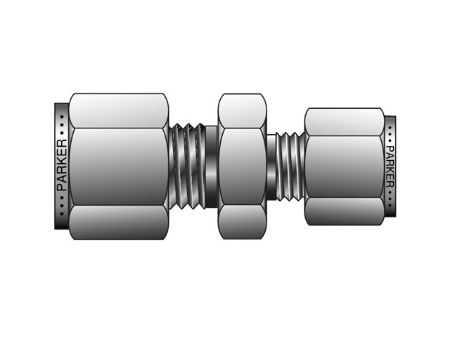

10-8 HBZ-SS | - | - | - | - | - | - | - | - | €83.63 | |
 |

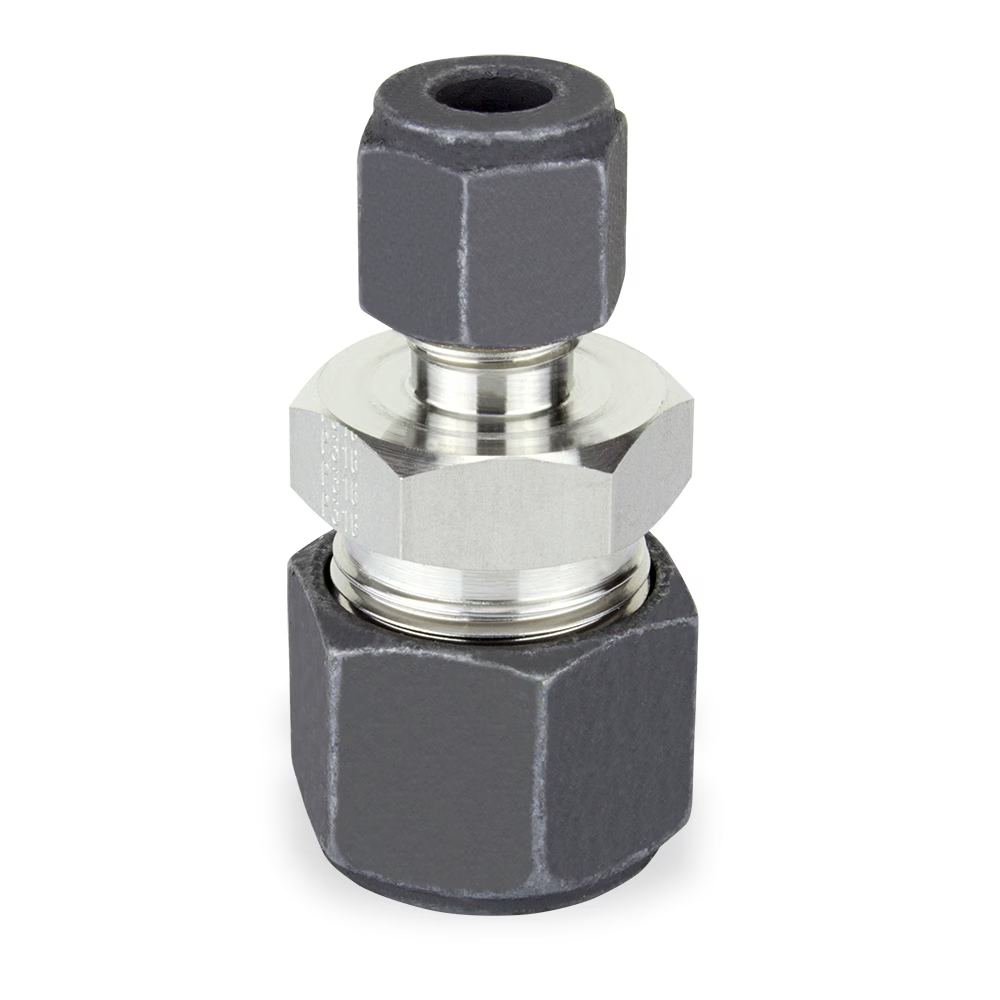

4-3 HBZ-SS | - | - | - | - | - | - | - | - | €34.03 |
