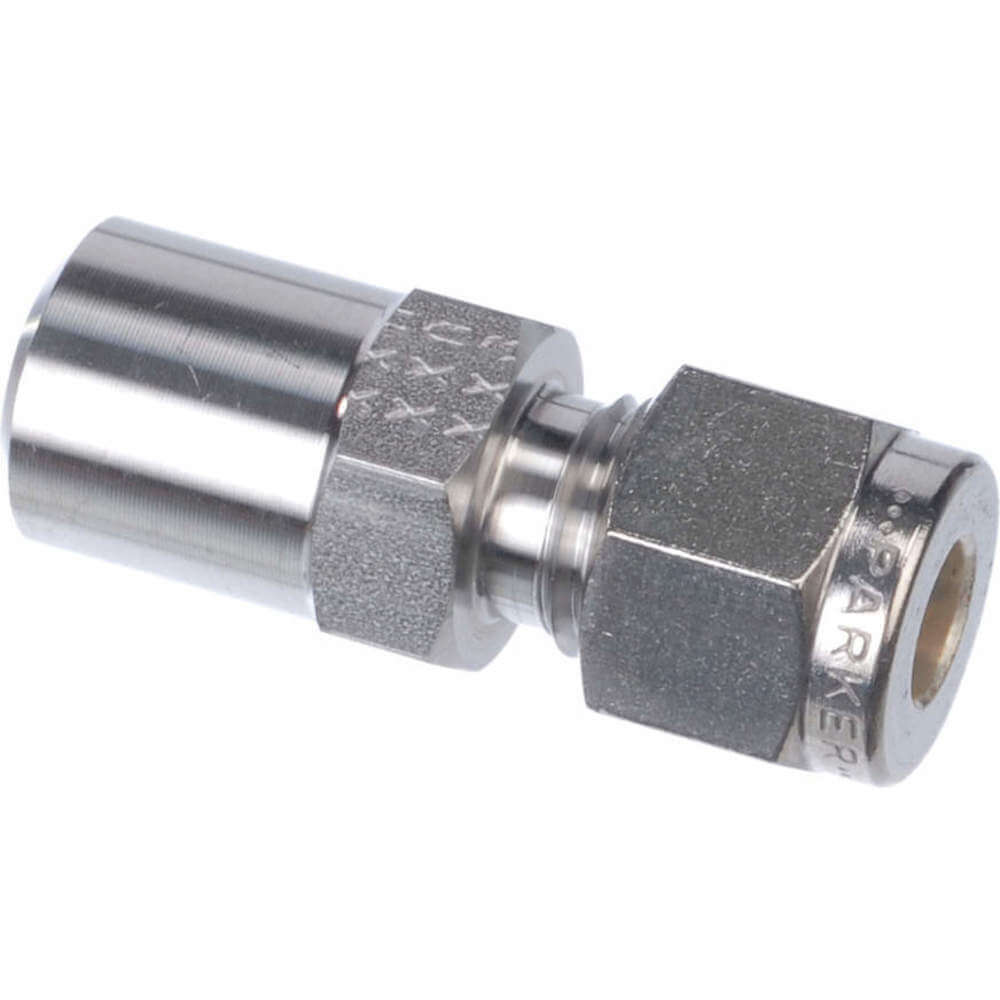

PARKER 8-3/4 ZHLW2-SS Butt-Weld Adapter Stainless Steel ALOK x Butt 1/2 x 3/4 inch
Item: AF7GXPModel: 8-3/4 ZHLW2-SSCross Ref: 20ZA18
7 In Stock
Ships within 2 days via
5.00% off
€238.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Butt-Weld Adapter |
| Basic Material | Stainless Steel |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Stainless Steel |
| Compatible Fitting Brands | A LOK |
| Compression Thread Size | 1/2" |
| Connection Type | A LOK x Pipe Buttweld |
| Dia. | 1/2" |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outside Dia. | 1/2" |
| Fitting Side B Connection Type | Butt Weld |
| Fitting Side B Tube Outside Dia. | 3/4" |
| Hex Size | 1 1/8" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 6700 psi |
| Max. Operating Temp. | 1200°F |
| Max. Pressure | 6700 psi |
| Min. Operating Temp. | 425°F |
| Overall Length | 2" |
| Pipe Size | 3/4" |
| Product Datasheet | parker-8-3-4-zhlw2-ss.pdf |
| Resistance Properties | Corrosion Resistant |
| Series | A-LOK Series |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| System Of Measurement | Imperial |
| Temp. | -425°F to +1200°F |
| Thread Size A | 3/4"-20 |
| Tube Fitting Material | Stainless Steel |
| Tube Size | 3/4" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.86 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 2.86 |
| HS code | 7307290000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Max. Operating Pressure | Fitting Side A Tube Outside Dia. | Tube Size | Hex Size | Max. Pressure | Fitting Side B Tube Outside Dia. | Thread Size A | Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4-1/4 ZHLW2-SS | 10300 psi | 1/4" | 1/4" | 9/16" | 10300 psi | 1/4" | 7/16"-20 | 1/4" | €71.94 | |
| 6-1/4 ZHLW2-SS | 6600 psi | 3/8" | 1/4" | - | 6600 psi | 1/4" | 9/16"-20 | 3/8" | €103.55 | |
| 8-1/2 ZHLW2-SS | 6700 psi | 1/2" | 1/2" | 7/8" | 6700 psi | 1/2" | 3/4"-20 | 1/2" | €149.65 |
