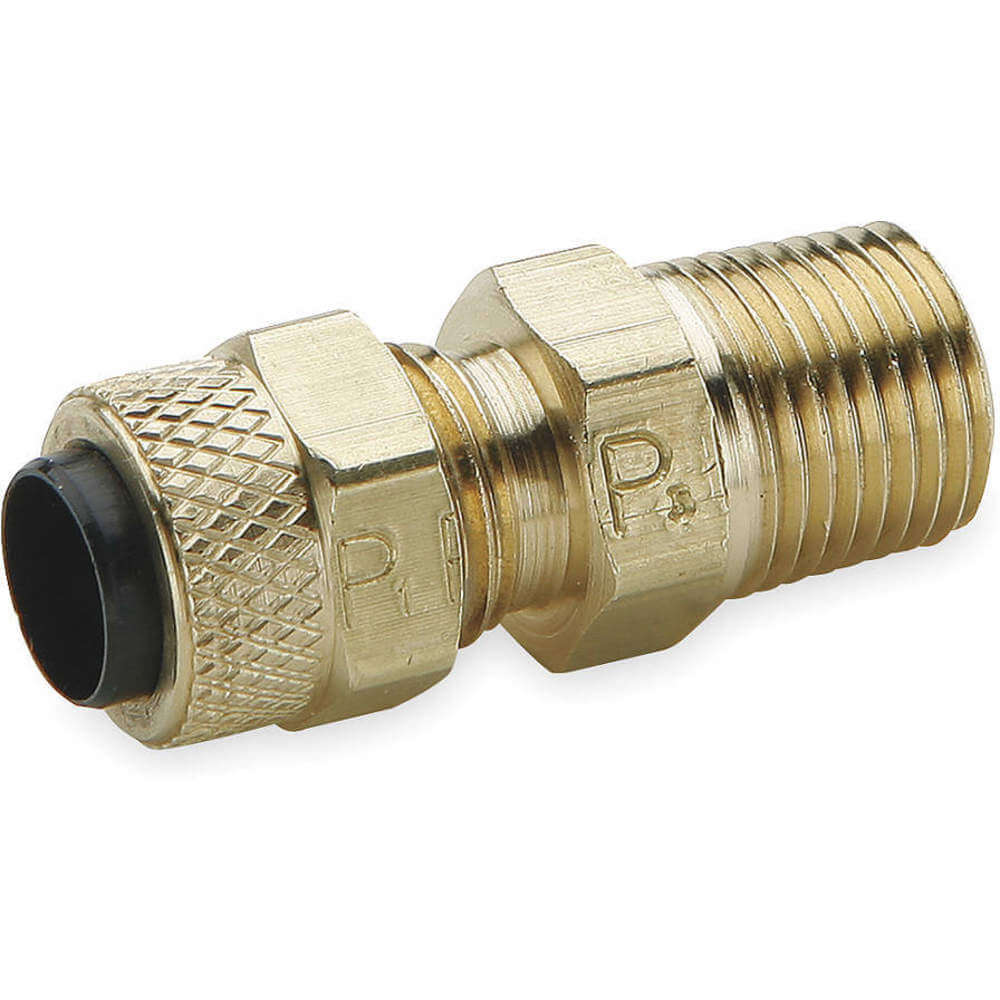

PARKER 68P-4-2 Connector, 1/4 Inch Outside Diameter, Brass
Item: AB3WWFModel: 68P-4-2Cross Ref: 1VPD8
7 In Stock
Ships within 2 days via
10.00% off
€54.16 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Liquids |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Brass |
| Compatible Tube Material | Nylon, Polyethylene, Polypropylene, Vinyl |
| Connection Type | Compression x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Hex Size | 7/16" |
| Material | Brass |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 65°C |
| Max. Operating Temp. | 65 Deg C |
| Max. Pressure | 150 psi |
| Maximum Operating Temperature | 150°F |
| Min. Operating Temp. | -17°C |
| Minimum Operating Temperature | 0°F |
| Nut Material | Brass |
| Overall Length | 1 1/16" |
| Product Datasheet | parker-68p-4-2.pdf |
| Resistance Properties | UV Resistant |
| Series | Poly-Tite |
| Shape | Connector |
| Sleeve Material | Brass, Acetal Copolymer |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Temp. Range | 0°F to +150°F |
| Thread Size B | 3/8"-24 |
| Tube Outside Dia. | 1/4" |
| Tube Size | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 1.11 |
| Ship length (cm) | 2.7 |
| Ship width (cm) | 1.11 |
| HS code | 7419995010 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Size | Connection Type | Pipe Size | Hex Size | Tube Outside Dia. | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Thread Size B | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 68P-4-4 | 1/4" | Compression x MNPT | 1/4" | 9/16" | 1/4" | 1/4" | 1/4" | 3/8"-24 | 10 | €70.72 | |
| 68P-5-2 | 5/16" | Compression x MNPT | 1/8" | 7/16" | 0.312" | 5/16" | 1/8" | 7/16"-24 | 10 | €80.15 | |
| 68P-5-4 | 5/16" | Compression x MNPT | 1/4" | 9/16" | 0.312" | 5/16" | 1/4" | 7/16"-24 | 10 | €115.50 | |
| 68P-6-2 | 3/8" | Compression x MNPT | 1/8" | 1/2" | 3/8" | 3/8" | 1/8" | 1/2"-24 | 10 | €70.70 | |
| 68P-6-4 | 3/8" | Compression x MNPT | 1/4" | 9/16" | 3/8" | 3/8" | 1/4" | 1/2"-24 | 10 | €81.57 | |
| 68P-6-6 | 3/8" | Compression x MNPT | 3/8" | 11/16" | 3/8" | 3/8" | 3/8" | 1/2"-24 | 10 | €99.00 | |
| 68P-8-6 | 1/2" | Compression x MNPT | 3/8" | 11/16" | - | 1/2" | 3/8" | 11/16"-20 | 10 | €123.99 |
