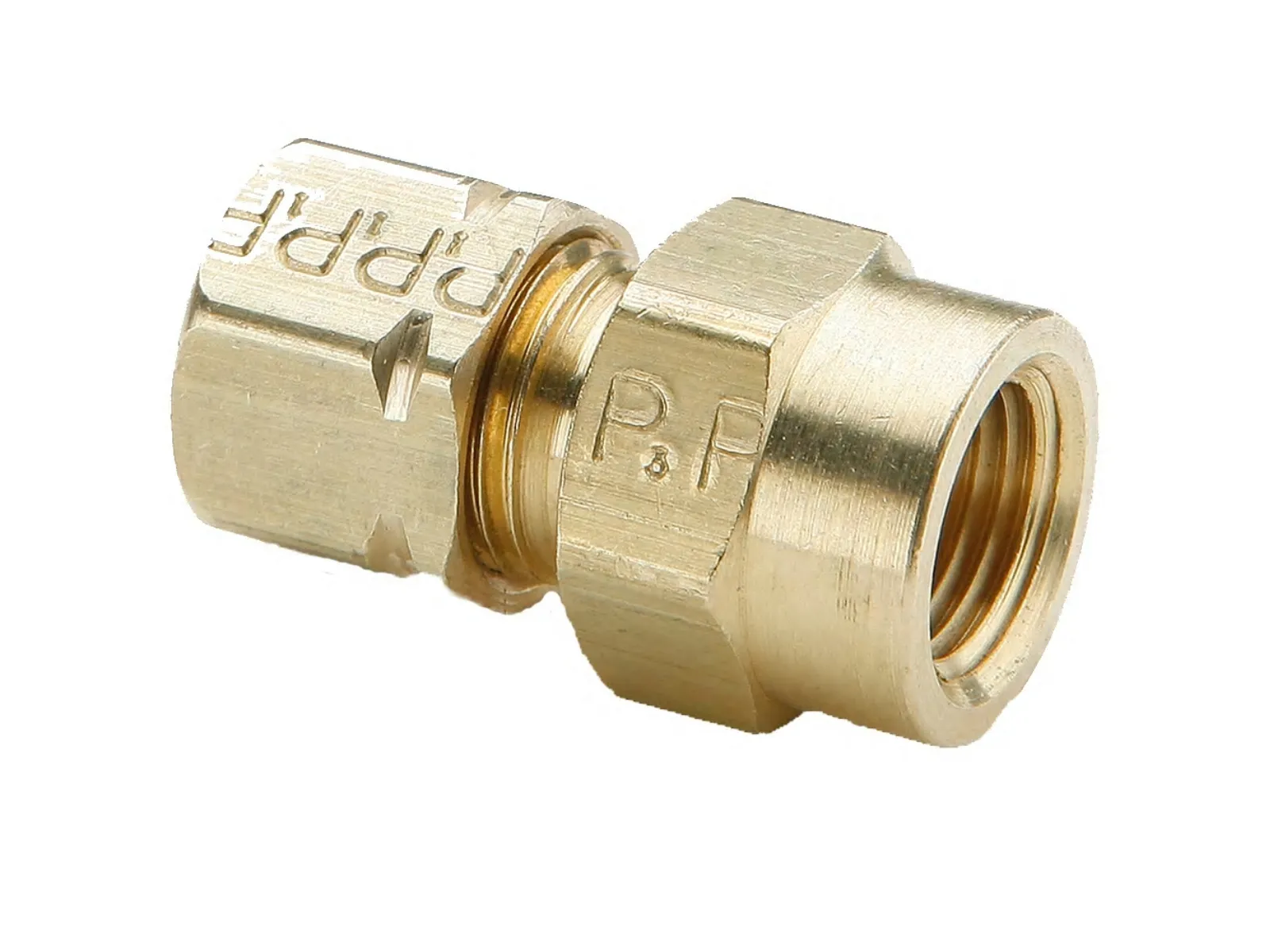

PARKER 66CA-2-2 Connector, 1/8 Inch Outside Diameter, Brass
Item: AE9QHYModel: 66CA-2-2Cross Ref: 6LH58
7 In Stock
Ships within 2 days via
10.00% off
€87.70 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Brass |
| Compatible Tube Material | Aluminum, Copper, FEA, PFA, TFE, Thermoplastic |
| Connection Type | NPTF |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | FNPTF |
| Fitting Side B Pipe Size | 1/8" |
| Hex Size | 9/16" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Operating Temp. | 121°C |
| Max. Operating Temp. | 121 Deg C |
| Max. Pressure | 2800 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 1" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-66ca-2-2.pdf |
| Series | Compression |
| Shape | Connector |
| Sleeve Material | Brass |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| Style | Tube To Female Pipe |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +250°F |
| Thread Size B | 5/16"-24 |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 1.43 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 1.43 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Max. Pressure | Hex Size | Fitting Side A Tube Outer Diameter | Tube Outside Dia. | Fitting Side B Pipe Size | Thread Size B | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 66CA-3-2 | 1/8" | 3/16" | 1900 psi | 9/16" | 3/16" | 0.188" | 1/8" | 3/8"-24 | 25 | €241.07 | |
| 66CA-4-2 | 1/8" | 1/4" | 1400 psi | 9/16" | 1/4" | 1/4" | 1/8" | 7/16"-24 | 25 | €205.07 | |
| 66CA-4-4 | 1/4" | 1/4" | 1400 psi | 11/16" | 1/4" | 1/4" | 1/4" | 7/16"-24 | 10 | €132.95 | |
| 66CA-5-4 | 1/4" | 5/16" | 1200 psi | 11/16" | 5/16" | 0.312" | 1/4" | 1/2"-24 | 1 | €169.43 | |
| 66CA-6-4 | 1/4" | 3/8" | 1000 psi | 11/16" | 3/8" | 3/8" | 1/4" | 9/16"-24 | 10 | €131.53 | |
| 66CA-6-6 | 3/8" | 3/8" | 1000 psi | 13/16" | 3/8" | 3/8" | 3/8" | 9/16"-24 | 10 | €229.12 | |
| 66CA-6-8 | 1/2" | 3/8" | 1000 psi | 1" | 3/8" | 3/8" | 1/2" | 9/16"-24 | 10 | €269.67 |
