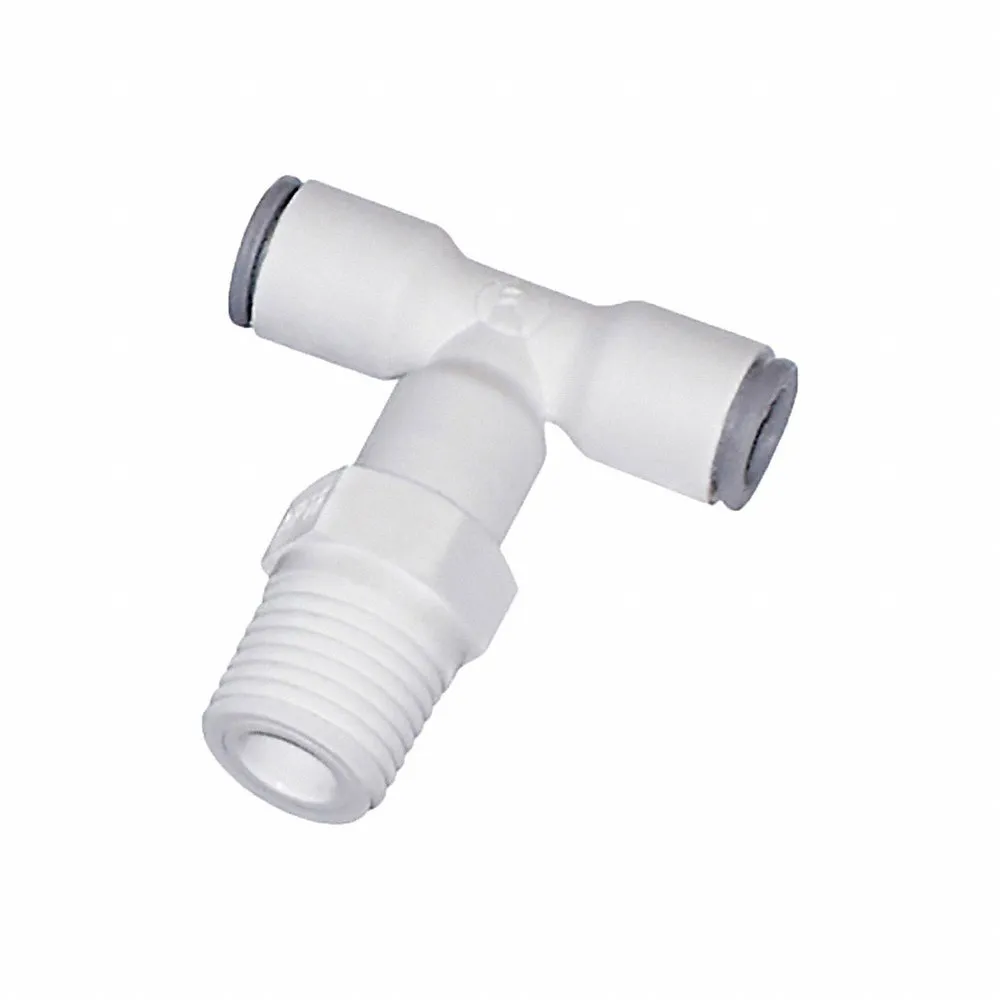

PARKER 6508 56 18WP2 Fractional Plastic Push-to-Connect Fitting, Polymer
Item: CT7JBXModel: 6508 56 18WP2Cross Ref: 791D97
7 In Stock
Ships within 2 days via
10.00% off
€7.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Water, Beverages, Food, Co2 |
| Color | White |
| Compatible Tube Material | Polyethylene |
| Configuration Sub-type | Male Branch Tee Swivel |
| Configuration Type | Tube To Male |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Fitting Side C Connection Type | MBSPT |
| Fitting Side C Pipe Size | 3/8" |
| Length | 1 3/8" |
| Material | Polypropylene |
| Max. Operating Pressure | 230 psi |
| Max. Operating Temp. | 200°F |
| Operating Temp. Range | -14°F to +200°F |
| Outer Diameter 1 | 1/4" |
| Pressure Range | 0 psi to 230 psi |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Chemical Resistant |
| Series | LIQULFIT Series |
| Specific Application | Meets Fda, Nsf 51 And Nsf 61 Requirements |
| Specific Fitting Shape | TEE |
| System Of Measurement | Inch |
| Thread 1 Size | 3/8" |
| Thread 1 Type | NPT |
| Thread Size | 3/8" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.49 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Max. Operating Pressure | Max. Operating Temp. | Fitting Material | Material | Specific Fitting Shape | Color | Overall Length | Fitting Side A Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
68PLP-10M-4G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 31.875 mm | Push To Connect | €15.97 | |
|
68PLP-10M-6G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 26.8125 mm | Push To Connect | €16.79 | |
 |
66PLP-10M-6G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 39.5 mm | Push To Connect | €32.15 | |
 |
66PLPBH-10M-6G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 39.5 mm | Push To Connect | €28.27 | |
|
66PLP-10M-4G | - | 200°F | Brass | Brass | Straight Adapter | Silver | 38.21875 mm | Push To Connect | €35.57 | |
|
68PLP-10M-8G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 31.875 mm | Push To Connect | €20.45 | |
 |
68PLP-4M-2G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 23.21875 mm | Push To Connect | €8.62 |
