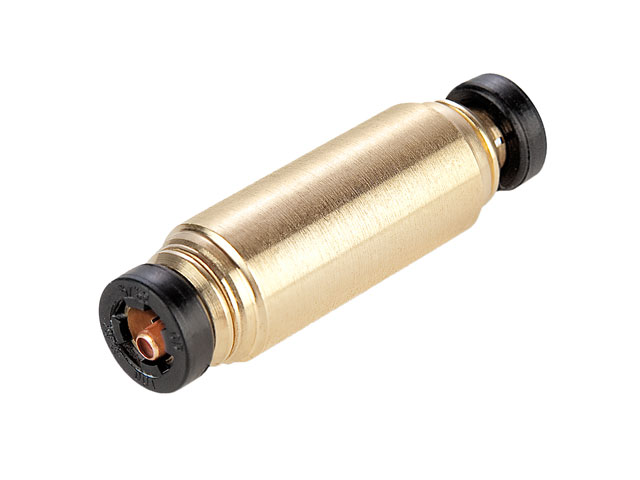

PARKER 62PTC-3 Union, Brass, Push-to-Connect x Push-to-Connect, For 3/16 Inch x 3/16 Inch Tube OD
Item: CT7LKPModel: 62PTC-3Cross Ref: 48MA59
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Color | Silver |
| Compatible Tube Material | Nylon |
| Configuration Sub-type | Union |
| Configuration Type | Tube to Tube |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Dia. | 3/16" |
| Fitting Side A Tube Outer Diameter | 3/16" |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 3/16" |
| Gasket Material | Buna N |
| Includes Pre-applied Thread Sealant | No |
| Length | 1 8/25" |
| Material | Brass |
| Max. Pressure | 250 psi |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | -40°F |
| Operating Temp. Range | -40°F to +200°F |
| Outer Dia. 1 | 3/8" |
| Outside Dia. | 3/16" |
| Overall Length | 1 3/8" |
| Pressure Range | 0 psi to 250 psi |
| Release Ring Material | Buna N |
| Release Type | Button |
| Resistance Properties | Impact Resistant |
| Series | PTC METAL Series |
| Specific Application | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary And Secondary, Air Lines, Cab Controls |
| Specific Fitting Shape | Straight Connector |
| System Of Measurement | Inch |
| Tube Size | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.97 |
| Ship length (cm) | 3.49 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Material | Color | Tube Size | Fitting Material | Overall Length | Specific Fitting Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
62PTC-5/32 | - | - | - | - | - | - | - | €12.60 |
