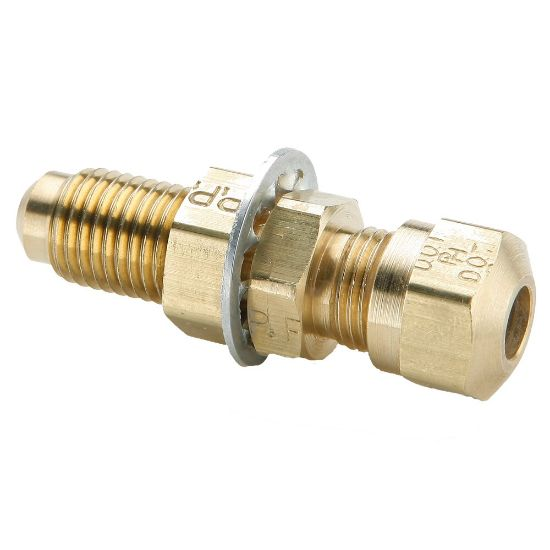

PARKER 62NFBH-8 Bulkhead Union, Brass, 1/2 Inch Tube Size
Item: CT7CWJModel: 62NFBH-8Cross Ref: 48LY31
7 In Stock
Ships within 2 days via
10.00% off
€39.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bulkhead Union |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Compatible Tube Material | Nylon, Stainless Steel |
| Configuration Sub-type | Union Bulkhead |
| Configuration Type | Tube to Tube |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Dia. | 1/2" |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | Flared |
| Fitting Side B Tube Outer Diameter | 1/2" |
| Fitting Thread Size | 11/16"-20 |
| Flare Angle | 45° |
| Hex Size | 7/8" |
| Includes Pre-applied Thread Sealant | Yes |
| Material | Brass |
| Max. Pressure | 150 psi |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | 40°F |
| Operating Temp. Range | -40°F to +200°F |
| Outer Dia. 1 | 1/2" |
| Overall Length | 2 3/4" |
| Pressure Range | 0 psi to 150 psi |
| Series | AIR BRAKE NTA Series |
| Specific Application | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary And Secondary, Air Lines, Cab Controls |
| Specific Fitting Shape | Straight Bulkhead Union |
| System Of Measurement | Inch |
| Tube Size | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 2.22 |
| Country of Origin | US |
Product Variants
| Model | Tube Size | Fitting Side A Tube Outer Diameter | Hex Size | Fitting Side B Tube Outer Diameter | Fitting Thread Size | Overall Length | Material | Fitting Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 62NFBH-10 | 5/8" | 5/8" | 1" | 5/8" | 13/16"-18 | 2 11/16" | Brass | Brass | €63.47 | |
| 62NFBH-4 | 1/4" | 1/4" | 9/16" | 1/4" | 7/16"-24 | 1 7/8" | Brass | Brass | €22.37 | |
| 62NFBH-6 | 3/8" | 3/8" | 3/4" | 3/8" | 17/32"-24 | 2 1/4" | Brass | Brass | €31.92 |
