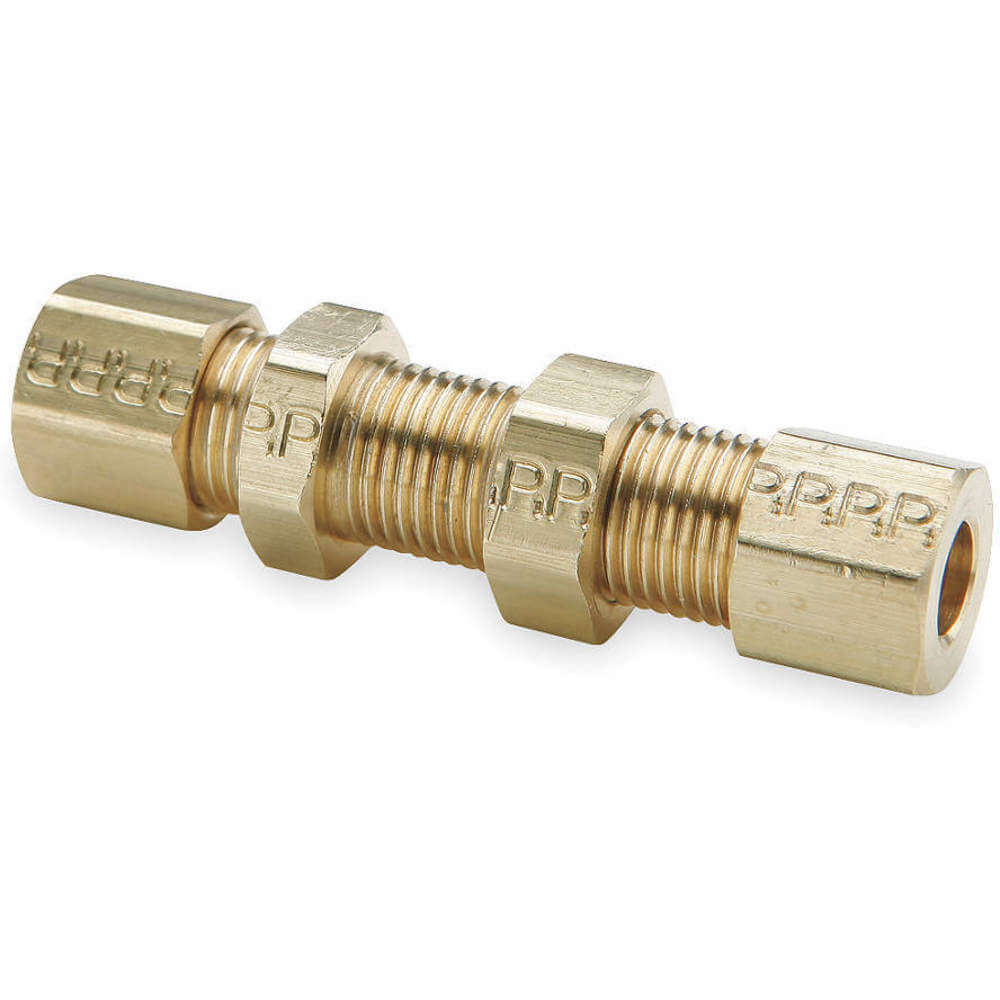

PARKER 62CBH-4 Bulkhead, 1/4 Inch Outside Diameter, Brass
Item: AB3TTFModel: 62CBH-4Cross Ref: 1VDB7
7 In Stock
Ships within 2 days via
10.00% off
€154.87 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Union |
| Body Material | Brass |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Compression Thread Size | 7/16"-24 |
| Configuration Sub-type | Union Bulkhead |
| Connection Type | Compression |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Hex Size | 9/16" |
| Material | Brass |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 121°C |
| Max. Operating Temp. | 121 Deg C |
| Max. Pressure | 75 psi to 400 psi |
| Maximum Operating Pressure | 1400 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 2 9/32" |
| Product Datasheet | parker-62cbh-4.pdf |
| Series | Compression Series |
| Shape | Bulkhead |
| Sleeve Material | Brass, Acetal |
| Specific Fitting Shape | Straight Bulkhead Union |
| Specific Pipe Fitting Shape | Bulkhead Union |
| Style | Tube To Tube |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +250°F |
| Thread Size | 7/16"-24 |
| Thread Size A | 7/16"-24 |
| Thread Size B | 7/16"-24 |
| Thread Type | NPTF |
| Tube Outside Dia. | 1/4" |
| Tube Size | 1/4" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.46 |
| Ship height (cm) | 1.43 |
| Ship length (cm) | 5.79 |
| Ship width (cm) | 1.43 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Hex Size | Max. Operating Pressure | Tube Outside Dia. | Connection Type | Body Material | Max. Pressure | Max. Operating Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
62CBH-6 | 3/8" | 0.688" | 200 psi | 3/8" | Compression | Brass | 75 psi to 400 psi | 121°C | 10 | €293.23 |
