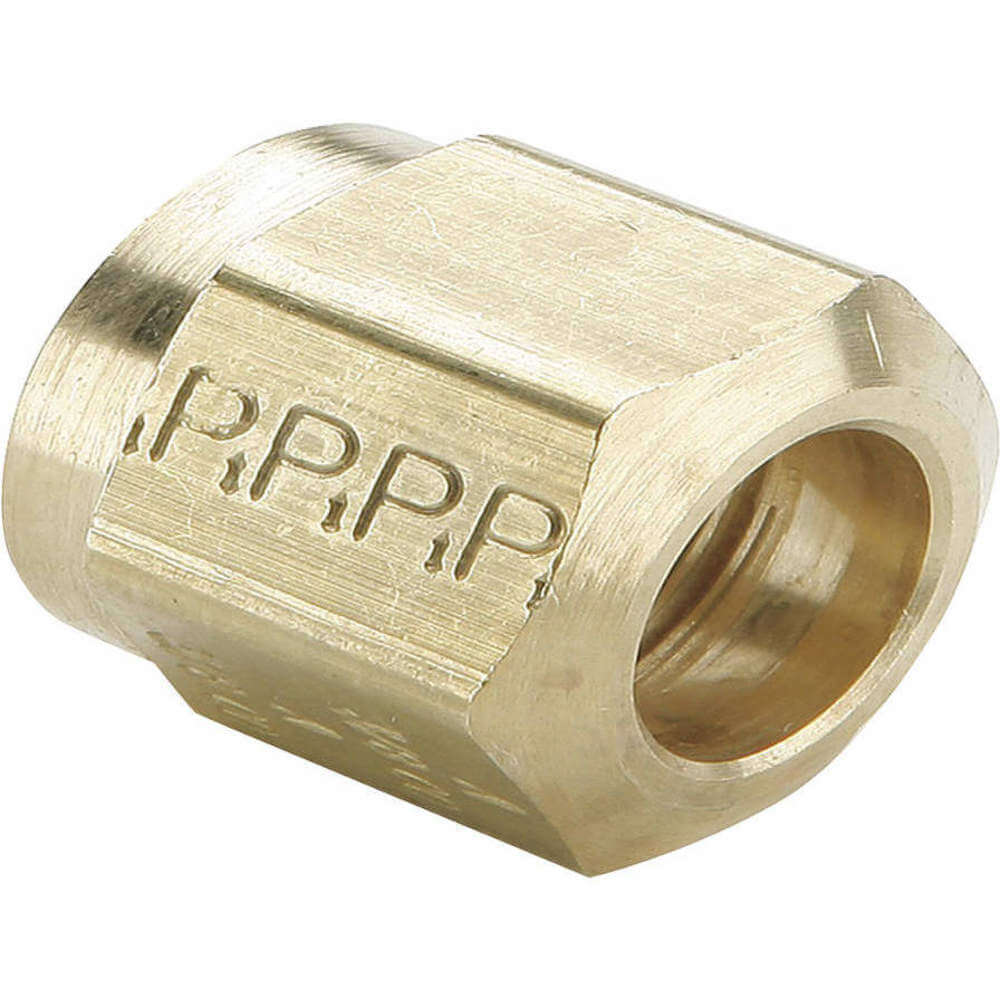

PARKER 61NTA-3 Air Brake Fitting, 3/16 Inch Outside Diameter, Brass
Item: AA3GHZModel: 61NTA-3Cross Ref: 11K640
7 In Stock
Ships within 2 days via
10.00% off
€2.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Brake Fitting |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Body Material | Brass |
| Compatible Tube Outer Diameter | 3/16" |
| Configuration Type | Auxiliary |
| Connection | Threaded |
| Fitting Connection Type | Compression |
| Fitting Material | Brass |
| Hex Size | 7/16" |
| Length | 2/5" |
| Material | Brass |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 93°C |
| Max. Operating Temp. | 93 Deg C |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | 40°F |
| Nut Material | Brass |
| Outer Diameter 1 | 3/16" |
| Overall Length | 13/32" |
| Pressure | 150 psi |
| Pressure Range | 0 psi to 150 psi |
| Product Datasheet | parker-61nta-3.pdf |
| Series | AIR BRAKE NTA Series |
| Shape | Nut |
| Sleeve Material | Brass |
| Specific Application | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary And Secondary, Air Lines, Cab Controls |
| Specific Fitting Shape | Nut |
| Style | Tube |
| System Of Measurement | Imperial |
| Temp. Range | -40°F to +200°F |
| Thread Size | 5/16"-24 |
| Tube Outside Dia. | 0.188" |
| Tube Size | 3/16" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.11 |
| Ship length (cm) | 1.03 |
| Ship width (cm) | 1.11 |
| HS code | 7307199060 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Size | Hex Size | Overall Length | Tube Outside Dia. | Body Material | Max. Operating Temp. | Min. Operating Temp. | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 61NTA-4 | 1/4" | 9/16" | 15/32" | 1/4" | Brass | 93°C | -40°C | 150 psi | €1.98 | |
| 61NTA-6 | 3/8" | 5/8" | 5/8" | 3/8" | Brass | 93°C | -40°C | 150 psi | €3.16 | |
| 61NTA-8 | 1/2" | 13/16" | 23/32" | - | Brass | 93°C | -40°C | 150 psi | €3.86 | |
| 61NTA-10 | 5/8" | 15/16" | 25/32" | 5/8" | Brass | 93°C | -40°C | 150 psi | €4.71 | |
| 61NTA-12 | 3/4" | 1 1/8" | 13/16" | 3/4" | Brass | 93°C | -40°C | 150 psi | €6.64 |
