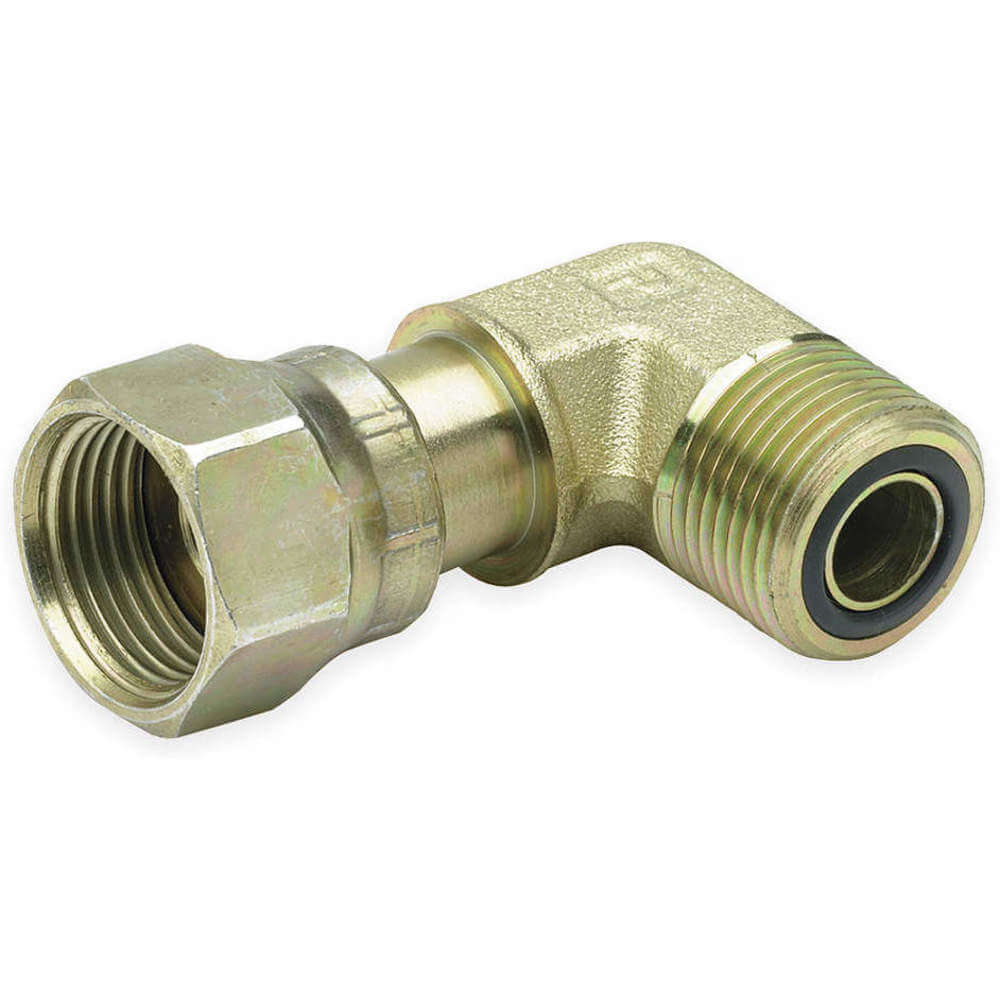

PARKER 6 C6LO-S Swivel Nut Elbow Zinc Steel Orfs 3/8in
Item: AB4DUDModel: 6 C6LO-SCross Ref: 1XDA1
7 In Stock
Ships within 2 days via
10.00% off
€26.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Swivel Nut Elbow, 90 Degrees |
| Application | Air |
| Basic Material | Metal |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Compatible Fitting Brands | Seal Lok |
| Compatible Tube Hardness | 72 HRB |
| Compatible Tube Material | Alloy Steel, Copper, Monel Nickel Alloy, Stainless Steel, Steel |
| Compatible Tube Wall Thickness | 0.109" |
| Configuration Sub-type | Swivel Nut Elbow Orfs, Orfs Swivel |
| Configuration Type | 90° Elbow |
| Connection Type | Female ORFS x ORFS |
| End 1 Size | 1 1/2" |
| End 2 Size | 1 1/2" |
| End 2 Type | Inch |
| Finish/coating | Zinc Nickel Plated |
| Fitting Material | Steel |
| Fitting Side A Connection Type | Male O Ring Face Seal |
| Fitting Side A Tube Outer Diameter | 3/8" |
| Fitting Side B Connection Type | Swivel FNPT O Ring |
| Fitting Side B Pipe Size | 3/8" |
| Material | Steel |
| Max. Operating Pressure | 9200 psi |
| Max. Pressure | 9200 psi |
| Maximum Operating Temperature | 500°F |
| Minimum Operating Temperature | 65°F |
| Overall Length | 1 5/32" |
| Pipe Size | 3/8" |
| Product Datasheet | parker-6-c6lo-s.pdf |
| Resistance Properties | Vibration Resistant |
| Series | ORFS Series |
| Specific Fitting Shape | 90° Swivel Elbow Adapter |
| System Of Measurement | Imperial |
| Temp. Range | -30°F to +250°F |
| Tube Fitting/adapter Type | ORFS, Seal Lok O Ring Face Seal |
| Tube Size | 3/8" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.94 |
| Ship width (cm) | 4.06 |
| HS code | 7307929000 |
| Country of Origin | PH |
Documentation:
Product Variants
| Product | Model | Tube Size | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Compatible Tube Wall Thickness | Overall Length | Connection Type | Body Material | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
8 C6LO-S | 1/2" | 1/2" | 1/2" | 0.148" | 1 1/2" | Female ORFS x ORFS | Steel | 9200 psi | €46.53 | |
 |
10 C6LO-S | - | - | - | - | - | - | - | - | €36.29 | |
 |

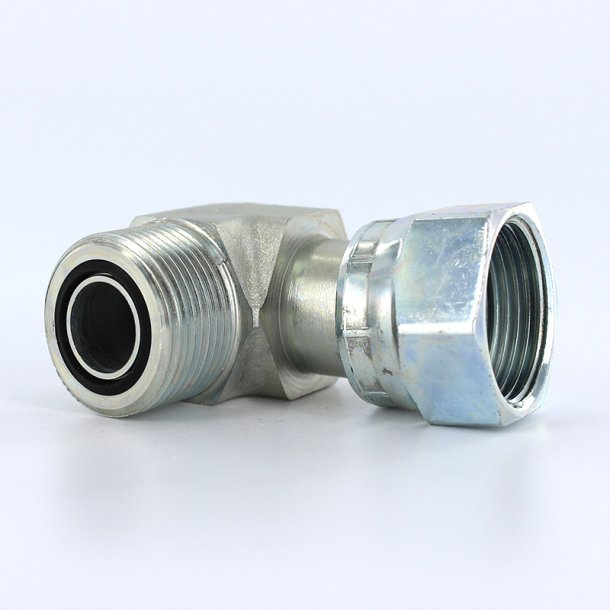

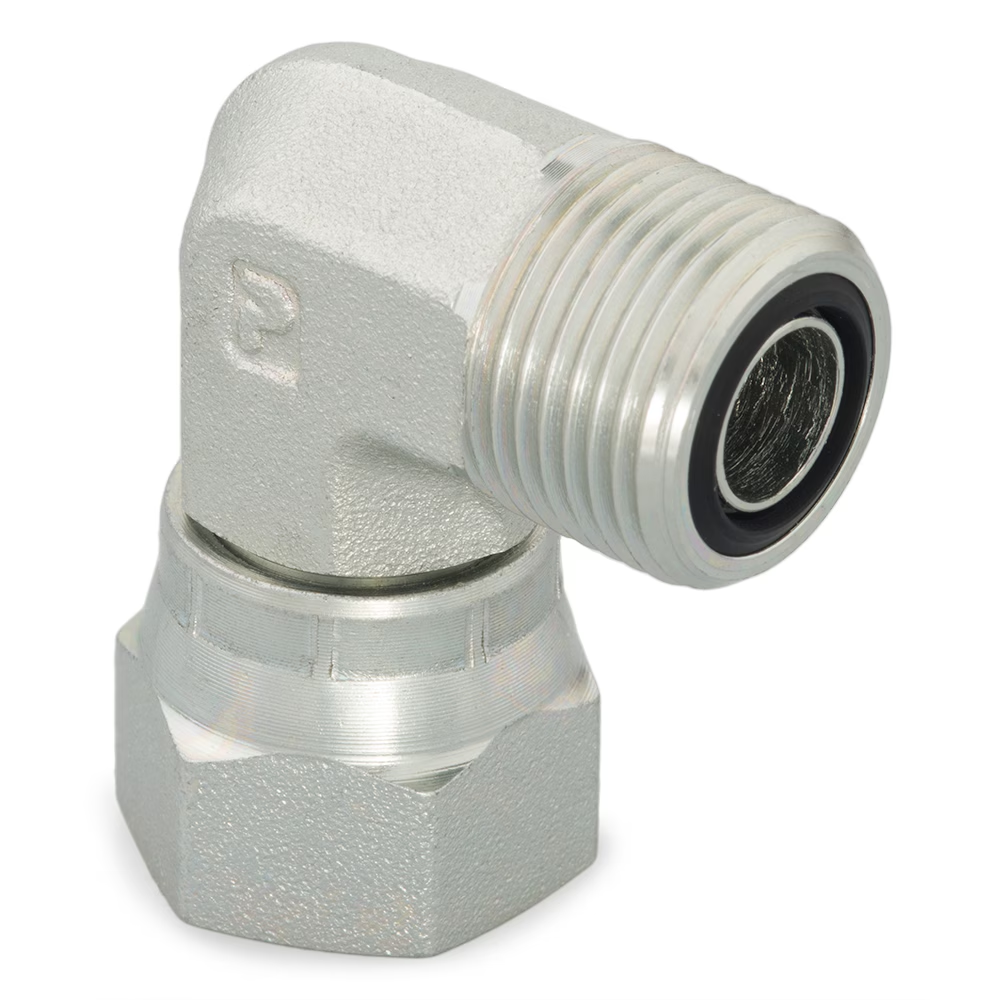

12 C6LO-S | - | - | - | - | - | - | - | - | €47.16 | |
 |
16 C6LO-S | - | - | - | - | - | - | - | - | €66.33 | |
 |
16 C6LO-SS | - | - | - | - | - | - | - | - | €768.11 | |
|
20 C6LO-S | - | - | - | - | - | - | - | - | €139.82 | |
|
24 C6LO-S | - | - | - | - | - | - | - | - | €233.84 |
