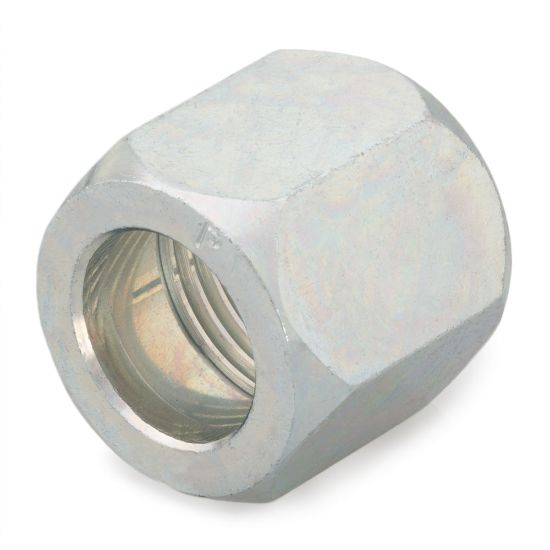

PARKER 6 BTX-S Nut, 37 Deg. Flare, 3/8 Inch
Get it by Monday, Aug 24
€1.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Nut |
| Application Type | Hydraulic Fluid, Gas Handling Connections |
| Connection Type | 9/16" (9/16"-18, 9/16" X 18) UN/UNF 2B Female Thread |
| Design | 11/16" Ext. Hexthreaded (JIC 37° Flare) Design#Btx Model |
| End Connection | Flare |
| Equivalent To | 6BTXS6-BTX-S |
| Fitting Type | Nut |
| Flared Angle | 37° |
| Function | 37° Flare Nut |
| Main Function | Nut |
| Material | Steel , Steel Body |
| Max. Pressure | 6000 psi |
| Max. Working Temp. | 500°F |
| Outside Dia. | 3/8" |
| Overall Length | 0.73" |
| Product Datasheet | parker-10-aoex6-s.pdf |
| Size | 3/18" JIC (37° Flare) |
| Sub Range Name | Triple Lok Series |
| Type | Triple Lok |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
