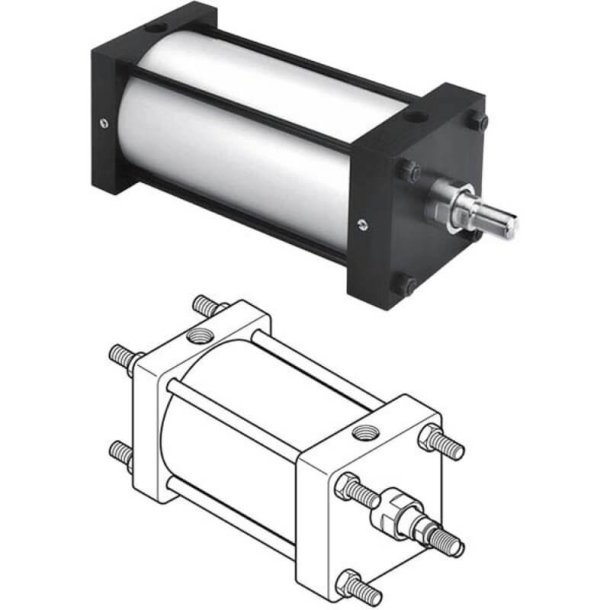

PARKER 6.00TD4MAU19A02.75 Pneumatic Cylinder
2 3/4"
Get it by Tuesday, Aug 25
€1,048.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 6" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Female Short Threaded Rod-End |
| Design | Lipseal Piston Short Female Rod End Thread NFPA Interchangeable Model Repairable |
| Dia. | 1 3/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Both Ends Mounting (NFPA MX1) |
| Mounting Mode | Tie-Rods Extended Both Ends Mounting (NFPA MX1) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 2 3/4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Pressure | Mounting | Max. Air Service Pressure | Bore Size | Shape | Rod Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6P4MA0021037 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
6.00CC4MA3U34AC10.00 | 10" | 1 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Side Lug Mounting (NFPA MS2) | 250 psig | 6" | Rectangular | 1 3/4" | €1,879.28 | |
 |
6.00TB4MAU19AC03.50 | 3 1/2" | 1 3/8" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Tie-Rods Extended Head End Mounting (NFPA MX3) | 250 psig | 6" | Rectangular | - | €1,158.01 | |
 |
6.00T4MA3U14A15.00 | 15" | 1 3/8" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | No Mount (NFPA MX0) | 250 psig | 6" | Rectangular | - | €1,429.01 | |
 |
6.00BC4MAU14A09.63 | 9.63" | 1 3/8" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cap Detachable Clevis Mounting (NFPA MP2) | 250 psig | 6" | Rectangular | - | €1,343.83 | |
 |
6.00C4MAB39A03.25 | 3 1/4" | 1 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Side Lug Mounting (NFPA MS2) | 250 psig | 6" | Rectangular | 1 3/4" | €1,669.20 | |
 |
6.00J4MAU18A20.00 | 20" | 1 3/8" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Head Rectangular Flange Mounting (NFPA MF1) | 250 psig | 6" | Rectangular | - | €1,601.16 |
