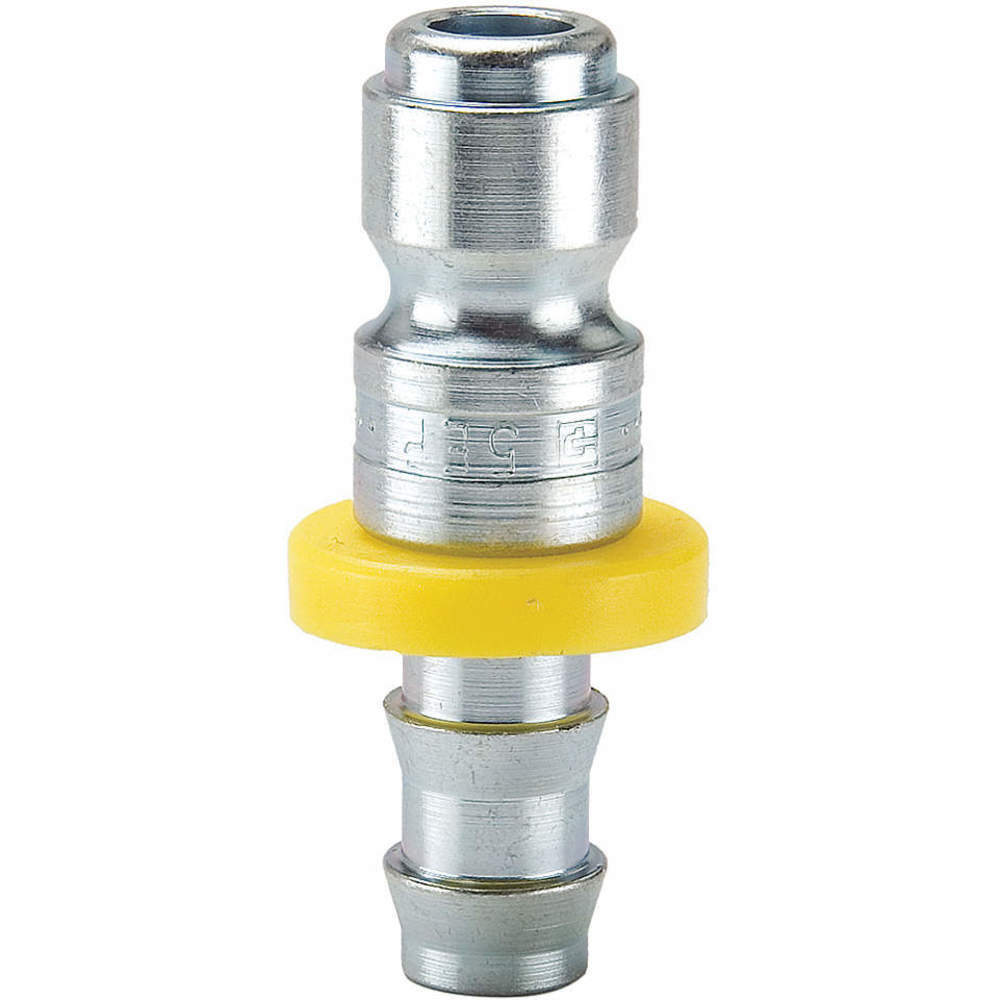

PARKER 5EP Nipple, 3/8 Inch Size, Push-Lok hose barb, Air Hose, Steel
Item: AC4WDBModel: 5EPCross Ref: 30N386
7 In Stock
Ships within 2 days via
10.00% off
€23.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Nipple |
| Application | Pneumatic |
| Barb Size | 3/8" |
| Barbed | Yes |
| Body Material | Steel |
| Body Size | 3/8" |
| Color | Silver |
| Configuration Type | Push Lok Hose Barb |
| Connection Type | Push Hose Barb |
| Coupler/nipple/shell | Nipple |
| Coupling Component | Plug |
| Coupling Locking Type | Push to Connect |
| Finish | Trivalent Chrome |
| Finish, Coating | Clear Trivalent Chromate Plated |
| Finish/coating | Trivalent Chrome |
| Fitting Type | Male Hose Barb |
| For Hose I.d. | 3/8" |
| Hose Connection | Push On |
| Hose Connection Type | Push On |
| Hose Fitting Gender | Male |
| Hose Fitting Size | 3/8" |
| Hose Inside Dia. | 3/8" |
| Includes Valve | No |
| Interchange Type | Automotive, Tru Flate |
| Length | 1.98" |
| Material | Steel |
| Max. Flow Rate | 1415.84 LPM |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Outside Dia. | 5/8" |
| Max. Pressure | 300 psi |
| Max. Pressure Range | 250 psi to 499 psi |
| Max. Working Pressure | 300 psi |
| Max. Working Pressure @ 70 F | 300 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 2" |
| Plating | Zinc |
| Quick Connect Air Coupling Material | Steel |
| Quick Coupler Type | Pneumatic Manual Connect |
| Series | 10 Series |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
| Thread Size | Not Available |
| Valve Type | Unvalved |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.51 |
| Ship length (cm) | 5.04 |
| Ship width (cm) | 2.29 |
| HS code | 7307995015 |
| Country of Origin | US |
