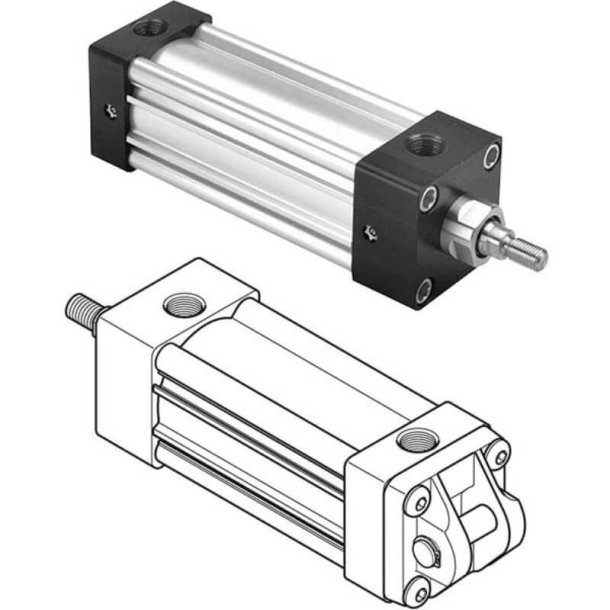

PARKER 5.00CBB4MA2U34AC30.00 Pneumatic Cylinder
30"
Get it by Tuesday, Aug 25
€1,642.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 5" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-End |
| Design | "Lipseal" Piston Small Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Repairable |
| Dia. | 1 3/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Cap Fixed Clevis Mounting (NFPA MP1) |
| Mounting Mode | Cap Fixed Clevis Mounting NFPA MP1 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 30" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Mounting | Rod Thread Type | Port Size | Port Type | Piston No. | Bumpers | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5.00BB4MA3U14AC07.00 | 7" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | €940.11 | |
 |
5.00BC4MA2U34A18.00 | 18" | 1 3/8" | Cap Detachable Clevis Mounting (NFPA MP2) | UNF | 0.5 | NPTF | 3 | W, O Bumpers | €1,259.38 | |
 |
5.00BE4MAU18AC10.00 | 10" | 1" , 1" No.1 | Cap Detachable Eye Mounting (NFPA MP4) | - | - | - | - | - | €1,002.12 | |
 |
5.00CC4MA2U38AC24.00 | 24" | 1 3/8" | Side Lug Mounting (NFPA MS2) | - | - | - | - | - | €1,539.76 | |
 |
5.00CBB4MA3U19AC04.75 | 4 3/4" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | €956.53 | |
 |
5.00CCBT4MA3U14AC12.00 | 12" | 1" , 1" No.1 | Side End Angle Mounting (NFPA MS1) | - | - | - | - | - | €1,283.92 | |
 |
5.00BB4MAU14A19.00 | 19" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | €1,130.22 |
