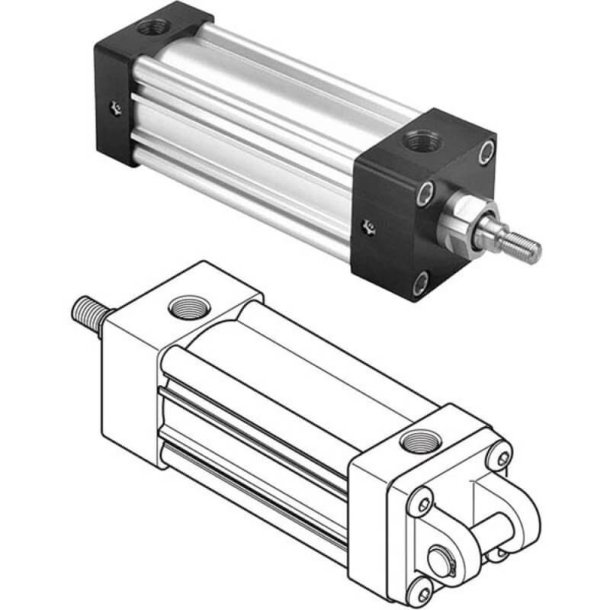

PARKER 5.00BC4MA3U16A23.50 Pneumatic Cylinder
23 1/2"
Get it by Friday, Aug 21
€1,227.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 5" |
| Bumpers | W, O Bumpers |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Full Threaded Rod-End |
| Cylinder Material | Clear Anodized Aluminum Alloy |
| Cylinder Style | Tie Rod, NFPA |
| Design | Piston Magnet Lipseal Piston Full Male Rod End Thread NFPA Interchangeable Model Repairable |
| Dia. | 1" No.1 |
| End Type | Single Rod |
| Filter Media | Filtered Air |
| Filtration Requirement | 40 μm |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Min. Temp. | -10°F |
| Mounting | Cap Detachable Clevis Mounting (NFPA MP2) |
| Mounting Mode | Cap Detachable Clevis Mounting NFPA MP2 |
| Piston Material | Aluminum |
| Piston No. | 1 |
| Port Size | 0.5 |
| Port Type | NPTF |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod End Style | Male, Full |
| Rod Material | Case Hardened Chrome Plated Carbon Steel |
| Rod Thread Type | UNF |
| Seal Material | Nitrile |
| Seal Type | Lip Seal |
| Series | 4MA Series |
| Shape | Rectangular |
| Stroke Length | 23 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Mounting | Rod Thread Type | Port Size | Port Type | Piston No. | Bumpers | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5.00BB4MA3U14AC07.00 | 7" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | €940.11 | |
 |
5.00BC4MA2U34A18.00 | 18" | 1 3/8" | Cap Detachable Clevis Mounting (NFPA MP2) | UNF | 0.5 | NPTF | 3 | W, O Bumpers | €1,259.38 | |
 |
5.00BE4MAU18AC10.00 | 10" | 1" , 1" No.1 | Cap Detachable Eye Mounting (NFPA MP4) | - | - | - | - | - | €1,002.12 | |
 |
5.00CC4MA2U38AC24.00 | 24" | 1 3/8" | Side Lug Mounting (NFPA MS2) | - | - | - | - | - | €1,539.76 | |
 |
5.00CBB4MA3U19AC04.75 | 4 3/4" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | €956.53 | |
 |
5.00CCBT4MA3U14AC12.00 | 12" | 1" , 1" No.1 | Side End Angle Mounting (NFPA MS1) | - | - | - | - | - | €1,283.92 | |
 |
5.00BB4MAU14A19.00 | 19" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | €1,130.22 |
