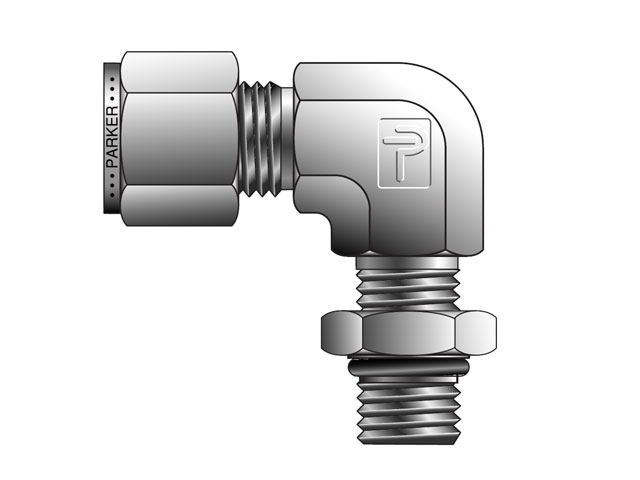

PARKER 4M5SEL4-316 Compression Fitting, Two Ferrule Compression, 1/4 Inch Size, SS
Item: AF7GNHModel: 4M5SEL4-316Cross Ref: 20YY23
7 In Stock
Ships within 2 days via
5.00% off
€114.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Compressed Natural Gas, Fuels, Gases, Hydrogen, Liquids, Oils, Petroleum Oil, Steam |
| Basic Material | Stainless Steel |
| Body Material | Stainless Steel |
| Compatible Fitting Brands | A LOK |
| Compression Thread Size | 1/4" |
| Configuration Sub Type | Male Elbow Flareless, SAE |
| Configuration Type | 90° Elbow |
| Connection Size | 1/4" |
| Connection Type | A LOK x MNPT |
| End 2 Type | SAE |
| Ferrule Type | Double |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outside Dia. | 1/4" |
| Fitting Side B Connection Type | Male SAE |
| Fitting Side B Pipe Size | 1/4" |
| Grade | Grade 316 |
| Hex Size | 9/16" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 10300 psi |
| Max. Operating Temp. | 649°C |
| Max. Pressure | 10300 psi |
| Min. Operating Temp. | 255°C |
| Overall Length | 1 11/32" |
| Pipe Size | 1/4" |
| Product Datasheet | parker-4m5sel4-316.pdf |
| Resistance Properties | Corrosion Resistant, Gall Resistant |
| Series | A LOK Series |
| Shape | SAE Straight Thread Elbow |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Style | Tube To O Ring Seal |
| System Of Measurement | Imperial |
| Temp. | -425°F to +1200°F |
| Thread Size A | 7/16"-20 |
| Thread Size B | 7/16"-20 |
| Tube Fitting/adapter Type | Bite Type, A Lok Double Ferrule Flareless |
| Tube Outside Dia. | 1/4" |
| Tube Size | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 1.43 |
| Ship length (cm) | 3.41 |
| Ship width (cm) | 1.43 |
| HS code | 7412200000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Material | Max. Operating Pressure | Hex Size | Fitting Side A Tube Outside Dia. | Tube Size | End 1 Size | Fitting Side B Pipe Size | Thread Size B | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8M5SEL8-316 | Stainless Steel | 6700 psi | 3/4" | 1/2" | 1/2" | - | 1/2" | 9/16"-18 | €280.87 | |
| 12M5SEL12-316 | Stainless Steel | - | - | - | - | 3/4" | - | - | €217.43 | |
| 16M5SEL16-316 | Stainless Steel | - | - | - | - | 1" | - | - | €317.40 | |
| 6M5SEL6-316 | Stainless Steel | - | - | - | - | 3/8" | - | - | €83.49 | |
| 6M5SEL6-S | Steel | - | - | - | - | 3/8" | - | - | €56.76 |
