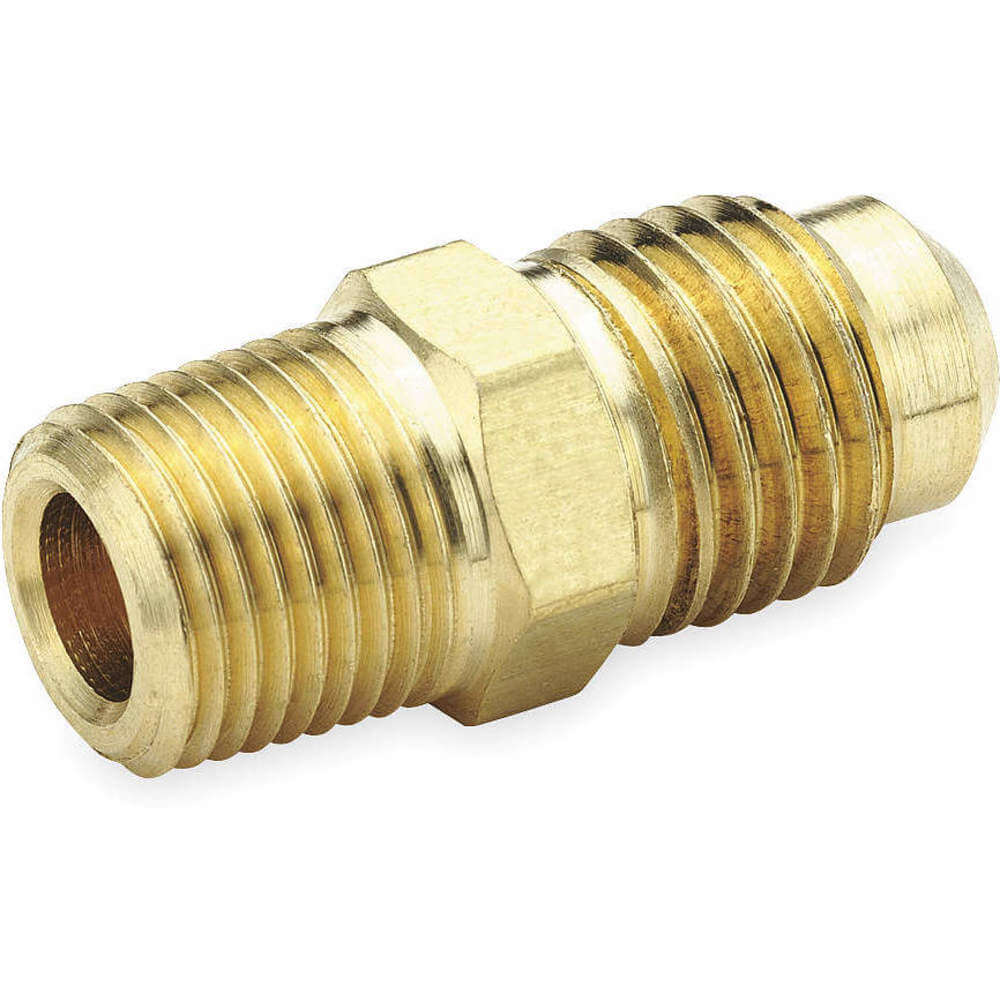

PARKER 48F-4-2 Male Connector, 1/4 Inch Outside Diameter, Brass
Item: AC2YJKModel: 48F-4-2Cross Ref: 2P178
7 In Stock
Ships within 2 days via
10.00% off
€19.95 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Connector |
| Application | LP Gases, Natural Gases |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Brass |
| Compatible Tube Material | Aluminum, Brass, Copper, Steel |
| Configuration Sub-type | Male Connector |
| Configuration Type | Flare To Male |
| Connection Type | Flare x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Flared |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Fitting Thread Size | 7/16"-20 |
| Fitting Type | Flare |
| Flare Angle | 45° |
| Flare Thread Size | 7/16"-20 |
| Hex Size | 7/16" |
| Material | Brass |
| Max. Pressure | 1400 psi |
| Maximum Operating Pressure | 1400 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -65°F |
| O-ring Material | Fluorocarbon |
| Overall Length | 1 1/32" |
| Pipe Size | 1/8" |
| Sae Reference | SAE 010102 |
| Series | 45° FLARE Series |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| System Of Measurement | Inch |
| Temp. Range | -65°F to +250°F |
| Thread 1 Type | Fine |
| Thread 2 Size | 1/8" |
| Thread 2 Type | NPT |
| Tube Size | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 1.11 |
| Ship length (cm) | 2.62 |
| Ship width (cm) | 1.11 |
| HS code | 7412200035 |
| Country of Origin | US |
Product Variants
| Model | Max. Pressure | Pipe Size | Overall Length | Hex Size | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Maximum Operating Pressure | Tube Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48F-10-12 | 450 psi to 2800 psi | 3/4" | 2 1/32" | 7/8" | 5/8" | 3/4" | 650 psi | 5/8" | 10 | €177.73 | |
| 48F-10-4 | 450 psi to 2800 psi | 1/4" | 1 25/32" | 7/8" | 5/8" | 1/4" | 650 psi | 5/8" | 10 | €197.05 | |
| 48F-10-6 | 450 psi to 2800 psi | 3/8" | 1 25/32" | 7/8" | 5/8" | 3/8" | 650 psi | 5/8" | 10 | €121.17 | |
| 48F-12-12 | 450 psi to 2800 psi | 3/4" | 2 5/32" | 1 1/16" | 3/4" | 3/4" | 550 psi | 3/4" | 10 | €205.07 | |
| 48F-12-8 | 450 psi to 2800 psi | 1/2" | 2 5/32" | 1 1/16" | 3/4" | 1/2" | 550 psi | 3/4" | 10 | €227.23 | |
| 48F-3-2 | 450 psi to 2800 psi | 1/8" | 1" | 7/16" | 3/16" | 1/8" | 1900 psi | 0.188" | 10 | €29.01 | |
| 48F-3-4 | 450 psi to 2800 psi | 1/4" | 1 5/32" | 9/16" | 3/16" | 1/4" | 1900 psi | 0.188" | 10 | €95.70 |
