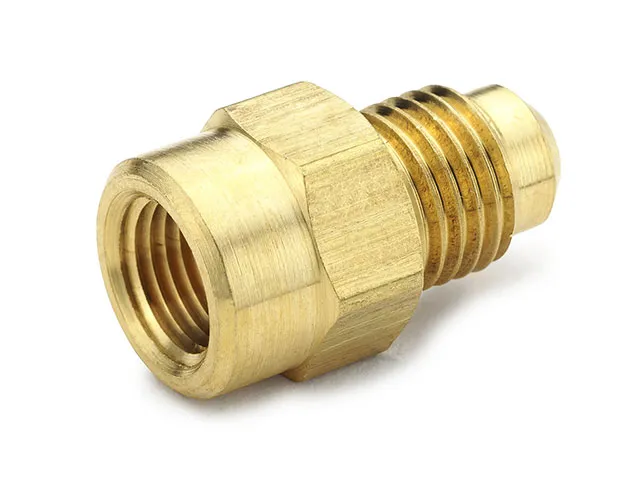

PARKER 46F-10-6 Brass Flare Fittings
Item: CT7EYGModel: 46F-10-6Cross Ref: 791AE8
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Compatible Tube Material | Aluminum, Brass, Copper, Welded Steel |
| Configuration Sub-type | Female Connector |
| Configuration Type | Flare To Female |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Flared |
| Fitting Side A Tube Outer Diameter | 5/8" |
| Fitting Side B Connection Type | FNPT |
| Fitting Side B Pipe Size | 3/8" |
| Fitting Thread Size | 3/8" |
| Flare Angle | 45° |
| Hex Size | 7/8" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | -65°F |
| O-ring Material | Fluorocarbon |
| Operating Temp. Range | -65°F to +250°F |
| Outer Dia. 1 | 5/8" |
| Overall Length | 1 9/16" |
| Pressure Rating | 650 psi |
| Sae Reference | SAE 010103 |
| Series | 45° FLARE Series |
| Specific Fitting Shape | Straight Connector |
| System Of Measurement | Inch |
| Thread 1 Size | 7/8"-14 |
| Thread 1 Type | Fine |
| Thread 2 Size | 3/8" |
| Thread 2 Type | NPT |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 3.97 |
| Ship width (cm) | 2.22 |
| Country of Origin | US |
Product Variants
| Model | Pipe Size | Tube Size | Fitting Side A Connection Type | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Fitting Thread Size | Overall Length | Specific Fitting Shape | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 46F-3-2 | 1/8" | 0.188" | Inverted Flare | 3/16" | 1/8" | 3/8"-24 | 15/16" | Straight Adapter | 10 | €86.73 | |
| 46F-4-4 | 1/4" | 1/4" | Flared | 1/4" | 1/4" | 7/16"-20 | 1 7/32" | Straight Adapter | 10 | €70.70 | |
| 46F-4-6 | 3/8" | 1/4" | Inverted Flare | 1/4" | 3/8" | 7/16"-20 | 1 1/4" | Straight Adapter | 10 | €122.57 | |
| 46F-5-2 | 1/8" | 0.312" | Inverted Flare | 5/16" | 1/8" | 1/2"-20 | 1 1/16" | Straight Adapter | 10 | €88.15 | |
| 46F-5-4 | 1/4" | 0.312" | Inverted Flare | 5/16" | 1/4" | 1/2"-20 | 1 1/4" | Straight Adapter | 10 | €101.83 | |
| 46F-6-2 | 1/8" | 3/8" | Inverted Flare | 3/8" | 1/8" | 5/8"-18 | 1 3/32" | Straight Adapter | 10 | €112.20 | |
| 46F-6-8 | 1/2" | 3/8" | Inverted Flare | 3/8" | 1/2" | 5/8"-18 | 1 19/32" | Straight Adapter | 10 | €157.93 |
