Product Specifications:
| Item | Fitting |
| Application | Air, Flammable Liquid, Freon, Inert Gases, Non-Combustible Gases, Non-Potable Water |
| Compatible Auto Systems | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines |
| Compatible Tube Material | Aluminum, Brass, Copper, Welded Steel |
| Compatible Tube Outer Dia. | 1/2" |
| Compatible Tube Size (od) | 1/2" |
| Configuration Sub-type | Nut |
| Configuration Type | Auxiliary |
| Fitting Material | Brass |
| Fitting Thread Size | 3/4"-16 |
| Flare Angle | 45° |
| Hex Size | 7/8" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | -65°F |
| Operating Temp. Range | -65°F to +250°F |
| Overall Length | 1" |
| Pressure Rating | 650 psi |
| Sae Reference | SAE 010110 |
| Series | 45° FLARE Series |
| Specific Fitting Shape | Nut |
| System Of Measurement | Inch |
| Thread 1 Size | 3/4"-16 |
| Thread 1 Type | Fine |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.22 |
| Country of Origin | US |
Product Variants
| Product | Model | Hex Size | Overall Length | Specific Fitting Shape | Fitting Side A Connection Type | Fitting Side A Tube Outer Diameter | Fitting Thread Size | Fitting Side B Pipe Size | Fitting Side B Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

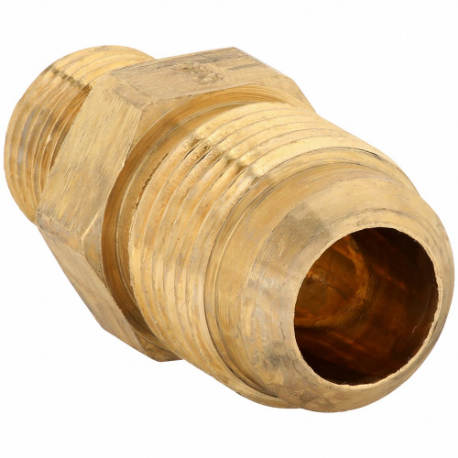

L48F-10-6 | 7/8" | 1 9/16" | Straight Connector | Flared | 5/8" | 3/8" | 3/8" | - | €17.36 | |
![]() |

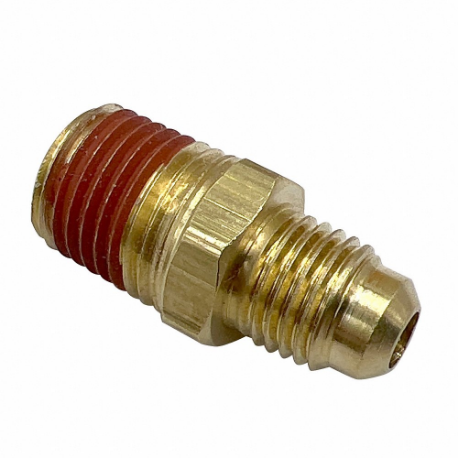

VS48F-6-6 | 11/16" | 1 13/32" | Straight Connector | Flared | 3/8" | 3/8" | 3/8" | - | €6.24 | |
![]() |

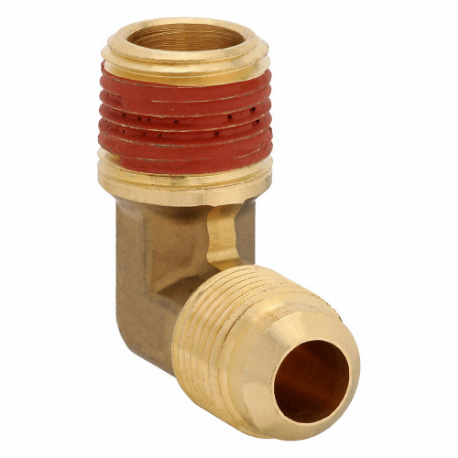

VS149F-8-8 | 0.609" | 2 21/32" | 90° Forged Elbow Adapter | Flared | 1/2" | 1/2" | 1/2" | MNPT | €19.79 | |
![]() |

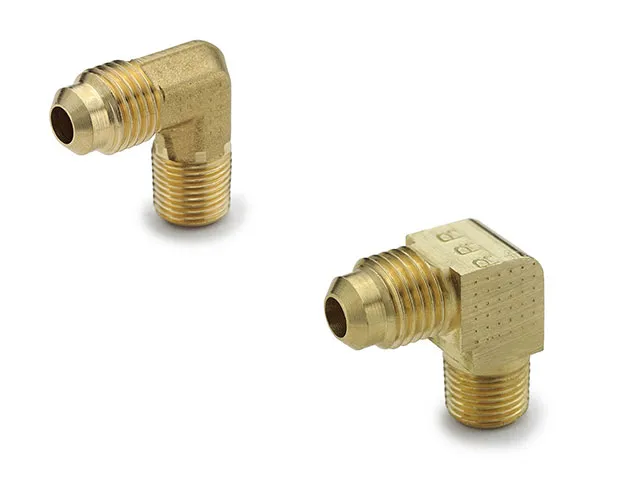

149F-4-8 | 0.594" | 2 9/32" | 90° Forged Elbow Adapter | Flared | 1/4" | 1/2" | 1/2" | - | €31.84 | |
![]() |

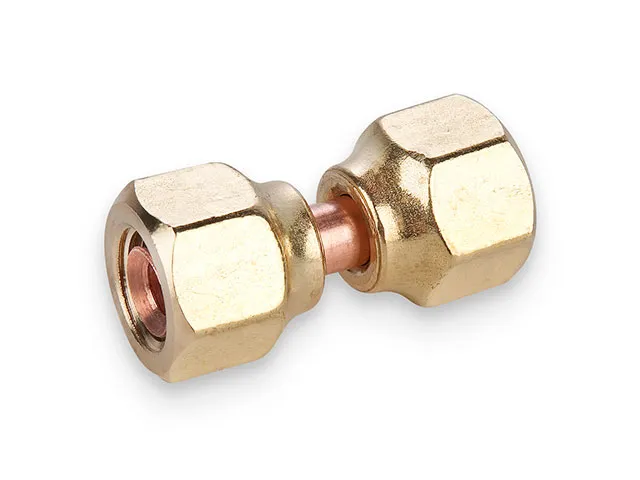

14FSV-6 | 13/16" | 1 1/2" | Nut | NPT | 3/8" | - | - | NPT | €17.17 | |
![]() |
VS249F-8-6 | 0.773" | 2 5/16" | 90° Extruded Elbow Adapter | Flared | 1/2" | 3/8" | 3/8" | - | €21.25 | |
![]() |

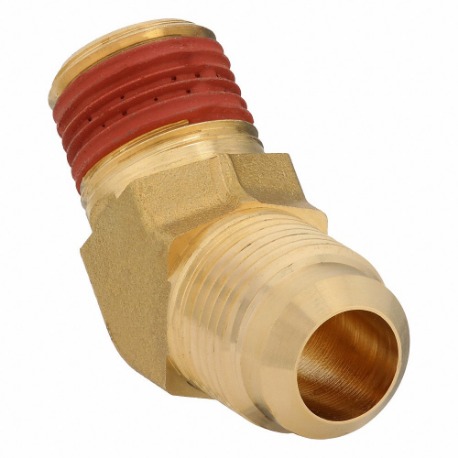

VS159F-8-6 | 0.59" | 2" | 45° Forged Elbow Adapter | Flared | 1/2" | 3/8" | 3/8" | MNPT | €17.04 |
Explore Products
- PASS AND SEYMOUR CSB15AC3-W Toggle Switch, 120V, 3 Way, White
- CONTINENTAL PLB07525-25 Air Hose, 3/4 Inch Hose Inside Dia, Blue, 250 PSI
- MAIN FILTER INC. MF0875413 0160EAM252F1 Interchange Hydraulic Filter, Glass, 25 Micron Rating, Viton Seal, 4.52 Inch Height
- APPLETON ELECTRIC KPSL15150G48LUP Light Fixture, 150W
- JUSTRITE 28338 JEN28338BL Ground Mat, 6 x 6 Feet Size
- WAHL 441-101F Non-Reversible Temp Indicator, Horizontal Strip, 4 Points
- CLEVELAND C60014 0 Corner Radius End Mill, 4 Flutes, 1/4 Inch Milling Dia, 1/4 Inch Shank Dia
- MJ MAY 461V-PB-1210 Film Stock, 10 Feet Length x 12 Width x 0.005 Inch Thickness, 180 Deg F Max Temp
Popular Search Queries
Explore More
- HASSAY SAVAGE CO.
- KEYSHAFT
- LUMAPRO
- VORTEC
- NVENT
- Dust Collector Accessories
- Graduated Cylinders
- Flow Control Check Valves
- Pushbutton Lamp Modules
- Coil Bolts
- IRONCLAD Vibration Impact Gloves
- SALISBURY Class 0 Electrical Gloves Kit, 11 Inch, Black
- KEO Combined Drills And Countersinks, Plain Type, 60 Degrees Countersink Angle, T15 High Speed Steel
- DWYER INSTRUMENTS 1211 Series Slack Tube Manometers
- ANVIL 261P Series Riser Clamps, Primed Steel
- AIR HANDLER V-Bank Minipleat W/Gasket, MERV 11
- LIFT PRODUCTS LPT-040-36 Series, Scissor Lift Table
- SPEARS VALVES PVC Schedule 80 Fitting Encapsulated Special Reinforced Female Adapters, Socket x ESR Fipt
- RULAND MANUFACTURING MW Series Beam Couplings, Four-Beam Clamp Style, Inch to Metric
- MORSE CUTTING TOOLS 5952 Series Single End Mills, 2-Flute Ball Nose, Solid Carbide
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

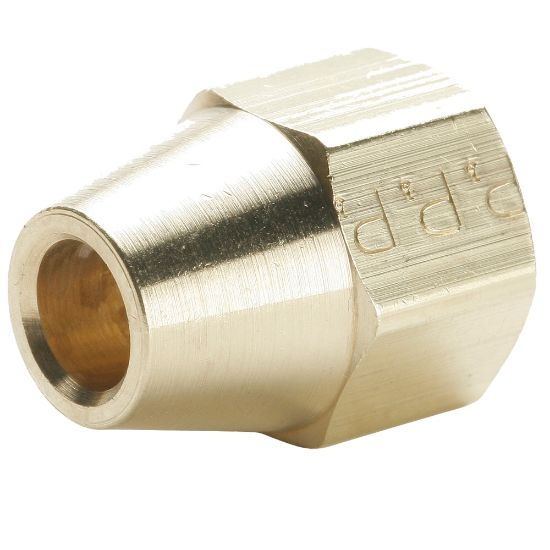

PARKER 41FX-8 Brass Flare Fittings
