PARKER 4-4 WBZ-B Compression Fitting, Single Ferrule Compression, 1/4 Inch Size, Brass
Item: AB2ZWTModel: 4-4 WBZ-BCross Ref: 1PZZ1
7 In Stock
Ships within 2 days via
5.00% off
€40.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Gas, Liquid |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Union |
| Body Material | Brass |
| Compatible Fitting Brands | CPI |
| Compression Thread Size | 7/16" |
| Connection Size | 1/4" |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outside Dia. | 1/4" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outside Dia. | 1/4" |
| Hex Size | 5/8" |
| Material | Brass |
| Max. Operating Temp. | 400°F |
| Min. Operating Temp. | 40°F |
| Overall Length | 2 9/32" |
| Product Datasheet | parker-4-4-wbz-b.pdf |
| Resistance Properties | Corrosion Resistant, Vibration-Resistant |
| Shape | Bulkhead Union |
| Specific Fitting Shape | Straight Bulkhead Union |
| Specific Pipe Fitting Shape | Bulkhead Union |
| Style | Tube To Tube |
| System Of Measurement | Imperial |
| Temp. | -40°F to +400°F |
| Thread Size A | 7/16"-20 |
| Thread Size B | 7/16"-20 |
| Tube Fitting Material | Brass |
| Tube Outside Dia. | 1/4" |
| Tube Size | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.59 |
| Ship length (cm) | 5.79 |
| Ship width (cm) | 1.59 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Material | Fitting Material | Hex Size | Fitting Side A Tube Outside Dia. | Tube Size | Temp. | Thread Size B | Fitting Side B Tube Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

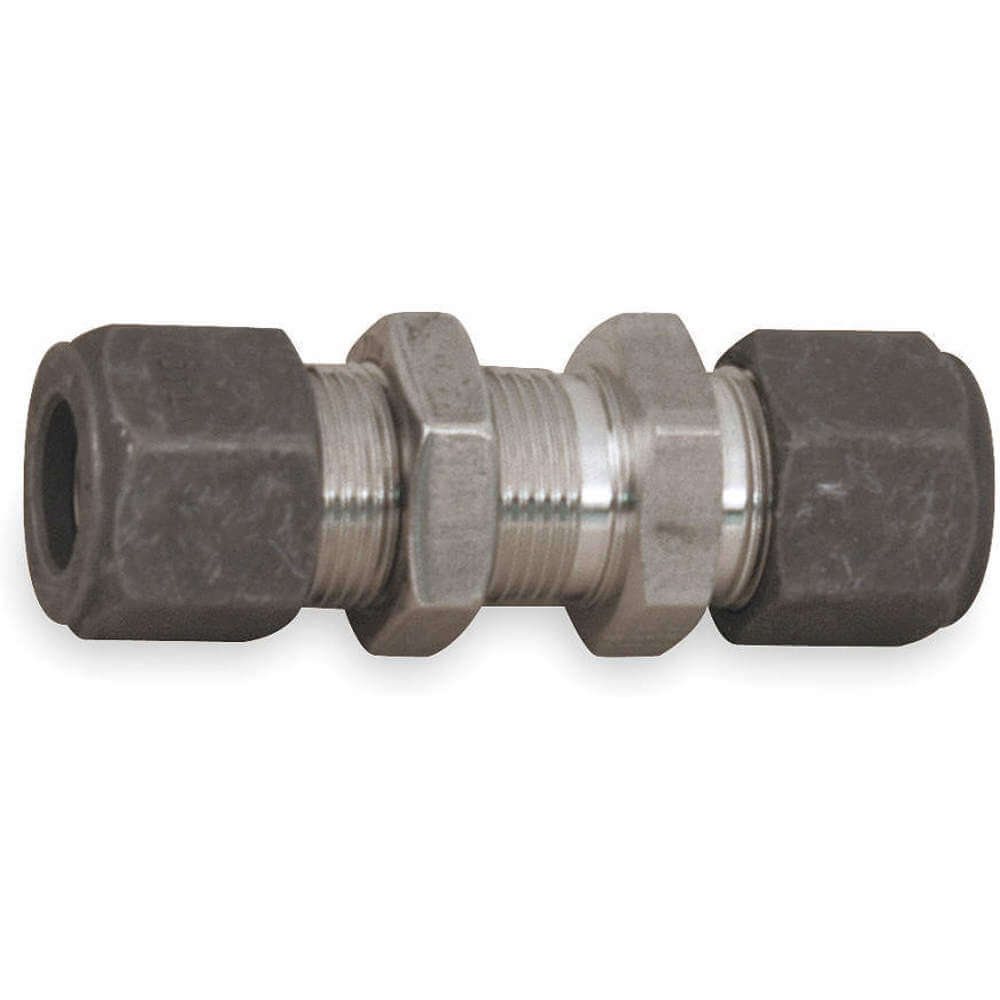

| 4-4 WBZ-SS | Stainless Steel | Stainless Steel | 5/8" | 1/4" | 1/4" | -425°F to +1200°F | 7/16"-20 | 1/4" | €89.00 | |
| 6-6 WBZ-SS | Stainless Steel | Stainless Steel | 3/4" | 3/8" | 3/8" | -425°F to +1200°F | 9/16"-20 | 3/8" | €123.54 | |
| 8-8 WBZ-SS | Stainless Steel | Stainless Steel | 15/16" | 1/2" | 1/2" | -425°F to +1200°F | 3/4"-20 | 1/2" | €192.35 | |
| 6-6 WBZ-B | Brass | Brass | 3/4" | 3/8" | 3/8" | -40°F to +400°F | 9/16"-20 | 3/8" | €54.19 | |
| 10-10 WBZ-B | Brass | Brass | 1 1/16" | 5/8" | 5/8" | -40°F to +400°F | 7/8"-20 | 5/8" | €183.18 |
