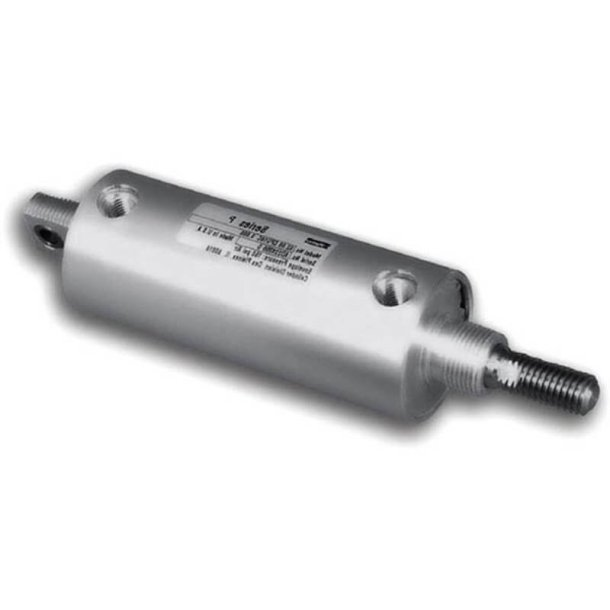

PARKER 4.00NPLU16A03.00 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€1,385.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Threaded Rod End , 2 X 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Threaded Rod-End |
| Design | Lipseal Piston Repairable |
| Dia. | 1" |
| Function | Double-Acting Aluminium Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Low-Friction Bronze Bearing Lightweight Aluminium Heads And Caps Chrome-Plated Steel Piston Rod |
| Max. Air Service Pressure | 150 psig |
| Mounting | No Tang Mounting |
| Mounting Mode | NO Tang Mounting |
| Rod Dia. | 1" |
| Shape | Cylindrical |
| Stroke Length | 3" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
