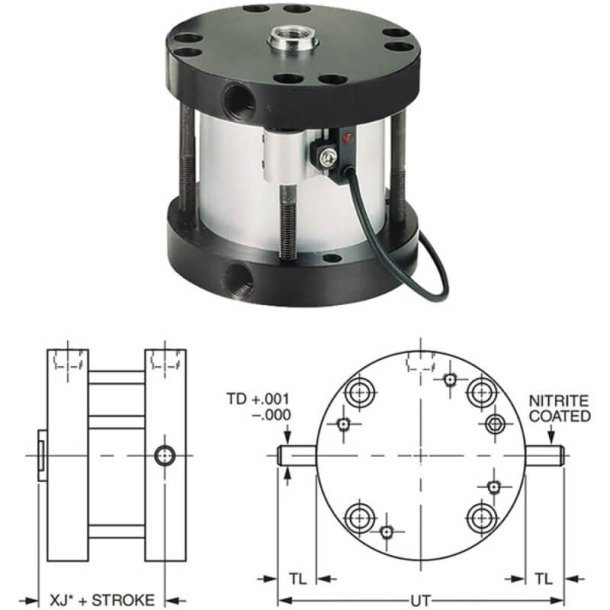

PARKER 4.002RLP94.00 Pneumatic Cylinder
Get it by Thursday, Aug 20
€711.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +200°F |
| Ambient Air Temp. For Operation | -10°F to +200°F |
| Application Type | General Industry Conveyors Packaging Assembly |
| Bore Size | 4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 3/4"-16 UNF Female Threaded Rod-End |
| Design | Buna-N Piston Quad Seal Anodized Aluminium Head & Cap Permanent Lubrication Repairable |
| Dia. | 1" |
| Function | Double-Acting Compact Aluminium Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Coated Aluminium Body High Density Iron Rod Bearing Anodized Aluminium Alloy Heads And Caps Hard Chrome-Plated High-Strength Steel Rod |
| Max. Air Pressure | 145 psig |
| Max. Air Service Pressure | 145 psig |
| Mounting | Cap Trunnion Mounting |
| Mounting Mode | Cap Trunnion Mounting |
| Rod Dia. | 1" |
| Shape | Cylindrical |
| Stroke Length | 4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Rod Dia. | Max. Air Pressure | Bore Size | Shape | Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4.00NLPH90.08 | 2/25" | Basic Mounting (Standard) | 145 psig | 1" | 145 psig | 4" | Cylindrical | 1" | €592.49 | |
 |
4.004RLPR91.00 | 1" | Cap Bolt Mounting | 145 psig | 1" | 145 psig | 4" | Cylindrical | - | €646.73 | |
 |
4.00NLPB44.25 | 4 1/4" | Basic Mounting (Standard) | 145 psig | 1" | 145 psig | 4" | Cylindrical | 1" | €784.97 | |
 |
4.004FLPE90.50 | 1/2" | Head Bolt Mounting | 145 psig | 1" | 145 psig | 4" | Cylindrical | 1" | €714.68 | |
 |
4.00NLPL90.50 | 1/2" | Basic Mounting (Standard) | 145 psig | 1" | 145 psig | 4" | Cylindrical | 1" | €611.93 | |
 |
4.004FLP41.00 | 1" | Head Bolt Mounting | 145 psig | 1" | 145 psig | 4" | Cylindrical | - | €631.38 | |
 |
4.00NLPC94.00 | 4" | Basic Mounting (Standard) | 145 psig | 1" | 145 psig | 4" | Cylindrical | 1" | €710.86 |
