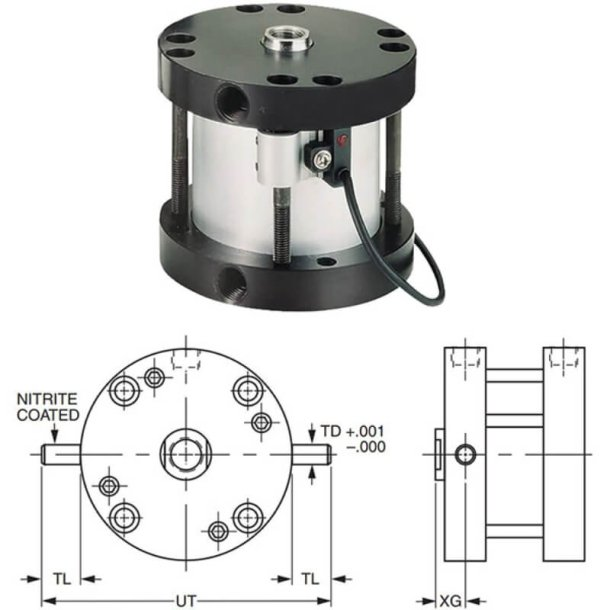

PARKER 4.002FLPM92.00 Pneumatic Cylinder
Get it by Thursday, Aug 20
€733.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +140°F |
| Ambient Air Temp. For Operation | -10°F to +140°F |
| Application Type | General Industry Conveyors Packaging Assembly |
| Bore Size | 4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 3/4"-16 UNF Female Threaded Rod-End |
| Design | Piston Magnet Buna-N Piston Quad Seal Anodized Aluminium Head & Cap Permanent Lubrication Repairable |
| Dia. | 1" |
| Function | Double-Acting Compact Aluminium Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Coated Aluminium Body High Density Iron Rod Bearing Anodized Aluminium Alloy Heads And Caps Hard Chrome-Plated High-Strength Steel Rod |
| Max. Air Pressure | 145 psig |
| Max. Air Service Pressure | 145 psig |
| Mounting | Head Trunnion Mounting |
| Mounting Mode | Head Trunnion Mounting |
| Rod Dia. | 1" |
| Shape | Cylindrical |
| Stroke Length | 2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Rod Dia. | Max. Air Pressure | Bore Size | Shape | Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4.004RLPMR92.00 | 2" | Cap Bolt Mounting | 145 psig | 1" | 145 psig | 4" | Cylindrical | 1" | €795.08 | |
 |
4.001LPM94.00 | 4" | Cap Pivot Eye Mounting | 145 psig | 1" | 145 psig | 4" | Cylindrical | 1" | €911.06 | |
 |
4.004FLPM91.50 | 1 1/2" | Head Bolt Mounting | 145 psig | 1" | 145 psig | 4" | Cylindrical | 1" | €694.67 | |
 |
4.004RLPMB96.00 | 6" | Cap Bolt Mounting | 145 psig | 1" | 145 psig | 4" | Cylindrical | 1" | €896.35 | |
 |
4.004FLPM93.00 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
4.001LPM92.75 | 2 3/4" | Cap Pivot Eye Mounting | 145 psig | 1" | 145 psig | 4" | Cylindrical | 1" | €872.87 | |
|
4.00NLPMVB44.00 | - | - | - | - | - | - | - | - | - | RFQ
|
