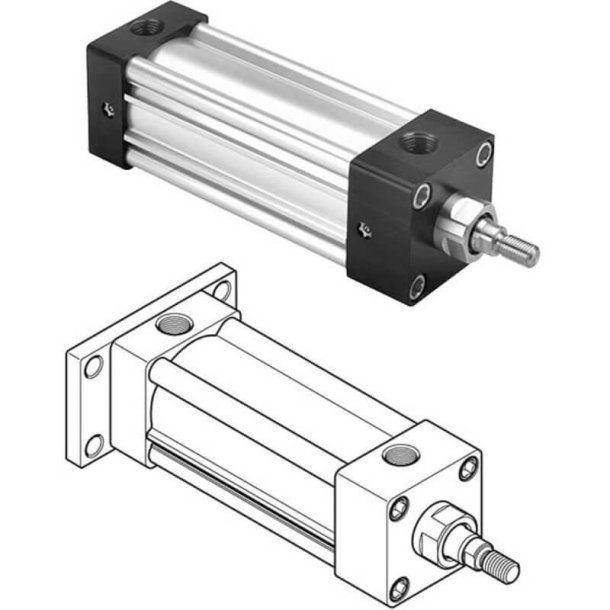

PARKER 3.25CH4MAU14A03.00 Pneumatic Cylinder
3"
Get it by Tuesday, Aug 25
€540.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 3 1/4" |
| Bumpers | W, O Bumpers |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-End |
| Cylinder Bore Size | 3 1/4" |
| Cylinder Material | Clear Anodized Aluminum Alloy |
| Cylinder Style | Tie Rod, NFPA |
| Design | Piston Magnet "Lipseal" Piston Small Male Rod-End Thread Cushion At Head End Only Nfpa Interchangeable Model Repairable, Piston Magnet LipSeal Piston Small Male Rod End Thread Cushion At Head End Only NFPA Interchangeable Model Repairable |
| Dia. | 1" No.1 |
| End Type | Single Rod |
| Filter Media | Filtered Air |
| Filtration Requirement | 40 μm |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Min. Temp. | -10°F |
| Mounting | Cap Rectangular Flange Mounting (NFPA MF2) |
| Mounting Mode | Cap Rectangular Flange Mounting NFPA MF2 |
| Piston No. | 1 |
| Port Size | 0.5 |
| Port Type | NPTF |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod End Style | Male, Small |
| Rod End Thread | 3/4"-16 |
| Rod Material | Case Hardened Chrome Plated Carbon Steel |
| Rod Thread Type | UNF |
| Seal Material | Nitrile |
| Seal Type | Lip Seal |
| Series | 4MA Series |
| Shape | Rectangular |
| Stroke Length | 3" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Mounting | Rod End Thread | Rod End Style | Max. Air Service Pressure | Bore Size | Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3.25CBB4MAU18AC60.00 | 60" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | 250 psig | 3 1/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €1,540.83 | |
 |
3.25CB4MAU14A14.00 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
3.25CTEF4MAU14A24.00 | 24" | 1" , 1" No.1 | Sleeve Nut With Side Tap Mounting (NFPA MX5, MS4) | - | - | 250 psig | 3 1/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €841.44 | |
 |
3.25CJ4MAU14AC30.00 | 30" | 1" , 1" No.1 | Head Rectangular Flange Mounting (NFPA MF1) | - | - | 250 psig | 3 1/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €1,032.16 | |
|
3.25C4MAU14AC17.00 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
3.25CBC4MAU16AC07.00 | 7" | 1" , 1" No.1 | Cap Detachable Clevis Mounting (NFPA MP2) | - | - | 250 psig | 3 1/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €686.86 | |
 |
3.25CF4MAU14AC05.00 | 5" | 1" , 1" No.1 | Side Tap Mounting (NFPA MS4) | - | - | 250 psig | 3 1/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €589.70 |
