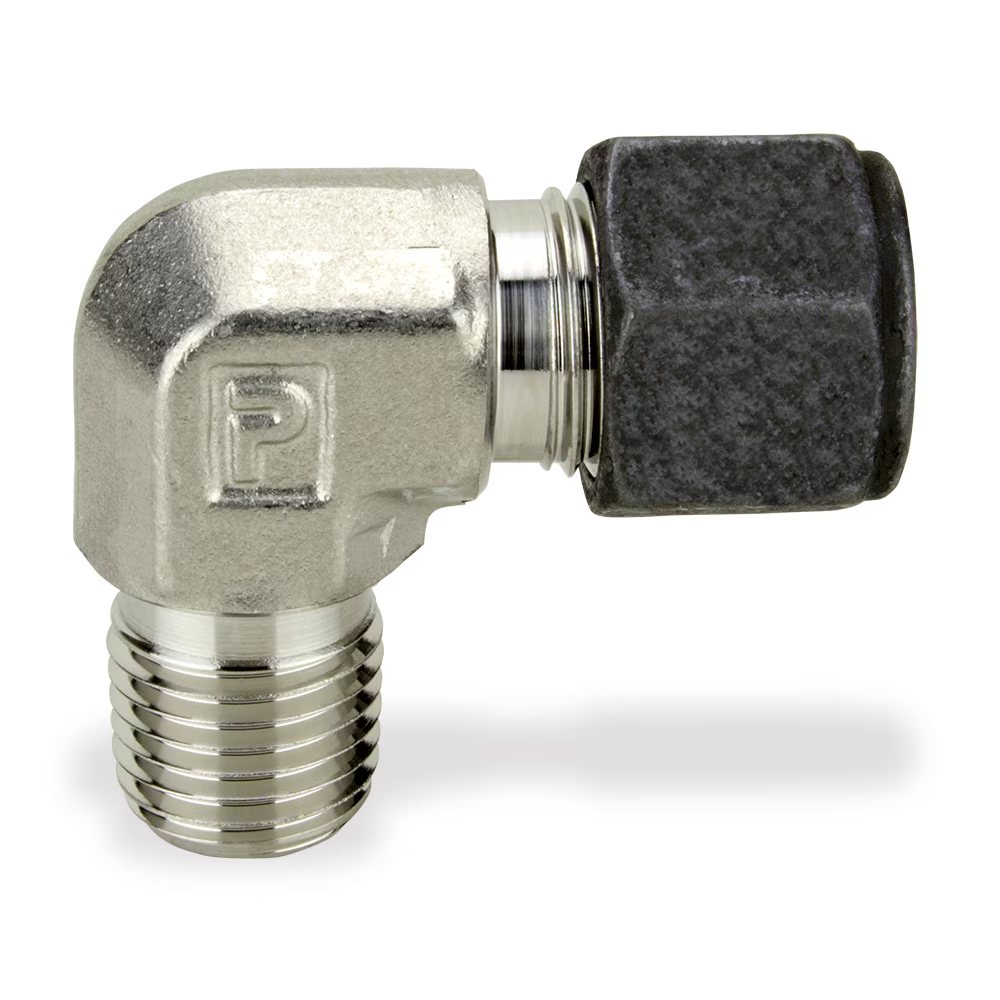

PARKER 3-2 CBZ-SS Instrumentation Tube Fitting, 90 Deg. Elbow, 3/16 Inch
Get it by Thursday, Aug 20
€66.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Straight Thread Connector |
| Angle | 90° |
| Connection Type | 3/16" Compression Connection 1/8" NPT Male Thread |
| Design | Ext. Hexthreaded Designsingle Ferrule Compression#Cbz Model |
| End Connection | Compression X MNPT |
| Equivalent To | 32CBZSS3-2-CBZ-SS |
| Fitting Type | Male Elbow |
| Function | Pneumatic 90° Elbow Angled Fitting |
| Main Function | Air Fitting |
| Material | Stainless Steel , Stainless Steel 316 Body |
| No. Of Inlet | 1 |
| No. Of Outlet | 1 |
| Product Datasheet | parker-10-pnbz-ss.pdf |
| Shape | L |
| Sub Range Name | Cbz Series |
| Tube Outside Dia. | 0.1875 |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Size | Hex Size | Fitting Side A Tube Outside Dia. | Fitting Side B Pipe Size | Basic Material | Thread Size A | Max. Operating Temp. | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4-2 CBZ-SS | 1/4" | 1/2" | 1/4" | 1/8" | Metal | 7/16"-20 | 1200°F | 425°F | €59.33 | |
| 4-4 CBZ-SS | 1/4" | 9/16" | 1/4" | 1/4" | Metal | 7/16"-20 | 1200°F | -255°C | €64.24 | |
| 6-4 CBZ-SS | 3/8" | 5/8" | 3/8" | 1/4" | Metal | 9/16"-20 | 1200°F | 425°F | €77.91 | |
| 6-6 CBZ-SS | 3/8" | 11/16" | 3/8" | 3/8" | Metal | 9/16"-20 | 1200°F | 425°F | €94.34 | |
| 8-8 CBZ-SS | 1/2" | 13/16" | 1/2" | 1/2" | Metal | 3/4"-20 | 1200°F | 425°F | €130.39 | |
| 8-4 CBZ-SS | 1/2" | 13/16" | 1/2" | 1/4" | Metal | 3/4"-20 | 1200°F | 425°F | €146.03 | |
| 12-12 CBZ-SS | 3/4" | 1 1/16" | 3/4" | 3/4" | Metal | 1-20 | 1200°F | 425°F | €222.49 |
