PARKER 270NTA-3-2 Female Elbow, Brass, 3/16 Inch Tube OD, 1/8 Inch Pipe Size, Compression x FNPT
Item: CT7EQEModel: 270NTA-3-2Cross Ref: 48LY21
7 In Stock
3/16"
1/8"
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Elbow |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Compatible Tube Material | Nylon |
| Configuration Sub-type | Female Elbow 90° |
| Configuration Type | Tube To Female |
| Fits Brand | NTA |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Dia. | 3/16" |
| Fitting Side A Tube Outer Diameter | 3/16" |
| Fitting Side B Connection Type | FNPT |
| Fitting Side B Pipe Size | 1/8" |
| Includes Pre-applied Thread Sealant | Yes |
| Length | 0.969" |
| Material | Brass |
| Max. Operating Pressure | 150 psi |
| Maximum Operating Temperature | 200°F |
| Mfr. Series | NTA |
| Minimum Operating Temperature | 40°F |
| Operating Temp. Range | -40°F to +200°F |
| Outer Diameter 1 | 3/16" |
| Overall Length | 31/32" |
| Pipe Size | 1/8" |
| Pressure Range | 0 psi to 150 psi |
| Product Datasheet | parker-270nta-3-2.pdf |
| Series | AIR BRAKE NTA Series |
| Specific Application | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary And Secondary, Air Lines, Cab Controls |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Inch |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Sealant Type | Vibra-Seal 516 |
| Thread Size B | 5/16"-24 |
| Tube Size | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 0.48 |
| Ship length (cm) | 2.46 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Thread Size B | Overall Length | Tube Outside Dia. | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

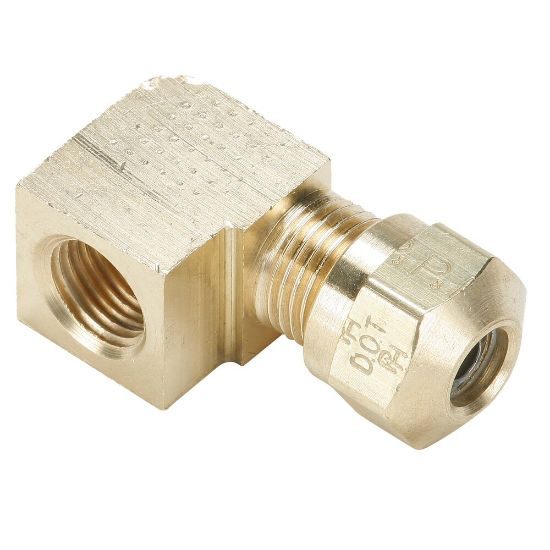

| 270NTA-8-8 | 1/2" | 1/2" | 1/2" | 1/2" | 11/16"-20 | 1 21/32" | - | 150 psi | €46.24 | |
| 270NTA-4-4 | 1/4" | 1/4" | 1/4" | 1/4" | 7/16"-24 | 1 1/8" | - | 150 psi | €42.28 | |
| 270NTA-4-2 | 1/8" | 1/4" | 1/4" | 1/8" | 7/16"-24 | 1 1/32" | - | 150 psi | €16.99 | |
| 270NTA-6-2 | 1/8" | 3/8" | 3/8" | 1/8" | 17/32"-24 | 1 9/32" | 3/8" | 150 psi | €45.83 | |

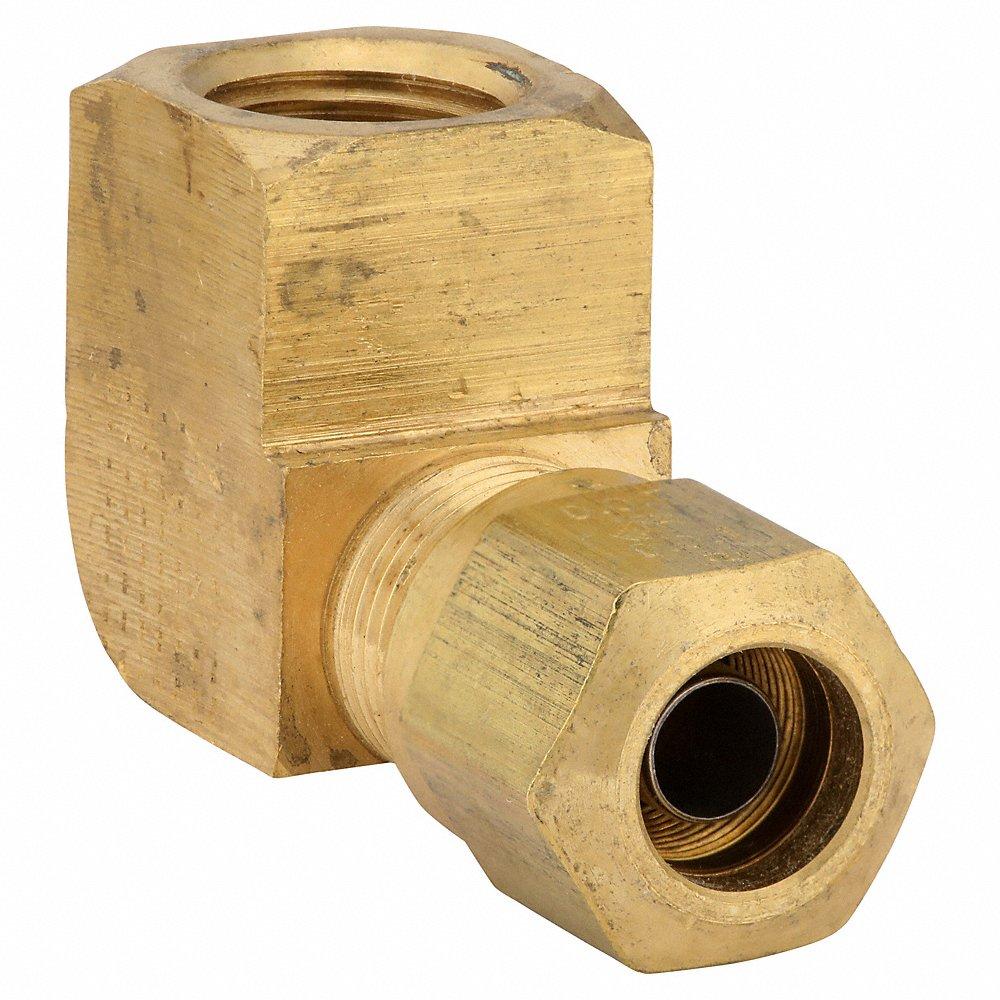

| 270NTA-6-6 | 3/8" | 3/8" | 3/8" | 3/8" | 17/32"-24 | 1 3/8" | - | 150 psi | €30.19 | |
| 270NTA-10-8 | 1/2" | 5/8" | 5/8" | 1/2" | 13/16"-18 | 1 11/16" | 5/8" | 150 psi | €57.32 | |
| 270NTA-6-4 | 1/4" | 3/8" | 3/8" | 1/4" | 17/32"-24 | 1 11/32" | - | 150 psi | €18.34 |
