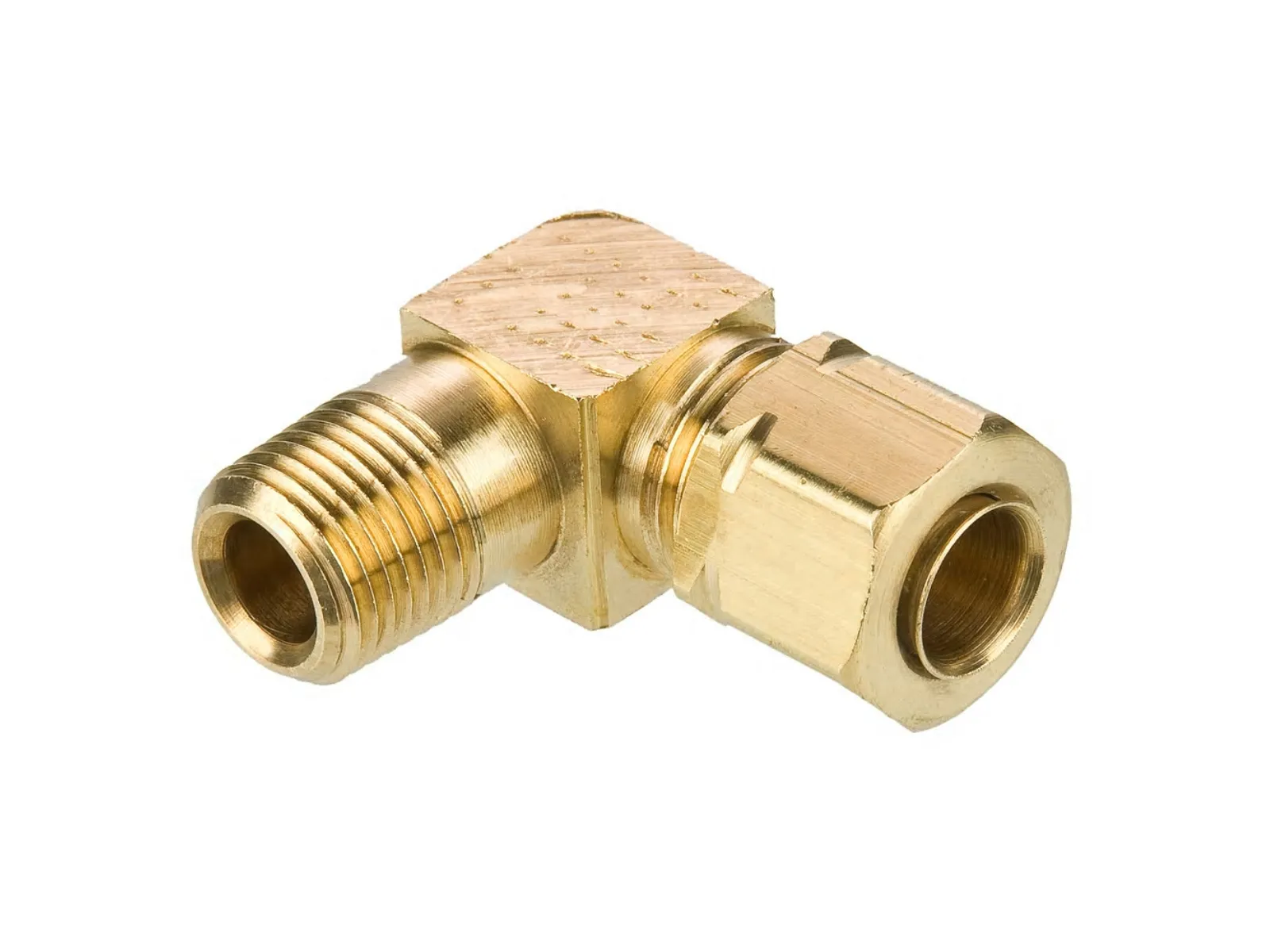

PARKER 269CA-2-2 90 Deg Elbow, 1/8 Inch Outside Diameter, Brass
Item: AE9QEJModel: 269CA-2-2Cross Ref: 6LG48
7 In Stock
Ships within 2 days via
10.00% off
€224.03 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Extruded Brass |
| Compatible Tube Material | Aluminum, Copper, FEA, PFA, TFE, Thermoplastic |
| Configuration Sub-type | Male Elbow 90° |
| Configuration Type | Tube To Male |
| Connection Type | NPTF |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Operating Temp. | 121°C |
| Max. Operating Temp. | 121 Deg C |
| Max. Pressure | 2800 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 27/32" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-269ca-2-2.pdf |
| Series | Compression Series |
| Sleeve Material | Brass |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +250°F |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Size B | 5/16"-24 |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 0.33 |
| Ship length (cm) | 2.14 |
| Ship width (cm) | 6.86 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Max. Operating Temp. | Min. Operating Temp. | Tube Size | Max. Pressure | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Thread Size B | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 269CA-3-2 | 1/8" | 121°C | -54°C | 3/16" | 1900 psi | 3/16" | 1/8" | 3/8"-24 | 1 | €8.88 | |
| 269CA-4-4 | 1/4" | 121°C | -54°C | 1/4" | 1400 psi | 1/4" | 1/4" | 7/16"-24 | 1 | €459.65 | |
| 269CA-5-4 | 1/4" | 121°C | -54°C | 5/16" | 1200 psi | 5/16" | 1/4" | 1/2"-24 | 1 | €109.07 | |

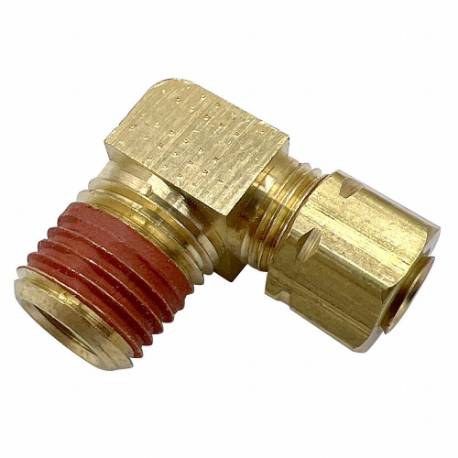

| VS269CA-2-2 | 1/8" | 250°F | -65°F | - | - | 1/8" | 1/8" | 1/8" | 1 | €11.32 |
