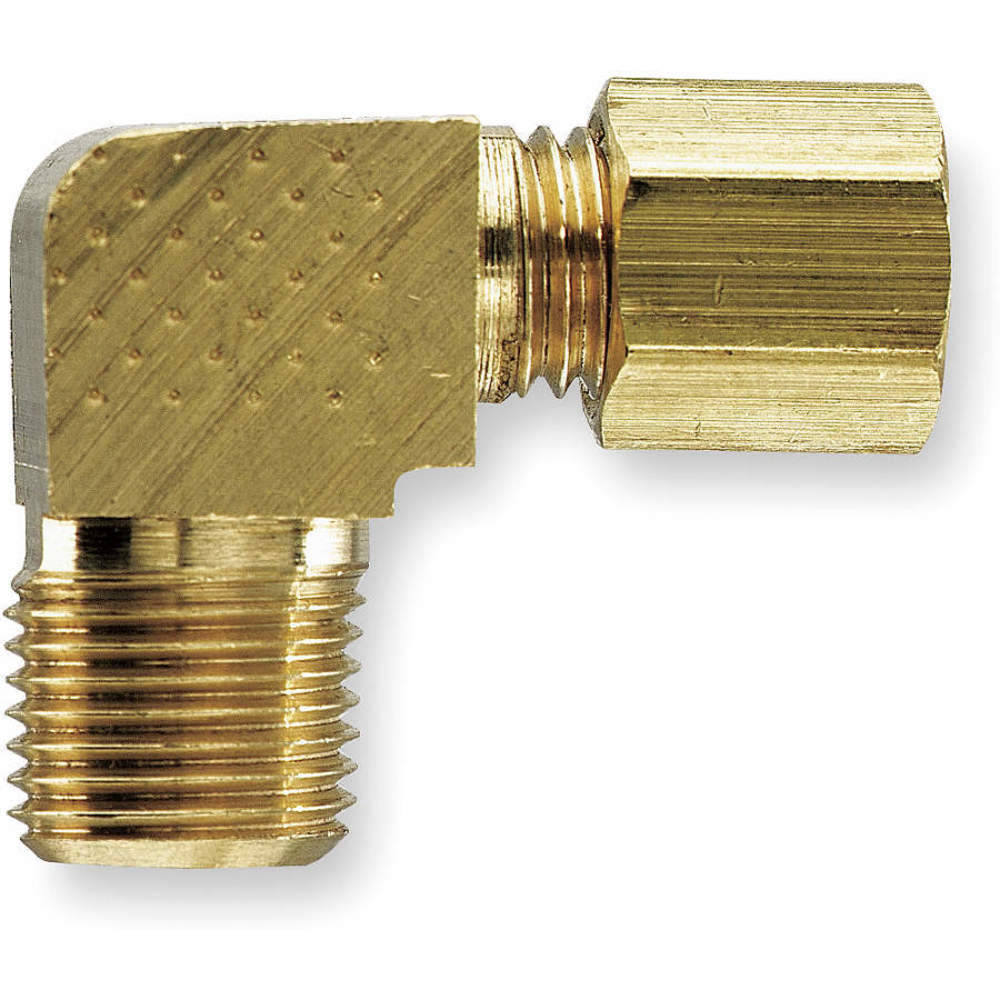

PARKER 269C-2-2 90 Deg Elbow, 1/8 Inch Outside Diameter, Brass
Item: AC2YMGModel: 269C-2-2Cross Ref: 2P248
7 In Stock
Ships within 2 days via
10.00% off
€53.59 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Extruded Brass |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Configuration Sub-type | Male Elbow 90° |
| Configuration Type | Tube To Male |
| Connection Type | Compression x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 400 psi |
| Max. Operating Temp. | 121 Deg C |
| Max. Operating Temp. | 121°C |
| Max. Pressure | 400 psi |
| Maximum Operating Pressure | 2800 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 13/16" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-269c-2-2.pdf |
| Series | Compression Series |
| Sleeve Material | Brass, Acetal |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Size B | 5/16"-24 |
| Thread Type | NPTF |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 0.06 |
| Ship length (cm) | 2.06 |
| Ship width (cm) | 4.57 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Max. Pressure | Max. Operating Pressure | Fitting Side A Tube Outer Diameter | Tube Outside Dia. | Fitting Side B Pipe Size | Thread Size B | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

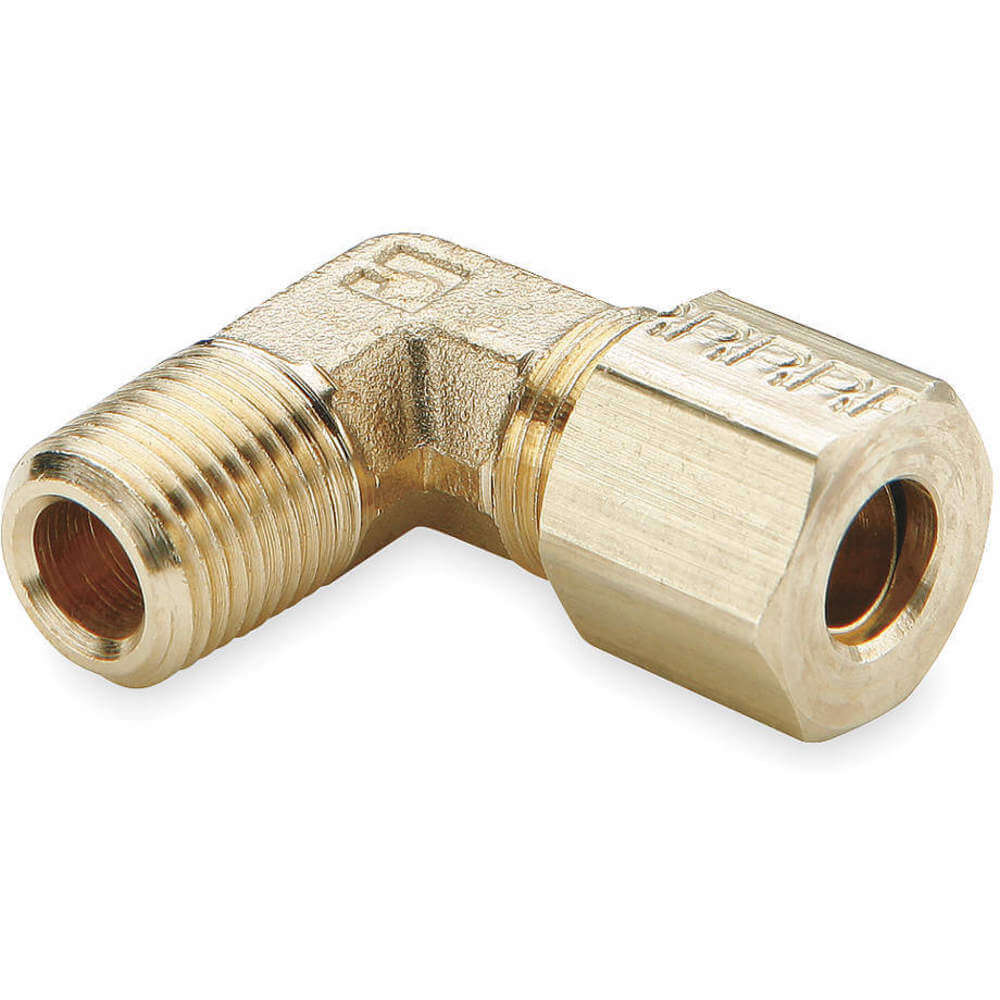

| 269C-3-2 | 1/8" | 3/16" | 75 psi to 400 psi | 400 psi | 3/16" | 0.188" | 1/8" | 3/8"-24 | 1 | €7.82 | |
| 269C-5-4 | 1/4" | 5/16" | 75 psi to 400 psi | 300 psi | 5/16" | 0.312" | 1/4" | 1/2"-24 | 1 | €112.96 | |
| 269C-4-2 | 1/8" | 1/4" | 300 psi | 300 psi | 1/4" | 1/4" | 1/8" | 7/16"-24 | 10 | €49.03 | |
| 269C-4-4 | 1/4" | 1/4" | 300 psi | 300 psi | 1/4" | 1/4" | 1/4" | 7/16"-24 | 1 | €6.89 | |
| 269C-6-4 | 1/4" | 3/8" | 200 psi | 200 psi | 3/8" | 3/8" | 1/4" | 9/16"-24 | 1 | €80.15 | |
| 269C-6-6 | 3/8" | 3/8" | 200 psi | 200 psi | 3/8" | 3/8" | 3/8" | 9/16"-24 | 10 | €112.20 |
