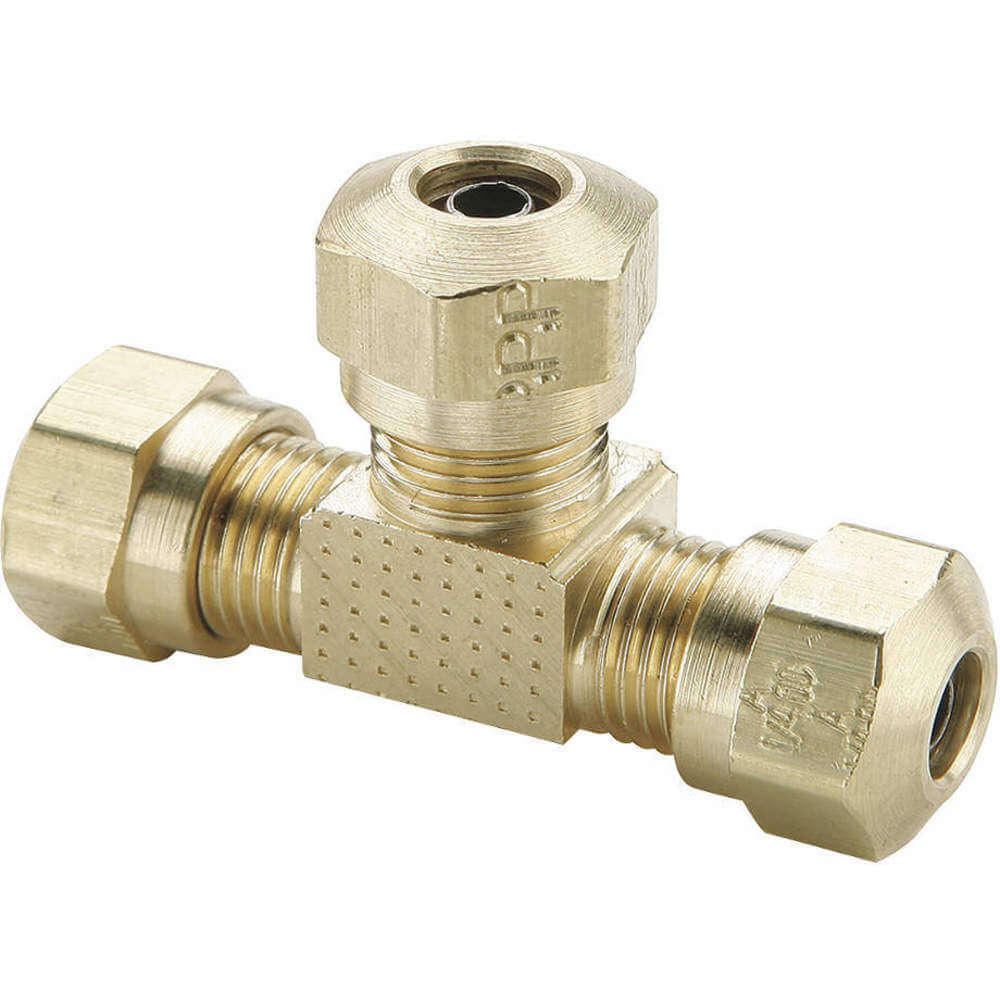

PARKER 264NTA-8 Air Brake Fitting, 1/2 Inch Outside Diameter, Brass
Item: AA3BEFModel: 264NTA-8Cross Ref: 11G345
7 In Stock
Ships within 2 days via
10.00% off
€57.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Brake Fitting |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Brass |
| Configuration Sub-type | Union Tee |
| Connection | Tube x Tube x Tube |
| Fitting Material | Brass |
| Length | 2.9" |
| Material | Brass |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 93 Deg C |
| Max. Operating Temp. | 93°C |
| Min. Operating Temp. | -40°C |
| Nut Material | Brass |
| Pressure | 150 psi |
| Pressure Range | 0 psi to 150 psi |
| Product Datasheet | parker-264nta-8.pdf |
| Sae Reference | SAE 100401 BA |
| Series | AIR BRAKE NTA Series |
| Shape | Tee |
| Sleeve Material | Brass |
| Specific Application | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary And Secondary, Air Lines, Cab Controls |
| Style | Tube To Tube |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +200°F |
| Thread Size | 11/16"-20 |
| Tube Size | 1/2" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.38 |
| Ship width (cm) | 5.08 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Size | Tube Outside Dia. | Fitting Side A Tube Outer Diameter | Fitting Side B Tube Outer Diameter | Thread Size A | Fitting Side C Tube Outer Diameter | Overall Length | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 264NTA-4 | 1/4" | 1/4" | 1/4" | 1/4" | 7/16"-24 | 1/4" | 1 29/32" | Brass | €34.32 | |
| 264NTA-6 | 3/8" | 3/8" | - | - | - | - | - | Brass | €22.21 | |
| 264NTA-10 | 5/8" | 5/8" | 5/8" | 5/8" | 13/16"-18 | 5/8" | 3 5/32" | Brass | €115.64 |
