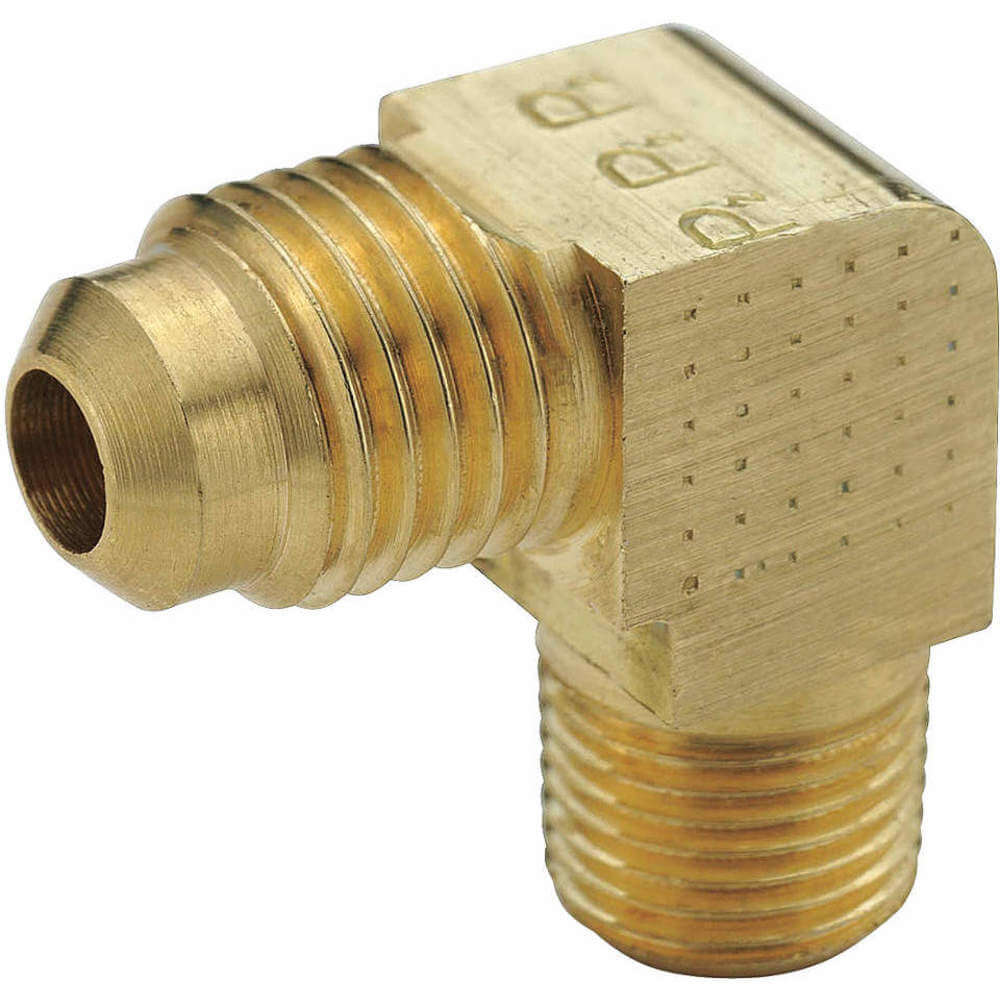

PARKER 249F-4-2 Extruded Male Elbow, 90 Degs, 1/4 Inch Outside Diameter, Brass
Item: AE7BUFModel: 249F-4-2Cross Ref: 5WRW8
7 In Stock
Ships within 2 days via
10.00% off
€53.61 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Extruded Male Elbow, 90 Degrees |
| Application | LP Gases, Natural Gases |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Brass |
| Body Shape | Forged |
| Compatible Tube Material | Aluminum, Brass, Copper, Steel |
| Configuration Sub-type | Male Elbow 90° |
| Configuration Type | Flare To Male |
| Connection Type | Flare x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Flared |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Fitting Thread Size | 7/16"-20 |
| Fitting Type | Flare |
| Flare Angle | 45° |
| Flare Thread Size | 7/16"-20 |
| Material | Brass |
| Max. Pressure | 1400 psi |
| Maximum Operating Pressure | 1400 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -65°F |
| O-ring Material | Fluorocarbon |
| Overall Length | 25/32" |
| Pipe Size | 1/8" |
| Sae Reference | SAE 010202 |
| Series | 45° FLARE Series |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Extruded Elbow Adapter |
| System Of Measurement | Inch |
| Temp. Range | -65°F to +250°F |
| Thread 1 Type | Fine |
| Thread 2 Size | 1/8" |
| Thread 2 Type | NPT |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 1.98 |
| Ship width (cm) | 5.08 |
| HS code | 7412200035 |
| Country of Origin | US |
Product Variants
| Model | Pipe Size | Tube Size | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Fitting Thread Size | Flare Thread Size | Max. Pressure | Overall Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 249f-4-4 | 1/4" | - | 1/4" | 1/4" | 7/16"-20 | 7/16"-20 | 1400 psi | 29/32" | 1 | €88.51 | |
| 249F-5-4 | 1/4" | 0.312" | 5/16" | 1/4" | 1/2"-20 | 1/2"-20 | 1200 psi | 15/16" | 1 | €132.17 | |
| 249F-6-8 | 1/2" | 3/8" | 3/8" | 1/2" | 5/8"-18 | 5/8"-18 | 1000 psi | 1 5/32" | 1 | €237.13 | |
| 249F-8-6 | 3/8" | - | 1/2" | 3/8" | 3/4"-16 | 3/4"-16 | 750 psi | 1 7/32" | 1 | €171.04 |
