PARKER 2202P-8-8 Pipe Fitting, 1/2 Inch Thread Size, Brass
Item: BT7AMHModel: 2202P-8-8Cross Ref: 60WH21
7 In Stock
Ships within 2 days via
10.00% off
€17.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Brass Pipe Fitting Kit |
| Application | Air, Non-Potable Water |
| Basic Fitting Shape | Elbow |
| Body Material | Brass |
| Class | Pipe Fittings |
| Configuration Sub-type | Steet Elbow 90° |
| Configuration Type | Pipe to Pipe |
| Connection Type | Female To Male Pipe |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 1/2" |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Male |
| Fitting Side B Nominal Pipe Size | 1/2" |
| Fitting Side B Type | NPT |
| Gender | Female x Male |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Low Lead Compliance Level | Not Compliant |
| Material | Brass |
| Material Grade | Grade C37700 |
| Max. Operating Temp. | 121 Deg C |
| Max. Operating Temp. | 121°C |
| Max. Steam Pressure | 1000 psi |
| Max. Working Pressure | 1000 psi |
| Maximum Operating Pressure | 1000 psi |
| Min. Operating Temp. | -53°C |
| Overall Length | 1 1/4" |
| Pipe Fitting Material | Brass |
| Pipe Size | 1/2" x 1/2" |
| Series | PIPE Series |
| Shape | 90° Extruded Elbow |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Extruded Street Elbow |
| System Of Measurement | Inch |
| Thread 1 Size | 1/2" |
| Thread 1 Type | NPT |
| Thread 2 Size | 1/2" |
| Type | Female Pipe To Male Pipe |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Pipe Size | Fitting Side A Nominal Pipe Size | Overall Length | Specific Fitting Shape | Application | Connection Type | Class | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

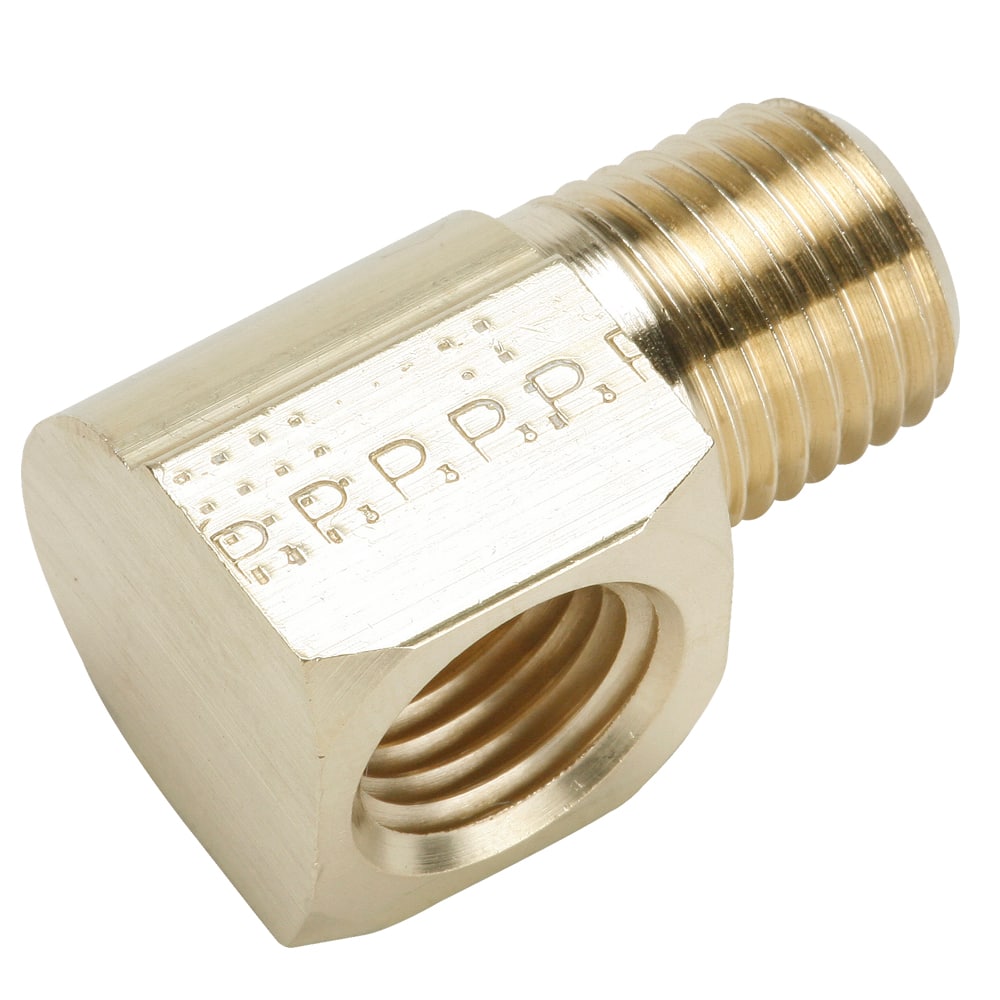

2202P-4-6 | 1/4" x 3/8" | 1/4" | 15/16" | Extruded Street Elbow | Air, Non-Potable Water | Female To Male Pipe | Pipe Fittings | Brass | €13.67 | |
|
2202P-12-12 | 3/4" x 3/4" | 3/4" | 1 3/8" | Extruded Street Elbow | Air, Non-Potable Water | Female To Male Pipe | Pipe Fittings | Brass | €33.53 | |
|
2202P-4-2 | 1/4" x 1/8" | 1/4" | 11/16" | Extruded Street Elbow | Air, Non-Potable Water | Female To Male Pipe | Pipe Fittings | Brass | €9.34 | |
 |
2202P-12-8 | 1/2" | 3/4" | 1 3/8" | 90° Extruded Street Elbow | Air, Non-Potable Water | - | - | Brass | €36.52 | |
 |
2202P-2-2 | - | - | - | - | - | - | - | - | €4.26 | |
 |

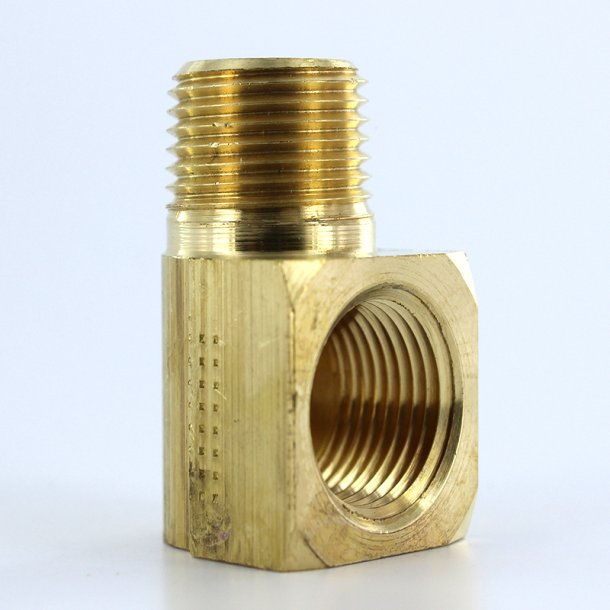

2202P-6-6 | - | - | - | - | - | - | - | - | €11.74 |
