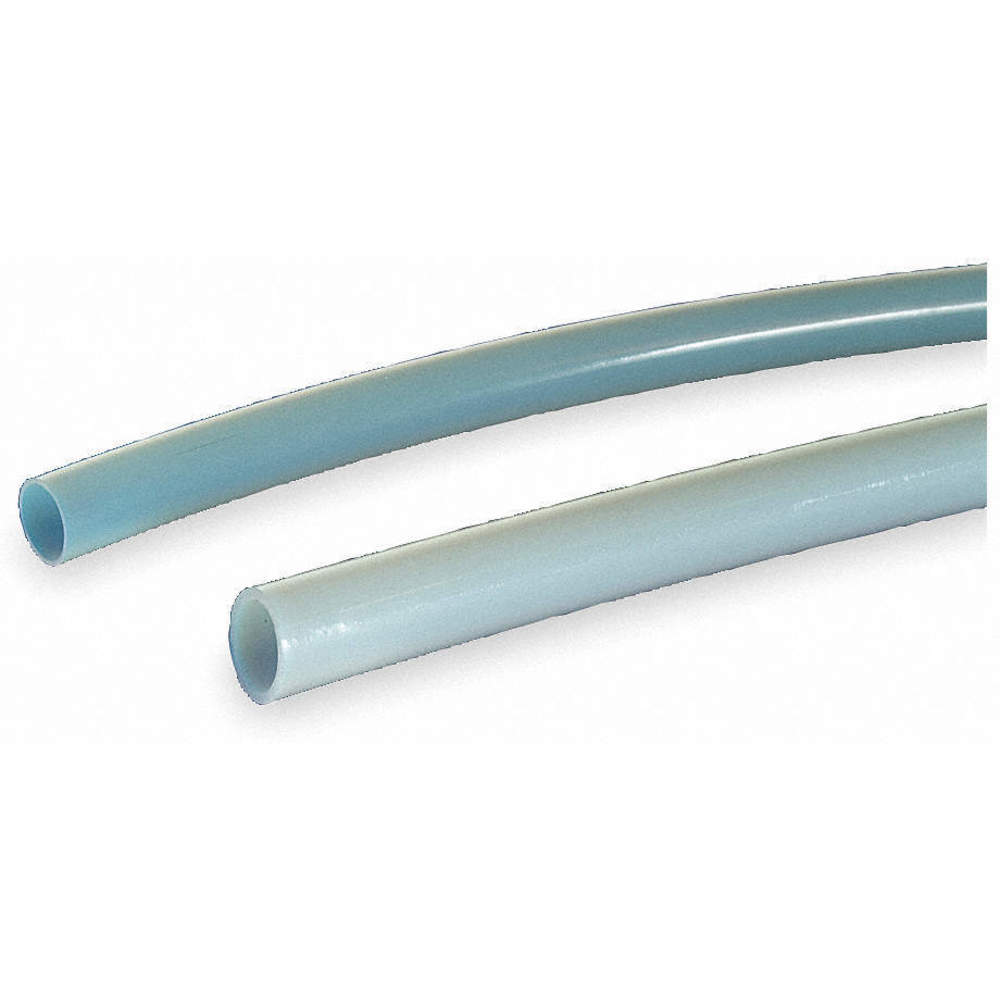

PARKER 201-0800100-NT-25 Tubing, Ptfe, Natural, 6 mm Inside Dia, 8 mm Outside Dia, 25 Ft Overall Length
Item: CT7LFXModel: 201-0800100-NT-25Cross Ref: 2VLW9
7 In Stock
Ships within 2 days via
5.00% off
€254.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Beverage, Chemical, Food, Water |
| Autoclavable | Yes |
| Bend Radius | 2" |
| Burst Pressure | 36 psi |
| Clarity | Semi Clear |
| Color | Natural |
| Compatible Chemicals | Acetone, Chlorine, Ether, Iodine, Nitric Acid 35%, Zinc Chloride |
| Compatible Tube Wall Thickness | 1 mm |
| Does Not Contain | Not Applicable |
| Elongation | 200% to 400% |
| End 1 Size | 8 mm |
| End 1 Type | NPT |
| End 2 Size | 8 mm |
| End 2 Type | NPT |
| Features | Laser Markable, Lowest Coefficient Of Friction, Non-Wetting, Self-Extinguishing |
| Fitting Compatibility | Compression, Push to Connect |
| Flexibility | Flexible |
| Food And Beverage Compatibility | Beer, Citric Acid, Dairy, Dextrose, Distilled Water, Fructose, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils And Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar |
| For Environment | Washdown |
| Hardness | Shore D 55 To 65 |
| Industry Application | Automotive, Chemical Processing, Food Service, Industrial, Insulation, Laboratory |
| Inside Dia. | 6 mm |
| Jacket Color | No Jacket |
| Length | 25 ft. |
| Material | Teflon |
| Material Trade Name | Not Applicable |
| Material Trade Number | Not Applicable |
| Max. Operating Pressure | 9 psi @ 73°F |
| Max. Operating Temp. | 500°F |
| Max. Pressure | 520 psi , 9 psi |
| Max. Vacuum Pressure | 28 in. hg |
| Min. Operating Temp. | -100°F |
| Outside Dia. | 4/5" , 8 mm |
| Overall Length | 25 ft. |
| Peristaltic Pump Compatible | No |
| Petroleum Product Compatibility | Kerosene, Mineral Oil |
| Pex Type | Not Applicable |
| Reinforcement | Not Reinforced |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Heat Resistant |
| Series | PTFE Series |
| Stripe Color | No Stripe |
| System Of Measurement | Metric |
| Tube Bend Radius | 2" |
| Tube Form | Straight |
| Vacuum | Yes |
| Wall Thickness | 1 mm |
| Weight Per Foot | 0.032 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 0.37 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Outside Dia. | Color | Inside Dia. | Wall Thickness | Hardness | Max. Operating Pressure | Burst Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
201-0300100-NT-25 | PTFE | 3" | Beige | 1 mm | 1 mm | Shore D 55 To 65 | 27 psi @ 73°F | 108 psi | €124.15 | |
|
201-0600100-NT-25 | Teflon | 6 mm | Natural | 4 mm | 1 mm | Shore D 55 To 65 | 12 psi @ 73°F | 50 psi | €199.30 | |
 |
201-1000100-NT-25 | Teflon | 1" | Natural | 8 mm | 0.039" | Shore D: 55 To 65 | 7 psi @ 73°F | 28 psi | €411.31 | |
 |
201-0500100-NT-25 | PTFE | 5 mm | Beige | 3 mm | 1 mm | Shore D 55 To 65 | 15 psi @ 73°F | 61 psi | €224.82 | |
 |
201-0900100-NT-25 | Teflon | 0.9" | Natural | 0.281 mm | 0.039" | Shore D 55 To 65 | 8 psi @ 73?F | 30 psi | €408.34 | |
|
201-0400100-NT-25 | Teflon | 2/5" | Natural | 2 mm | 1 mm | Shore D 55 To 65 | 20 psi @ 73?F | 80 psi | €113.84 | |
|
201-0700100-NT-25 | PTFE | 7 mm | Beige | 5 mm | 1 mm | Shore D 55 To 65 | 10 psi @ 73?F | 41 psi | €300.56 |
