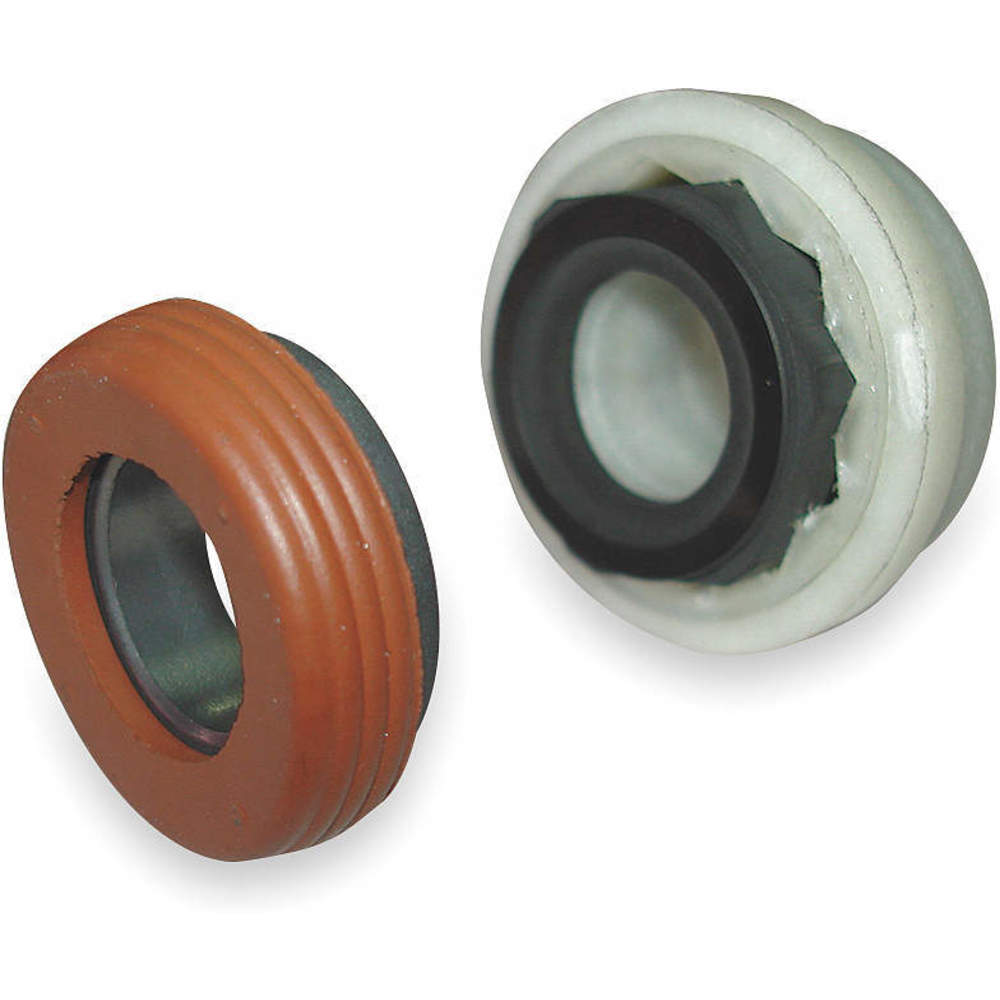

DAYTON 3ACF2 Shaft Seal 5/8 Inch Viton Silicon Carbide
Item: AC8HCGModel: 3ACF2
7 In Stock
Ships within 2 days via
10.00% off
€1,061.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Replacement Pump Shaft Seal |
| For Shaft Diameter | 5/8" |
| For Use With | Poly Pumps |
| Gasket Material | Silicon Carbide, Viton |
| Material Content Code | VXRXR |
| Max. Temp. | 180°F |
| Min. Temp. | -40°F |
| Nominal Working Length | 1" |
| Nominal Working Length (in.) | 1" |
| Nominal Working Length (in.) | 1 |
| Ring Material | Silicon Carbide |
| Seal Bore | 5/8" |
| Seal Bore (in.) | 5/8 |
| Seal Bore (in.) | 5/8" |
| Seal Material | Silicon Carbide, Viton |
| Seat Bore | 1 1/4" |
| Seat Thickness | 0.405" |
| Shaft Size | 5/8" |
| Shaft Size (in.) | 5/8" |
| Working Length | 1" |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 8484200000 |
| Country of Origin | IN |
Product Variants
| Product | Model | Gasket Material | Max. Temp. | Min. Temp. | Material Content Code | Ring Material | Shaft Size | Seat Thickness | Nominal Working Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

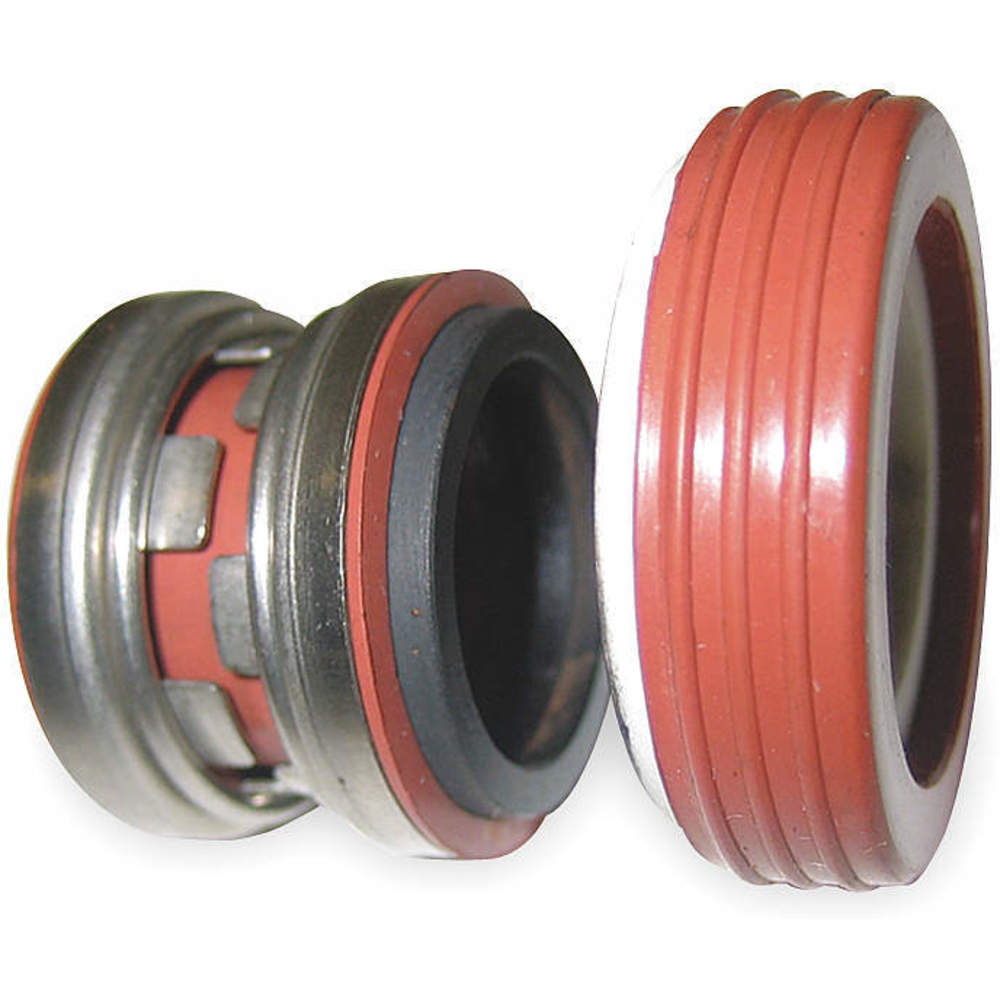

3ACE6 | Buna N, Carbon, Ceramic | 160°F | -25°F | BCRJR | Carbon | 5/8" | 0.405" | 1" | €64.11 | |
|
3ACE7 | Carbon, Ceramic, Viton | 250°F | -40°F | VCRJR | Carbon | 5/8" | 0.405" | 1" | €89.07 | |
 |

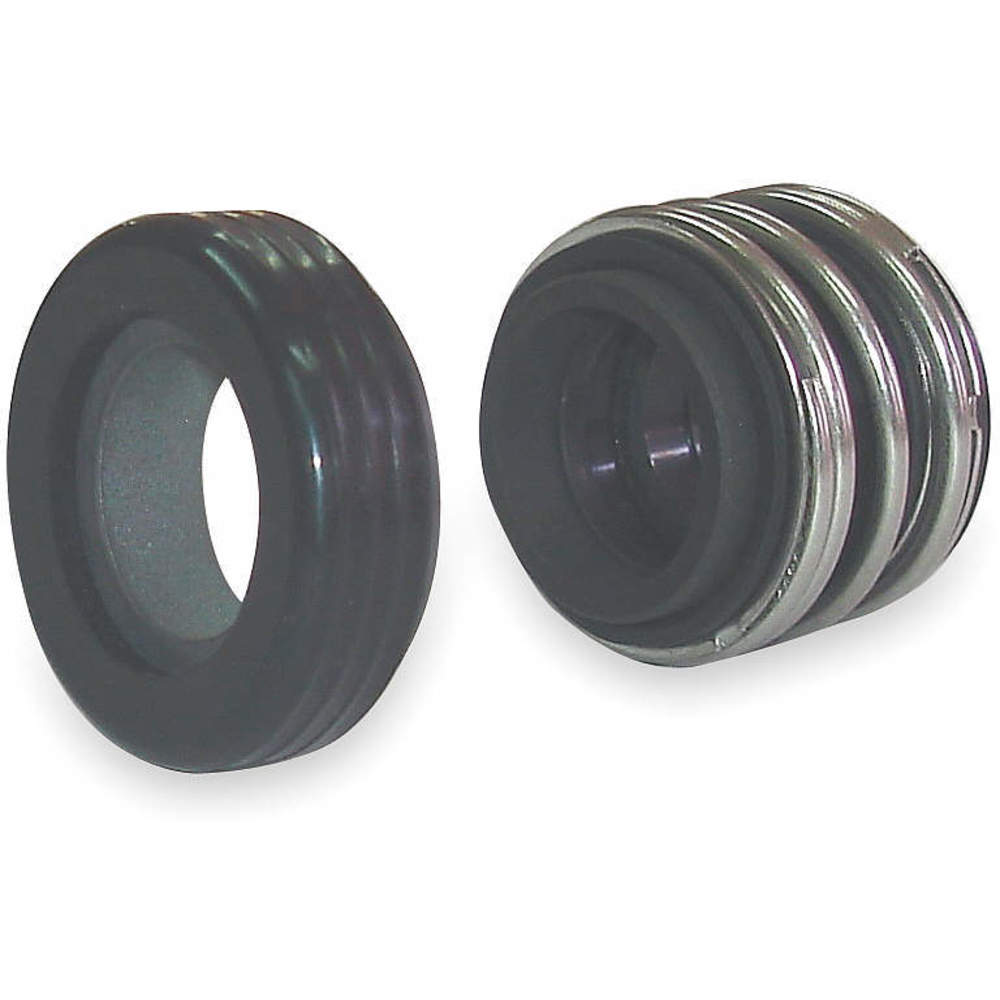

3ACE8 | Silicon Carbide, Viton | 250°F | -40°F | VXRXR | Silicon Carbide | 5/8" | 0.405" | 1" | €119.60 | |
 |

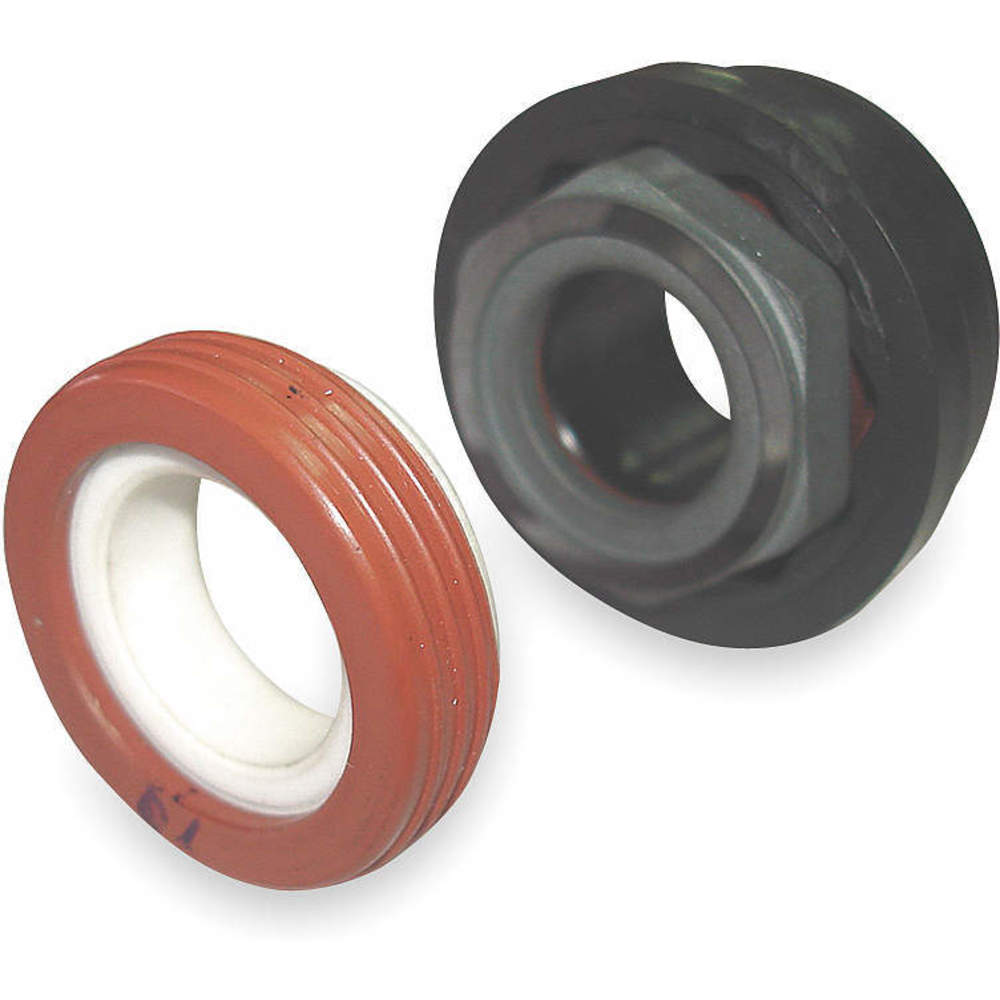

3ACE9 | Carbon, Ceramic, Viton | 180°F | -40°F | VCRJR | Carbon | 5/8" | 0.405" | 1" | €163.58 | |
 |

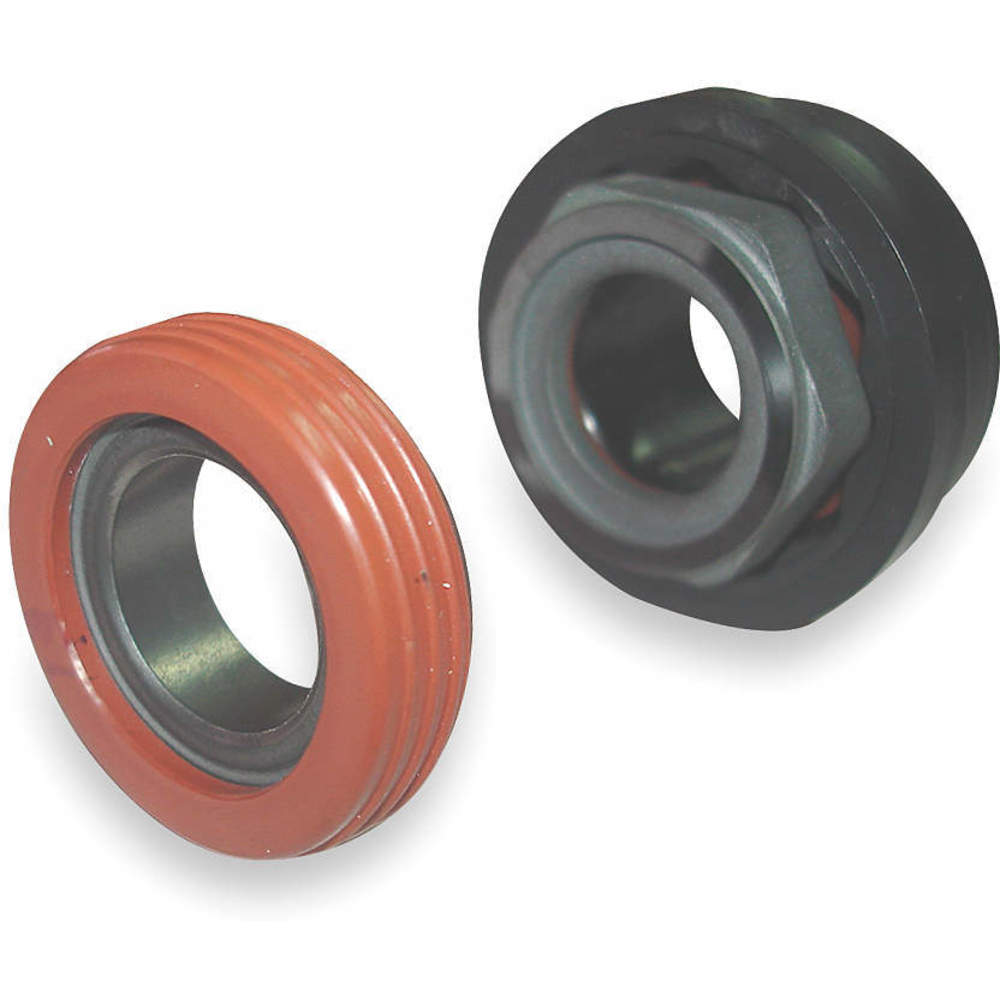

3ACF1 | Silicon Carbide, Viton | 180°F | -40°F | VXRXR | Silicon Carbide | 5/8" | 0.405" | 1" | €611.35 | |
 |

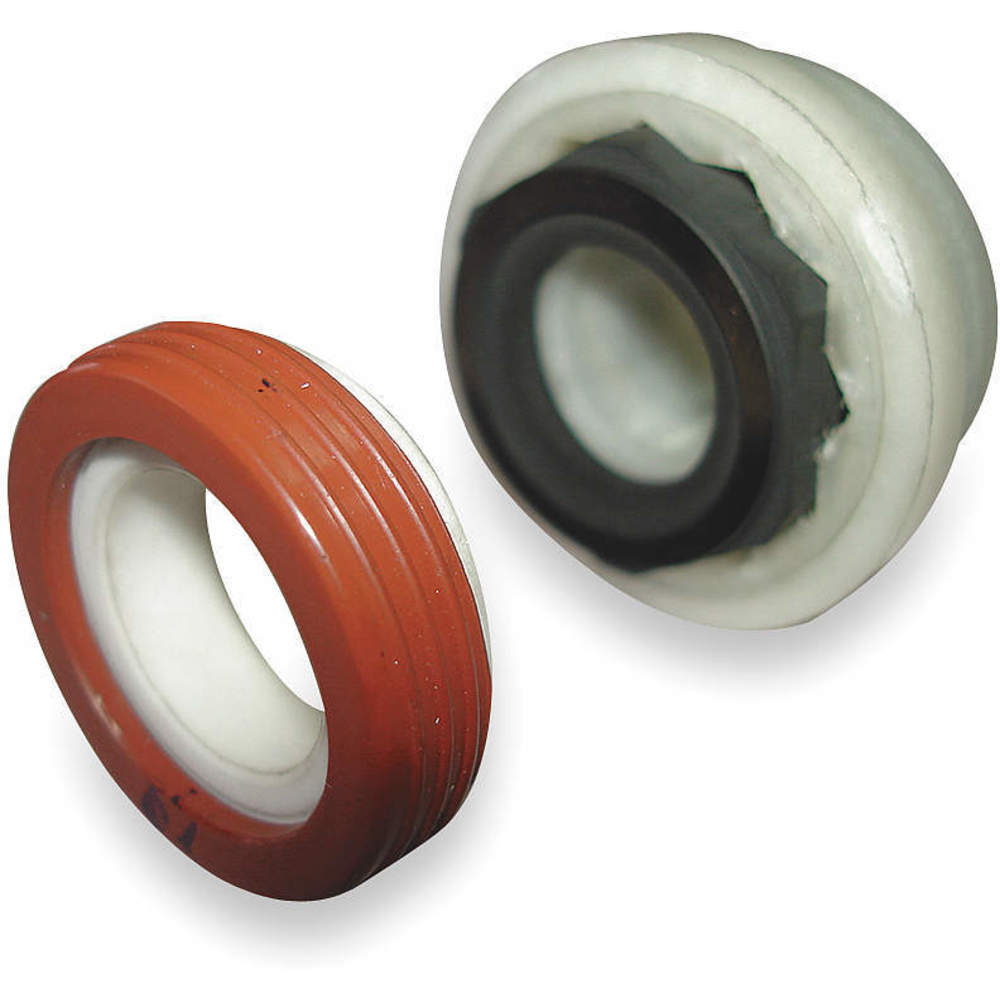

3ACF3 | Carbon, Ceramic, Viton | 180°F | -40°F | VCRJR | Carbon | 5/8" | 0.405" | 1" | €271.13 | |
 |

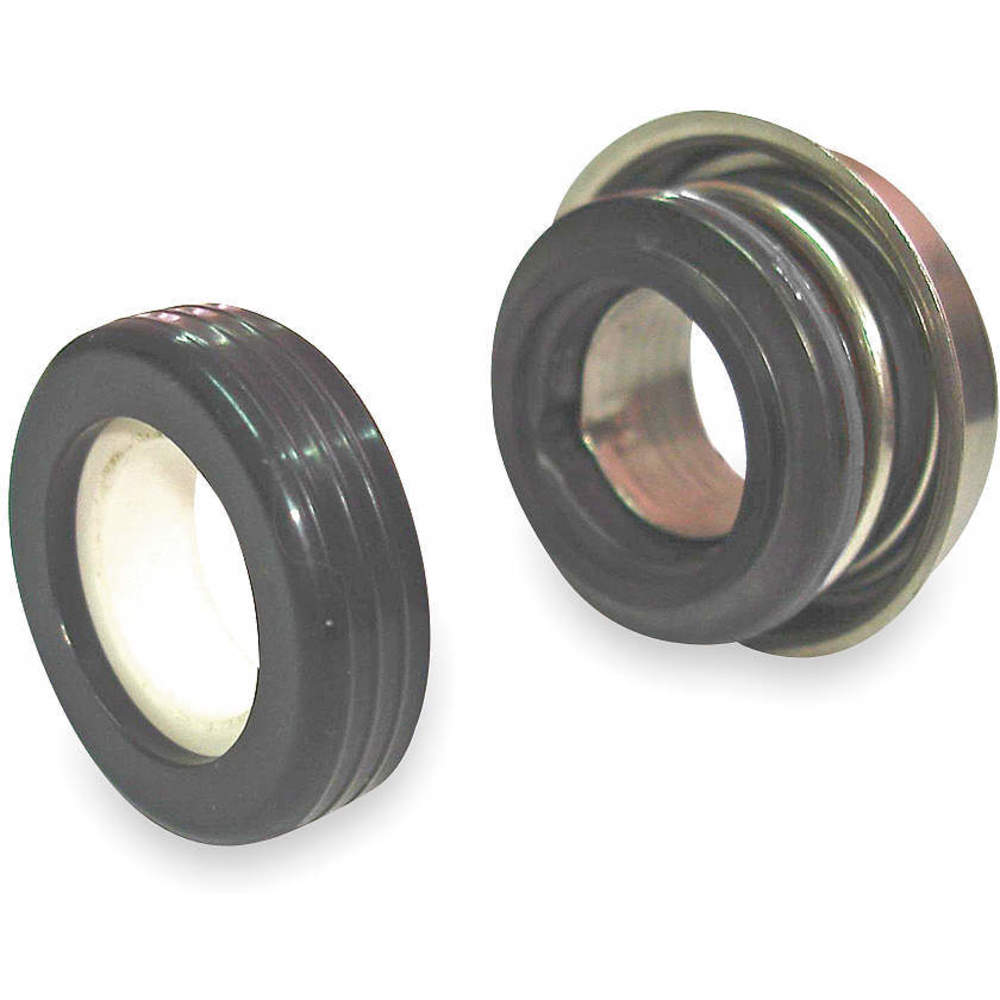

3ACF4 | Buna N, Carbon, Ceramic | 140°F | -25°F | BCRJR | Carbon | 5/8" | 0.405" | 1" | €44.31 |
