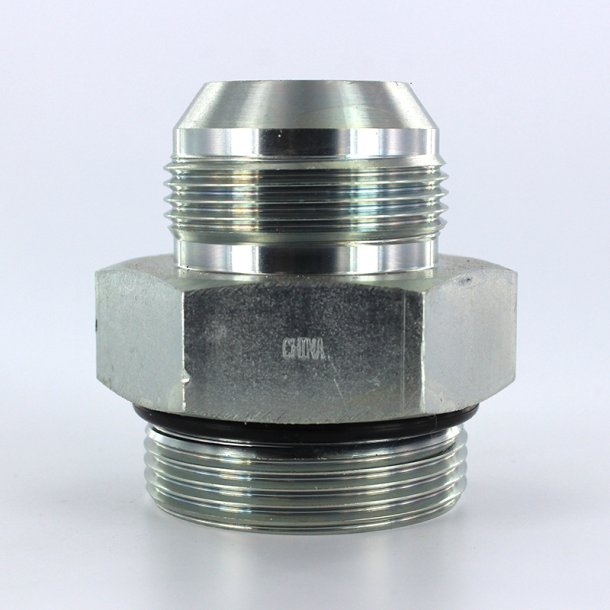

PARKER 20-24 F5OX-S Thread Connector, Straight, 1 1/4 Inch
Get it by Friday, Aug 14
€64.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Straight Thread Connector |
| Application Type | Hydraulic Fluid, Gas Handling Connections |
| Connection Type | 1 1/4" JIC 37° Male Flare 1 7/8" (1 7/8"-12, 1 7/8" X 12) UN/UNF 2A Male O-Ring Boss Seal (SAE ORB) Connection |
| Design | 2-1/8" Ext. Hexthreaded (JIC 37° Flare) Design#F5ox Model |
| Equivalent To | 2024F5OXS20-24-F5OX-S |
| Fitting Type | Straight Fitting |
| Function | Hydraulic Stud Fitting |
| Main Function | Hydraulic Fitting |
| Material | Steel , Steel Body 90 Durometer Nitrile Seals |
| Max. Dynamic Pressure | 3000 psi |
| Max. Pressure | 3000 psi |
| No. Of Inlet | 1 |
| No. Of Outlet | 1 |
| Product Datasheet | parker-10-aoex6-s.pdf |
| Size | 1 1/4" JIC x SAE Size 24 (1 7/8"-12) Male |
| Sub Range Name | Triple Lok Series |
| Temp. | -30°F to +250°F |
| Type | Triple Lok |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Dynamic Pressure | Equivalent To | Max. Pressure | Max. Working Pressure Dynamic | Max. Working Temp. | Temp. | No. Of Inlet | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10 F5OX-S | 5000 psi | 10F5OXS10-F5OX-S | 5000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €7.95 | |
 |
10 F5OX-SS | 6000 psi | 10F5OXSS10-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €96.46 | |
|
10-12 F5OX-S | 5000 psi | 1012F5OXS10-12-F5OX-S | 5000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €14.06 | |
|
10-16 F5OX-S | - | - | - | - | - | - | - | - | €27.98 | |
|
10-6 F5OX-S | 5000 psi | 106F5OXS10-6-F5OX-S | - | - | - | -30°F to +250°F | 1 | - | €15.48 | |
 |
10-8 F5OX-S | - | - | 5000 psi | - | - | - | - | Triple Lok | €8.23 | |
|
10-8 F5OX-SS | - | - | - | - | - | - | - | - | €148.90 |
