PARKER Triple-Lok F5OX 37 Degree Flare JIC Tube Fittings And Adapters
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y| Style | Model | Max. Dynamic Pressure | Equivalent To | Max. Pressure | Max. Working Pressure Dynamic | Max. Working Temp. | Temp. | No. Of Inlet | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 4-6 F5OX-S | - | - | - | 6000 | 500°F | - | - | - | €5.78 | |
| B | 24 F5OX-S | - | - | 3000 psi | - | - | - | - | Triple Lok | €49.39 | |
| C | 24-20 F5OX-S | - | - | 3500 psi | - | - | - | - | Triple Lok | €73.79 | |
| D | 24-32 F5OX-S | - | - | - | - | - | - | - | - | €222.10 | |
| E | 20 F5OX-SS | - | - | - | - | - | - | - | - | €298.39 | |
| F | 20 F5OX-S | - | - | 4000 psi | - | - | - | - | Triple Lok | €34.88 | |
| G | 4-2 F5OX-S | - | - | - | 7500 | 500°F | - | - | - | €24.52 | |
| H | 16-8 F5OX-S | - | - | - | - | - | - | - | - | €55.08 | |
| I | 4-5 F5OX-S | - | - | - | - | - | - | - | - | €7.36 | |
| E | 16-20 F5OX-SS | - | - | - | - | - | - | - | - | €487.64 | |
| G | 14-16 F5OX-S | - | - | - | - | - | - | - | - | €23.17 | |
| E | 4-5 F5OX-SS | - | - | - | - | - | - | - | - | €55.40 | |
| J | 4-8 F5OX-S | - | - | - | - | - | - | - | - | €10.09 | |
| E | 4-8 F5OX-SS | - | - | - | 7200 | 1200°F | - | - | - | €78.61 | |

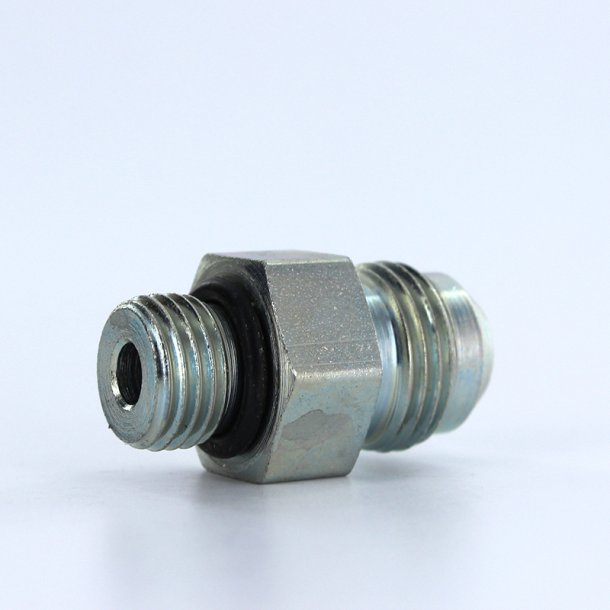

| K | 6-4 F5OX-S | - | - | 6000 psi | 6000 | 500°F | - | - | Triple Lok | €9.96 | |
| D | 6-4 F5OX-SS | - | - | - | - | - | - | - | - | €47.29 | |
| G | 12-16 F5OX-S | - | - | - | - | - | - | - | - | €19.53 | |
| L | 6-5 F5OX-S | - | - | 6000 psi | - | - | - | - | Triple Lok | €9.38 | |
| M | 16 F5OX-S | - | - | 4500 psi | - | - | - | - | Triple Lok | €16.70 | |
| D | 16 F5OX-SS | - | - | - | - | - | - | - | - | €203.22 | |
| D | 16-10 F5OX-S | - | - | - | - | - | - | - | - | €27.38 | |
| G | 10-8 F5OX-SS | - | - | - | - | - | - | - | - | €148.90 | |
| N | 10-8 F5OX-S | - | - | 5000 psi | - | - | - | - | Triple Lok | €8.23 | |
| D | 16-14 F5OX-S | - | - | - | - | - | - | - | - | €35.70 | |
| D | 10-16 F5OX-S | - | - | - | - | - | - | - | - | €27.98 | |
| E | 24 F5OX-SS | - | - | - | - | - | - | - | - | €485.09 | |
| D | 32-24 F5OX-S | 2000 psi | 3224F5OXS32-24-F5OX-S | - | - | - | -30°F to +250°F | 1 | - | €222.10 | |
| E | 32 F5OX-S | 2000 psi | 32F5OXS32-F5OX-S | - | 2000 | - | -30°F to +250°F | 1 | - | €157.80 | |
| O | 20-24 F5OX-S | 3000 psi | 2024F5OXS20-24-F5OX-S | 3000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €64.31 | |
| P | 16-24 F5OX-S | 3000 psi | 1624F5OXS16-24-F5OX-S | - | - | - | -30°F to +250°F | 1 | - | €143.99 | |
| E | 20-24 F5OX-SS | 3600 psi | 2024F5OXSS20-24-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €422.53 | |
| Q | 16-20 F5OX-S | 4000 psi | 1620F5OXS16-20-F5OX-S | 4000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €36.43 | |
| G | 20-16 F5OX-S | 4000 psi | 2016F5OXS20-16-F5OX-S | 4000 psi | 4000 | - | -30°F to +250°F | 1 | Triple Lok | €32.36 | |
| G | 12-20 F5OX-S | 4000 psi | 1220F5OXS12-20-F5OX-S | - | - | - | -30°F to +250°F | 1 | - | €46.29 | |
| E | 20-12 F5OX-S | 4000 psi | 2012F5OXS20-12-F5OX-S | - | - | - | -30°F to +250°F | 1 | - | €71.31 | |
| R | 8-16 F5OX-S | 4500 psi | 816F5OXS8-16-F5OX-S | - | - | - | -30°F to +250°F | 1 | - | €38.77 | |
| S | 16-12 F5OX-S | 4500 psi | 1612F5OXS16-12-F5OX-S | 4500 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €16.08 | |
| T | 12 F5OX-S | 5000 psi | 12F5OXS12-F5OX-S | 5000 psi | 5000 | 500°F | -30°F to +250°F | 1 | Triple Lok | €11.57 | |
| G | 6-12 F5OX-S | 5000 psi | 612F5OXS6-12-F5OX-S | 5000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €27.88 | |
| G | 12-14 F5OX-S | 5000 psi | 1214F5OXS12-14-F5OX-S | - | 5000 | 500°F | -30°F to +250°F | 1 | - | €22.54 | |

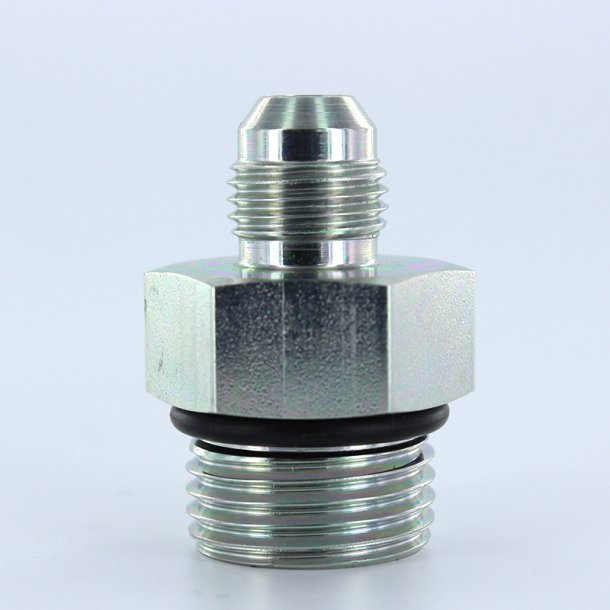

| U | 6-10 F5OX-S | 5000 psi | 610F5OXS6-10-F5OX-S | 5000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €8.62 | |
| G | 10 F5OX-S | 5000 psi | 10F5OXS10-F5OX-S | 5000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €7.95 | |
| G | 12-10 F5OX-S | 5000 psi | 1210F5OXS12-10-F5OX-S | 5000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €12.56 | |
| V | 8-10 F5OX-S | 5000 psi | 810F5OXS8-10-F5OX-S | 5000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €7.39 | |
| W | 8-12 F5OX-S | 5000 psi | 812F5OXS8-12-F5OX-S | 5000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €11.79 | |

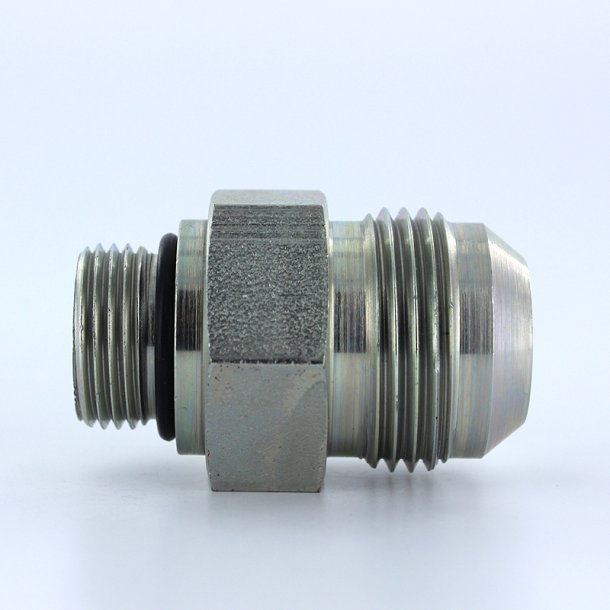

| X | 12-8 F5OX-S | 5000 psi | 128F5OXS12-8-F5OX-S | - | 5000 | 500°F | -30°F to +250°F | 1 | - | €13.23 | |
| G | 10-12 F5OX-S | 5000 psi | 1012F5OXS10-12-F5OX-S | 5000 psi | - | - | -30°F to +250°F | 1 | Triple Lok | €14.06 | |
| D | 14 F5OX-S | 5000 psi | 14F5OXS14-F5OX-S | - | - | - | -30°F to +250°F | 1 | - | €19.74 | |
| H | 4-10 F5OX-S | 5000 psi | 410F5OXS4-10-F5OX-S | - | - | - | -30°F to +250°F | 1 | - | €25.74 | |
| D | 10-6 F5OX-S | 5000 psi | 106F5OXS10-6-F5OX-S | - | - | - | -30°F to +250°F | 1 | - | €15.48 | |
| G | 12-16 F5OX-SS | 5400 psi | 1216F5OXSS12-16-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €285.87 | |
| D | 16-10 F5OX-SS | 5400 psi | 1610F5OXSS16-10-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €213.98 | |
| G | 16-12 F5OX-SS | 5400 psi | 1612F5OXSS16-12-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €324.00 | |
| D | 16-8 F5OX-SS | 5400 psi | 168F5OXSS16-8-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €258.91 | |
| D | 8-16 F5OX-SS | 5400 psi | 816F5OXSS8-16-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €358.04 | |
| D | 8-12 F5OX-SS | 6000 psi | 812F5OXSS8-12-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €120.12 | |
| D | 10 F5OX-SS | 6000 psi | 10F5OXSS10-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €96.46 | |
| D | 12-10 F5OX-SS | 6000 psi | 1210F5OXSS12-10-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €210.14 | |
| H | 8-4 F5OX-S | 6000 psi | 84F5OXS8-4-F5OX-S | - | - | - | -30°F to +250°F | 1 | - | €41.17 | |
| Y | 8-6 F5OX-S | 6000 psi | 86F5OXS8-6-F5OX-S | 6000 psi | 6000 | 500°F | -30°F to +250°F | 1 | Triple Lok | €7.53 | |
| G | 12 F5OX-SS | 6000 psi | 12F5OXSS12-F5OX-SS | - | - | - | -30°F to +250°F | 1 | - | €122.67 |
