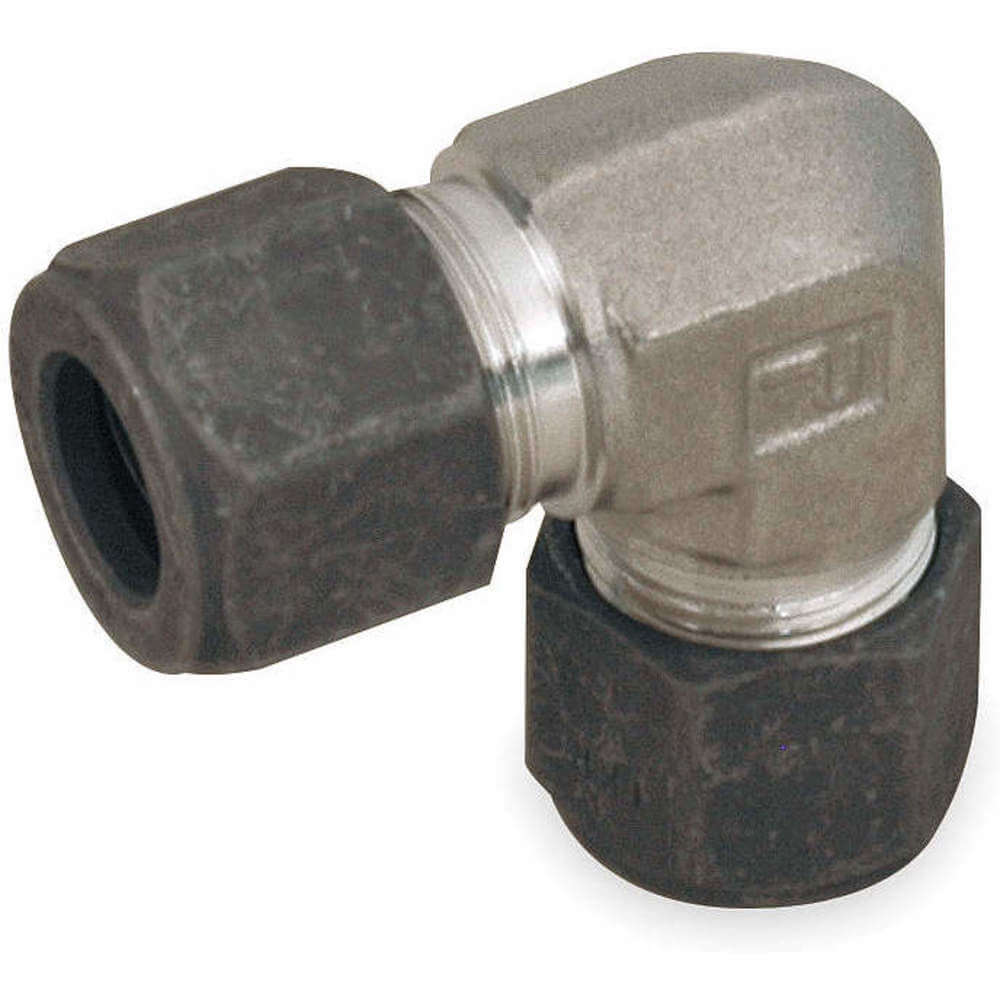

PARKER 2-2 EBZ-SS Union Elbow, 1/8 Inch Outside Diameter, SS
Item: AE6QQHModel: 2-2 EBZ-SSCross Ref: 5UNG4
7 In Stock
1/8"
Ships within 2 days via
10.00% off
€75.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Gases, Liquids |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Stainless Steel |
| Compatible Fitting Brands | CPI |
| Compatible Tube Material | Stainless Steel |
| Configuration Sub-type | Union Flareless |
| Configuration Type | 90° Elbow |
| Connection Type | CPI |
| End 2 Type | Inch |
| Ferrule Type | Single |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/8" |
| Hex Size | 3/8" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 10000 psi |
| Maximum Operating Temperature | 1200°F |
| Minimum Operating Temperature | 425°F |
| Overall Length | 7/8" |
| Product Datasheet | parker-2-2-ebz-ss.pdf |
| Resistance Properties | Corrosion Resistant, Vibration-Resistant |
| Series | CPI Series |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow |
| Specific Pipe Fitting Shape | Elbow Union |
| System Of Measurement | Imperial |
| Temp. Range | -425°F to +1200°F |
| Thread Size A | 5/16"-20 |
| Thread Size B | 5/16"-20 |
| Tube Fitting Material | Stainless Steel |
| Tube Fitting/adapter Type | Bite Type, CPI Single Ferrule Flareless |
| Tube Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.95 |
| Ship length (cm) | 2.22 |
| Ship width (cm) | 0.95 |
| HS code | 7307225000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Hex Size | Max. Pressure | Fitting Side A Tube Outer Diameter | Thread Size B | Fitting Side B Tube Outer Diameter | Thread Size A | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-4 EBZ-SS | 1/4" | 1/2" | 75 psi | 1/4" | 7/16"-20 | 1/4" | 7/16"-20 | 1 1/16" | €68.68 | |
|
6-6 EBZ-SS | 3/8" | 5/8" | - | 3/8" | 9/16"-20 | 3/8" | 9/16"-20 | 1 3/16" | €81.94 | |
|
8-8 EBZ-SS | 1/2" | 13/16" | 6600 psi | 1/2" | 3/4"-20 | 1/2" | 3/4"-20 | 1 7/16" | €130.15 | |
 |
10-10 EBZ-SS | 5/8" | 15/16" | - | 5/8" | 7/8"-20 | 5/8" | 7/8"-20 | 1 1/2" | €203.94 | |
|
12-12 EBZ-SS | 3/4" | 1 1/16" | - | 3/4" | 1-20 | 3/4" | 1-20 | 1 9/16" | €294.22 | |
 |

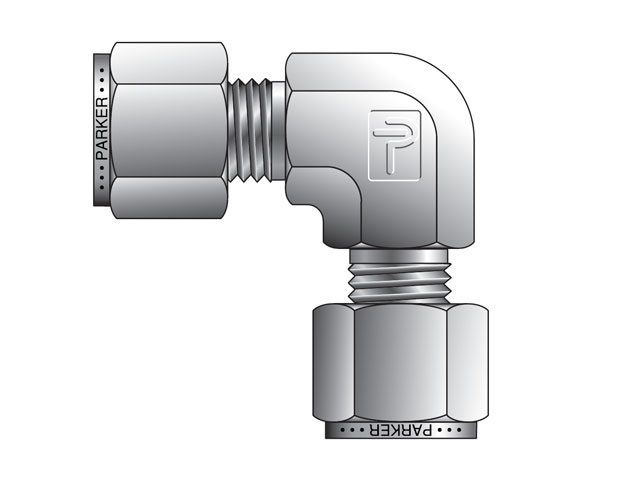

16-16 EBZ-SS | - | - | - | - | - | - | - | - | €271.81 | |
 |
32-32 EBZ-SS | - | - | - | - | - | - | - | - | €1,000.60 |
