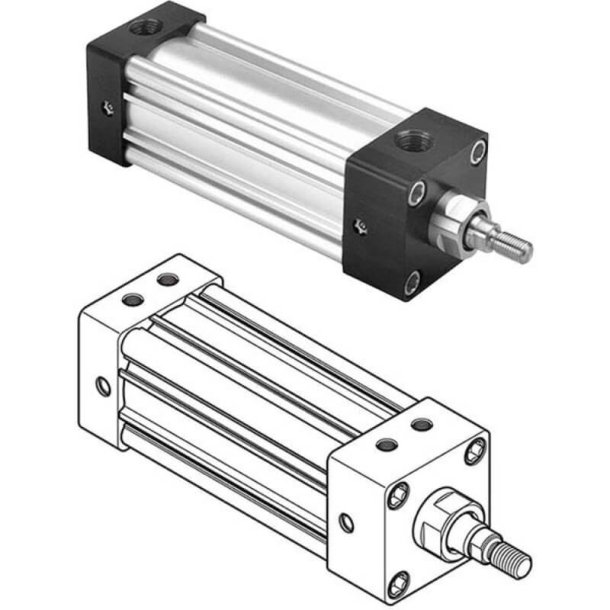

PARKER 2.00TE4MA2UE14AC04.00 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€376.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +250°F |
| Ambient Air Temp. For Operation | -10°F to +250°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Small Threaded Rod-End |
| Design | "Lipseal" Piston Fluorocarbon Rod Wiper And Rod Seals Small Male Rod-End Thread Cushion At Cap End Only Nfpa Interchangeable Model Repairable |
| Dia. | 5/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Fluoro Carbon Rod Wiper And Seals Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Sleeve Nut Mounting (NFPA MX5) |
| Mounting Mode | Sleeve Nut Mounting (NFPA MX5) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Mounting | Rod End Thread | Rod End Style | Piston No. | Max. Air Service Pressure | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2.00CJ4MA2U34AC15.50 | 15 1/2" | 1" | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | 250 psig | 2" | €643.97 | |
 |
2.00CBB4MA1U14AC09.00 | 9" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | 250 psig | 2" | €478.28 | |
 |
2.00CF4MA2U19AC14.00 | 14" | 5/8" | Side Tap Mounting (NFPA MS4) | 7/16"-20 | Female, Short | 1 | - | 2" | €480.84 | |
 |
2.00CT4MA2U14AC08.00 | 8" | 5/8" | No Mount (NFPA MX0) | - | - | - | 250 psig | 2" | €425.67 | |
 |
2.00F4MA1U14A21.00 | 21" | 5/8" | Side Tap Mounting (NFPA MS4) | - | - | - | 250 psig | 2" | €457.61 | |
 |
2.00BB4MA2U34AC08.00 | 8" | 1" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | 250 psig | 2" | €486.89 | |
 |
2.00CBB4MA2U14AC09.00 | 9" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | 250 psig | 2" | €478.28 |
